Hardware Fittings CE-CA-NBR MB1 MG1/109 Series Fit 12 16 18 19 20 22 24 25-40mm Mechanical Shaft Seal Single Spring for Water Pump Mechanical Seal(12mm)
4.4 (117 items)
Limited Time Sale$19.87 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210140964 | Release Date | 2026/04/02 | List Price | $13.25 | Model Number | 210140964 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

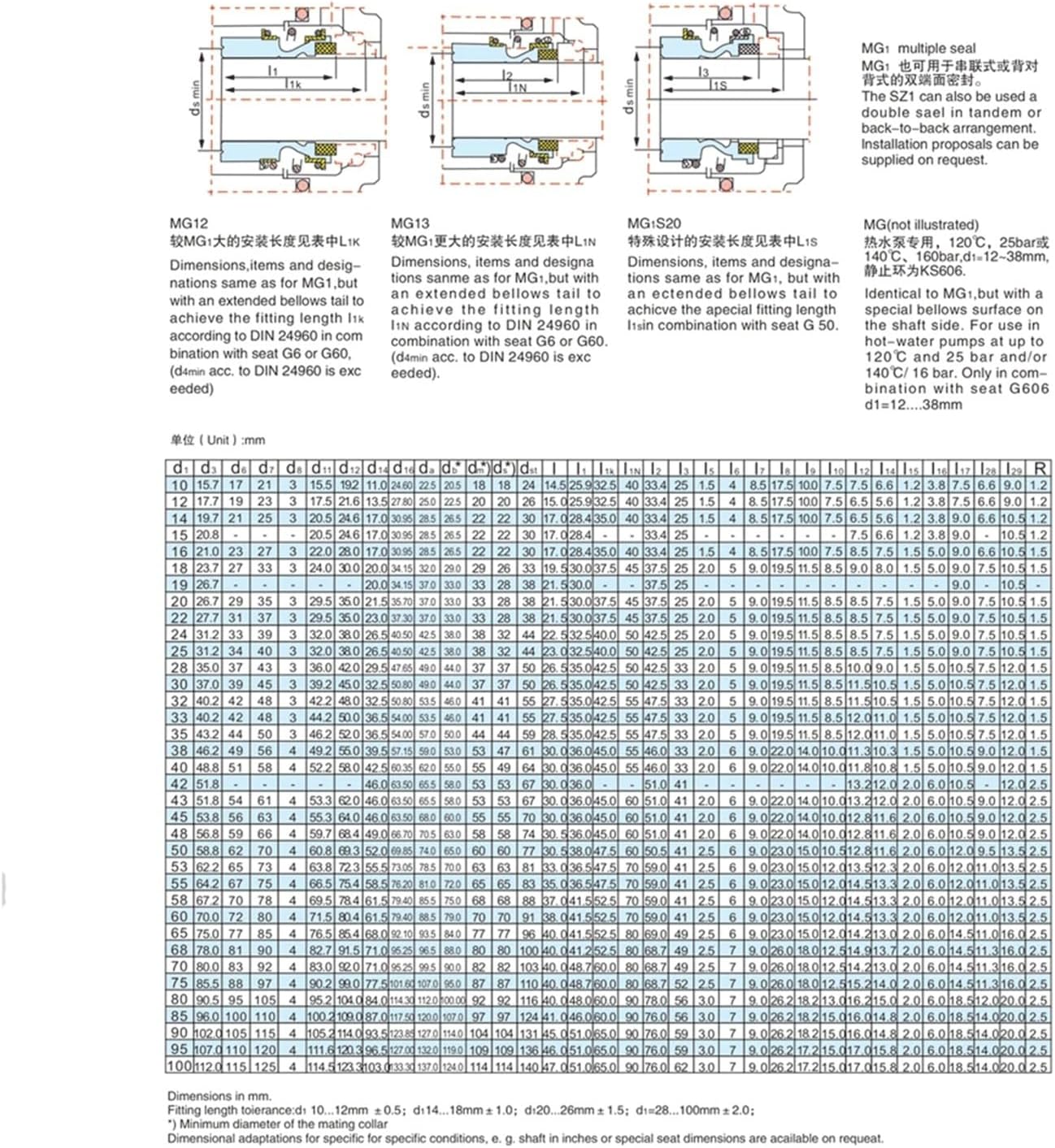

oil sealMaterial:Stationary Ring-Rotary Ring-Secondary SealCE-CA-NBR:Ceramic(CE)-Carbon(C)-NBRMaterial Of Spring:304 Stainless steelNBR Opreating Temperature: -20°C~+100°CFKM Opreating Temperature: -30°C~+180°COpreating Pressure: 1.2MPa Speed: 10m/s Introduction:Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions as seal face carrier secondary sealing element and drive collar. The seal face is driven through the spring and "L"-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications.==========Standard or Nonstandard : StandardShape : Ring GasketMaterial : RUBBERCertification : None
- oil seal
- CE-CA-NBR:Ceramic(CE)-Carbon(C)-NBR
- Material Of Spring:304 Stainless steel
- NBR Opreating Temperature: -20°C~+100°C
- FKM Opreating Temperature: -30°C~+180°C
- Opreating Pressure: 1.2MPa
| Color | Ce-ca-nbr 109 |
|---|---|
| Model | PSQQPDMEK |
| Brand Name | PSQQPDMEK |
| Part Number | PSQQPDMEK |
| Manufacturer | PSQQPDMEK |
