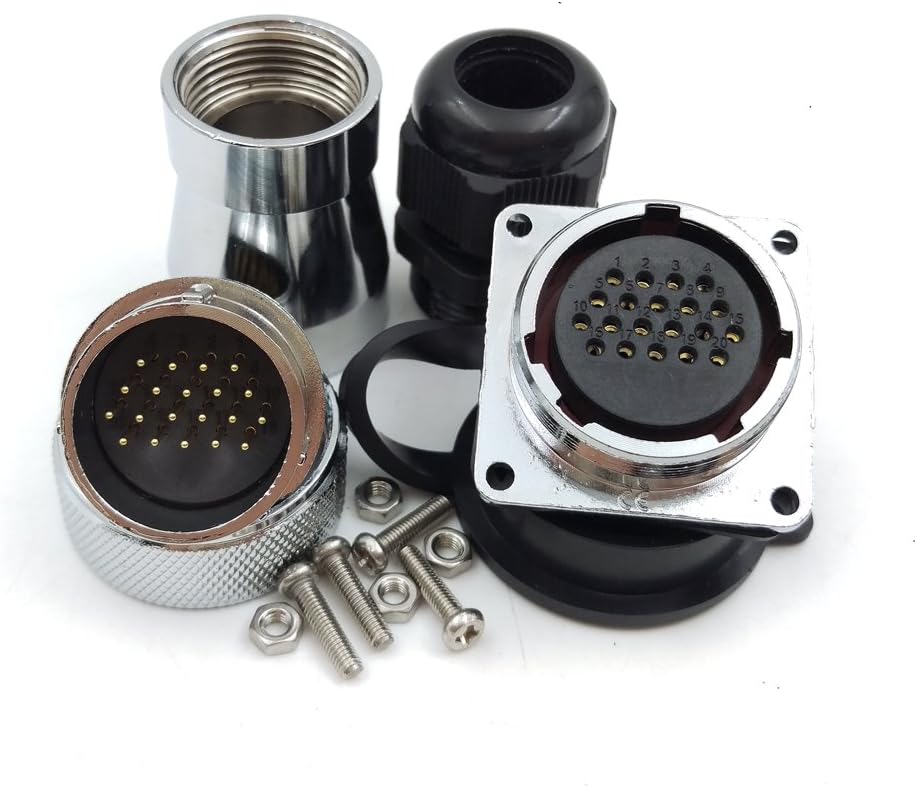

WF28 Serie 20pin Waterproof Connector, IP67 Electrical Male Female Plug Socket, LED 20 pin Waterproof Bulkhead Power Cable Connector(20PIN, 2SET)
4.1 (140 items)
Limited Time Sale$21.54 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210288684 | Release Date | 2026/04/02 | List Price | $14.36 | Model Number | 210288684 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product name: WF28 20pin heavy industrial metal power connector Contact: φ1.0mm*20(Gold plated copper) Rated current: 5A Working voltage: 400V Test voltage: 1500V Contact resistance: 5mΩ Insulation resistance: 2000mΩ Wire: <0.8MM/ AWG18-20 Cable: 10-14mm IP rating: Plug: IP20, socket: IP67 Mating cycle: 500times Temperature range: -25~+65°C Shell material: zinc alloy Pin number availalble:5/7/10/12/16/17/20/24/26 pin Connector whole size: 4.1*1.3inch / 104*33.8mm
- WF28 20pin high voltage heavy industrial power connector, φ28mm panel cut
- Contact: φ1.0mm*20(Gold plated copper), 5A / 400V, Contact resistance: 5 Milliohm
- Wire: <0.8MM= AWG18-24, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm

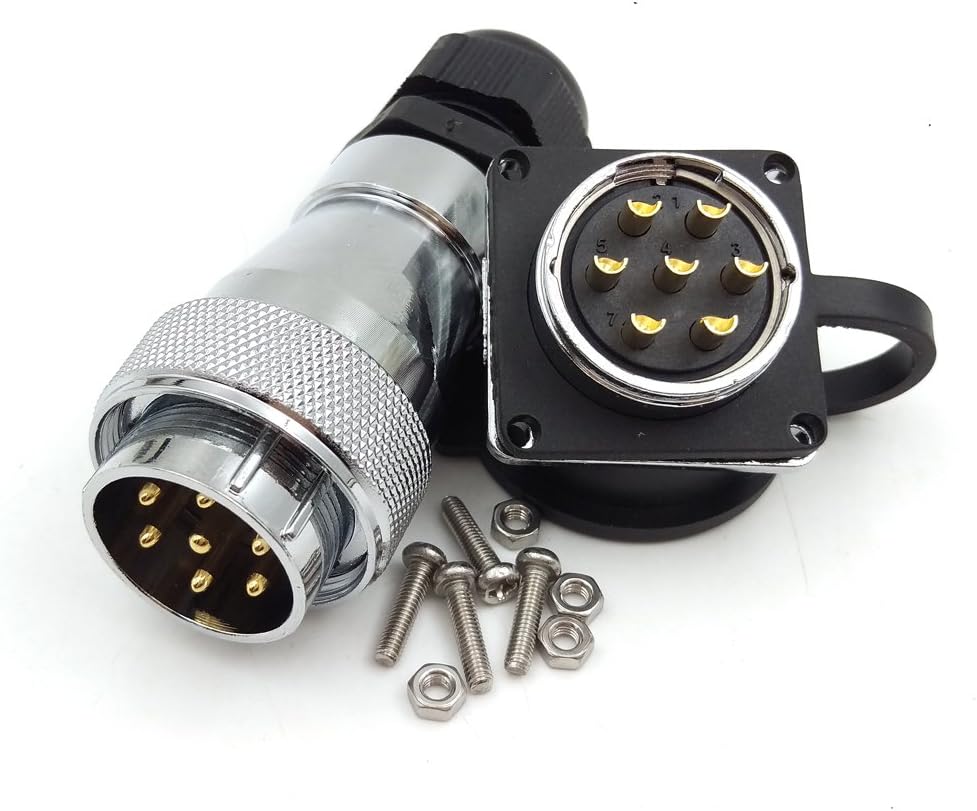

- Pin number available: 5/7/10/12/16/17/20/24/26pin, Plug: IP20, socket: IP67
- Professional and trusted power connector wholesale and retail supplier.
| Manufacturer | HL-010XT |
|---|---|
| Is Discontinued By Manufacturer | No |
Plugs
