ELING 85mm Truck Vessels GPS Speedo Gauge 0-60MPH Speedometer Odometer with Fuel Level 240-33ohm Voltmeter 12V

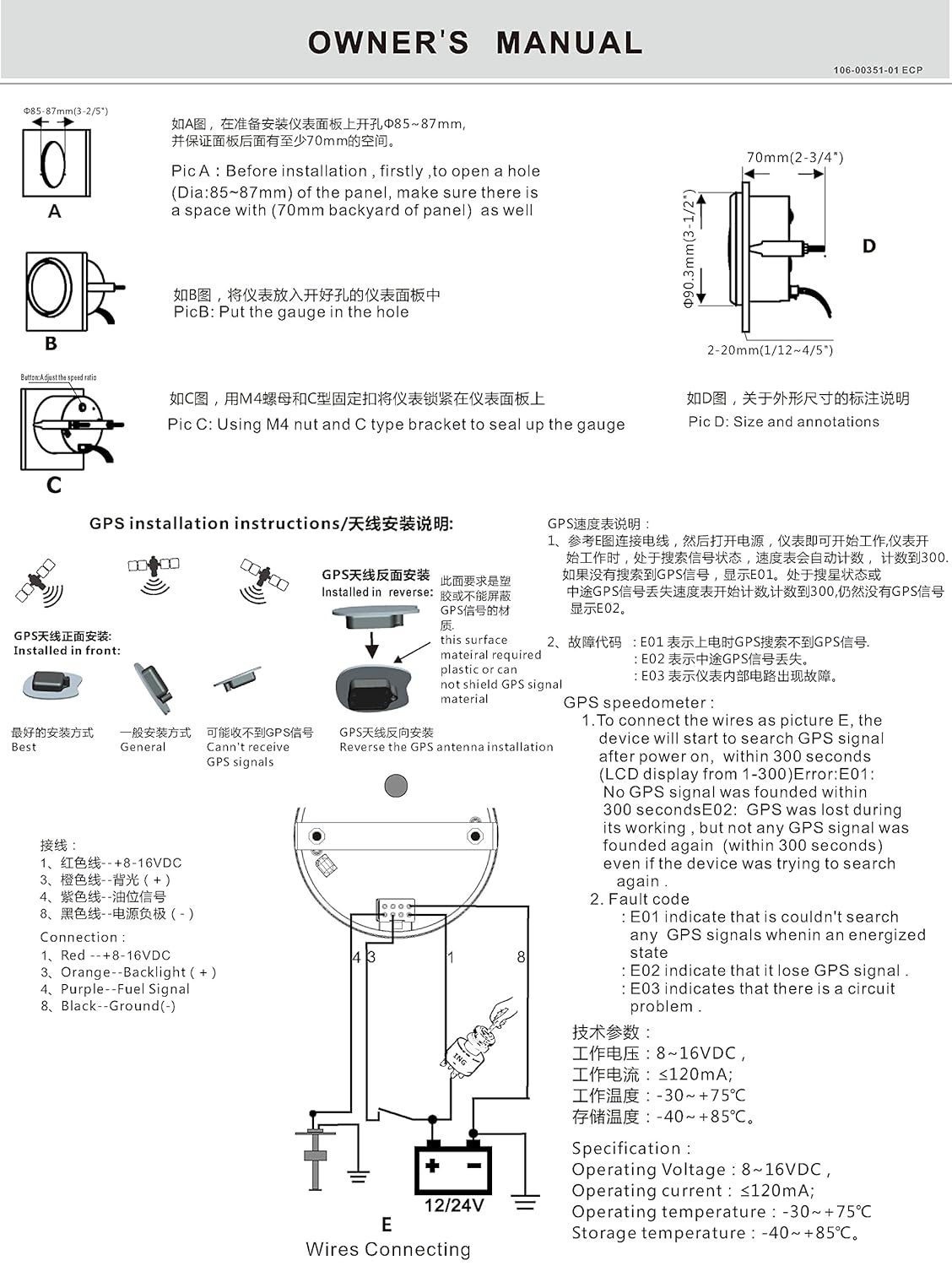

Features: -Suitable for all kinds of cars, boats, motorcycles-With instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on-Using a stepper motor drive pointer, accurate display of the driving speed, fuel level, voltage. Specifications: -Name: 3 in 1 Multi-function gauge-Operating Voltage: 12V -Indicating range: GPS speedometer: 0-60MPHFuel level: E-1/2-FVoltmeter: 8-16V-Input signal: GPS speedometer: GPS signal, with GPS antennaFuel level: 240-33ohm-Protection Class: IP67, can work underwater 1meter position-Sensors need to be purchased separatelyPackage Includes: 1 x 3 in 1 Multi-function Gauge 1 x GPS Antenna1 x Multi-plug socket1 x Installation InstructionInstructions: Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.Notes: Due to the manual measurement, there might be some error.

• Installation Dimension: 85mm
• Indicating Range: GPS Speedometer: 0-60MPH; fuel level meter: E-1/2-F; voltmeter: 8-16V
• Signal of speedometer: GPS signal, with GPS antenna; Signal of fuel level meter: 240-33ohm; Signal of voltmeter: 8-16V
• Connection:Red--Battery(+8-16VDC); Orange--Backlight(+); Purple--Fuel signal; Black--Ground(-)
• Red Backlight, 100% waterproof and anti-fogging protection.
