0-10 KPa Micro Differential Pressure Gauge High Color Panel Round Type Pointer Instrument Micromanometer

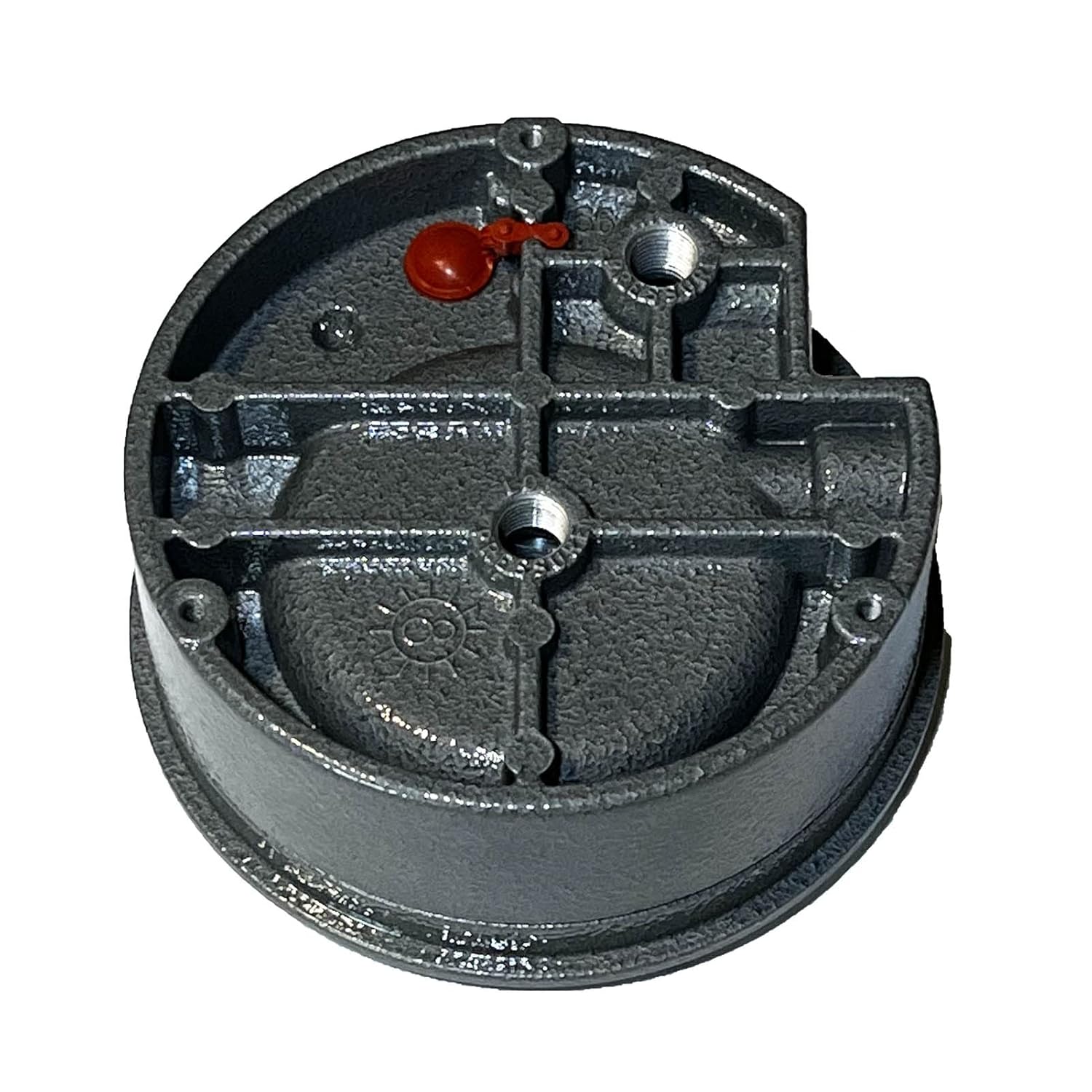

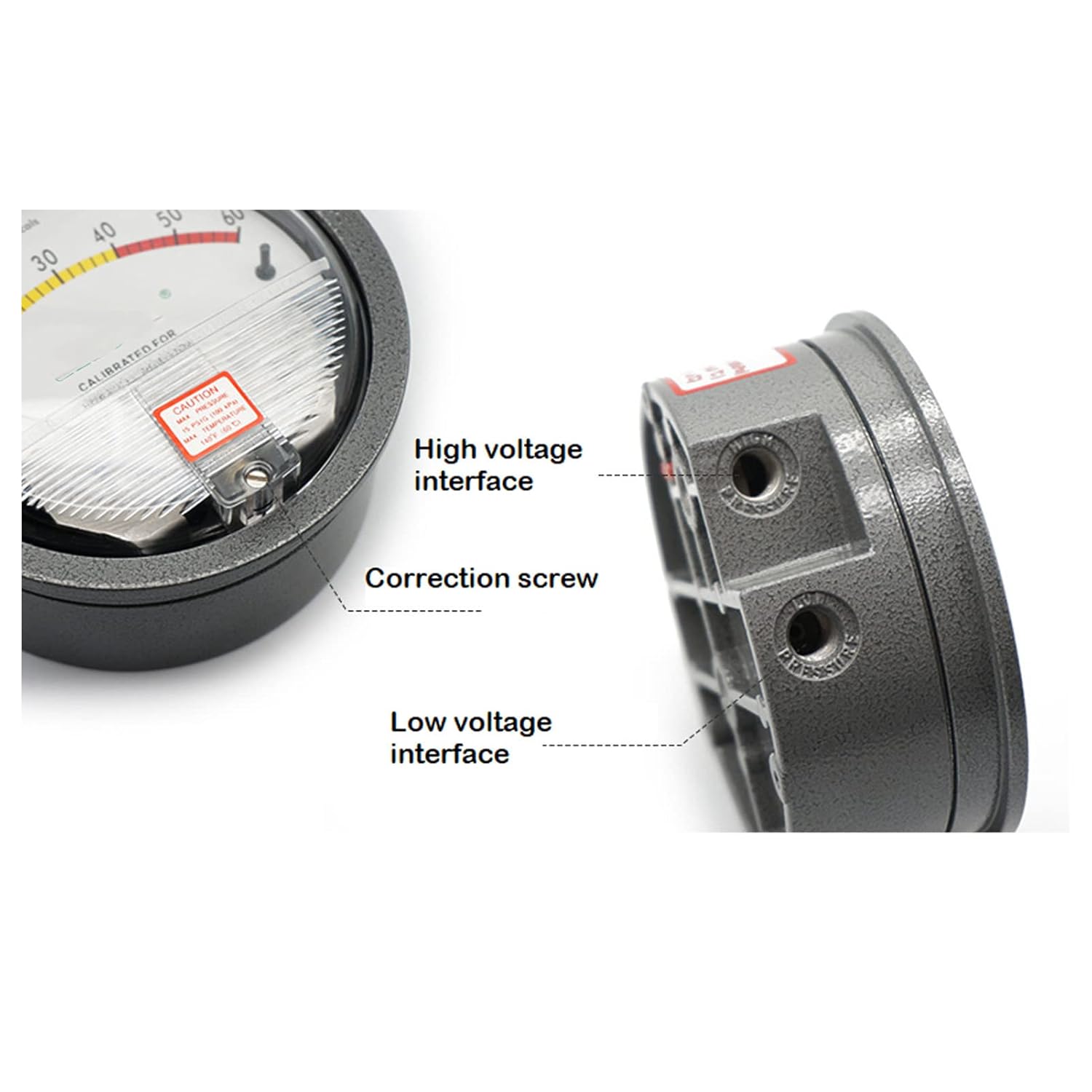

Rated Pressure: -68 ~ 103KPa. Material: Cast aluminum film. Dimensions: 4- 3/4" dia(120mm)x 2-3/16" deep(55mm). Package Size:163*150*77mm. Package Weight: 560g. Colour: Baked dark gray enamel. Accuracy: ±2% of full scale, at 70℉(21.1°C). Pressure Rating: 15PSI (1.03bar). Amibient Temperature Range:20°~140°F(-6~60°C). Connections: 1/8" female NPT high and low pressure taps, duplicated, one pair side and one pair back. Standard Accessories: Include two 1/8" male NPT plugs for duplicate pressure taps, two 1/8" male NPT pipe thread to rubber tubing adapters, and three flush mounting adapters with screws.

• 1. Virtually eliminating the friction generated by the rotation gear
• 2. The inner table without filling liquid. No inertia, no drift pointer movement.
• 3. Excellent anti-vibration, anti-jitter performance.
• 4. Excellent resistance to pressure overload, measurable, positive, negative or differential pressure.
• 5.Free and Flexible installation.
• 6. Has a simple structure, small size, low power consumption and high precision, suitable for almost all application areas.
• 7. The instrument using a larger pressure by explosion-proof membrane and diaphragm connected overvoltage protection.
