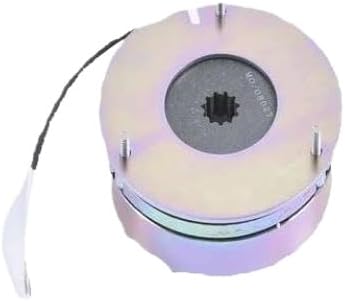

24V Brake Kit 7024772 Compatible with JLG 1930ES 2630ES 2032ES 2646ES 3246ES Scissor Lift

This 24V brake kit ( 7024772) is compatible with select JLG scissor lift models.It is intended as a replacement component for the following models and serial number ranges: - JLG 1930ES: SN 0200135154 to 0200152825, SN M200000100 and later, SN 0200198014 to 0200239382, SN B200020297 and later, SN 020015285 to 0200198014, SN 0200239382 and later - JLG 2630ES: SN 020015285 to 0200198014, SN 0200198014 to 0200239382, SN 0200135154 to 0200152825 - JLG 2032ES: SN 0200239382 and later, SN M200000100 and later, SN B200020297 and later - JLG 2646ES: SN 0200239382 and later, SN M200000100 and later, SN 020015285 to 0200198014, SN 0200198014 to 0200239382, SN 0200135154 to 0200152825, SN B200020297 and later - JLG 3246ES: SN B200020297 and later, SN 0200135154 to 0200152825, SN 0200198014 to 0200239382, SN 020015285 to 0200198014, SN 0200239382 and later - JLG 2030ES: SN 0200135154 to 0200152825, SN 020015285 to 0200198014, SN 0200198014 to 0200239382 - JLG 2632ES: SN B200020297 and later, SN M200000100 and later, SN 0200239382 and later - JLG 1230ES Installation instructions: Disconnect the power supply.Locate the existing brake assembly on the drive motor.Remove fasteners and detach the old brake.Position the brake assembly onto the drive motor.Secure with appropriate fasteners.Reconnect electrical wiring with correct polarity.Restore power and test brake function in accordance with the manufacturer's service manual.

• Compatible with JLG 1930ES, 2630ES, 2032ES, 2646ES, and 3246ES scissor lift models for accurate fitment and performance.24V brake system designed for industrial scissor lift applications requiring consistent stopping power.Replacement 7024772 to support routine maintenance and reduce downtime.Built with components to withstand work environments and long-term.Designed for straightforward installation and integration into existing electrical systems for service and repair use.
