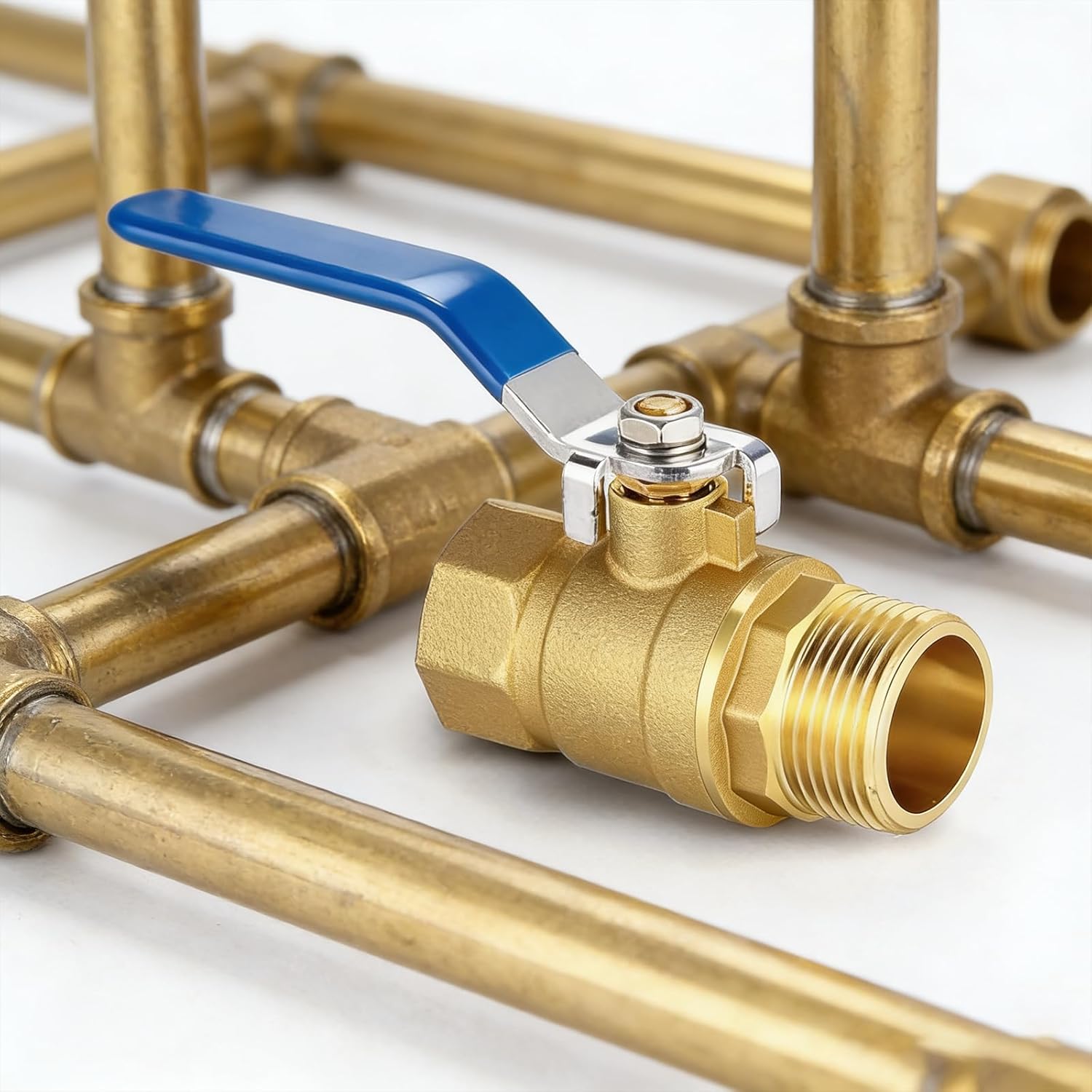

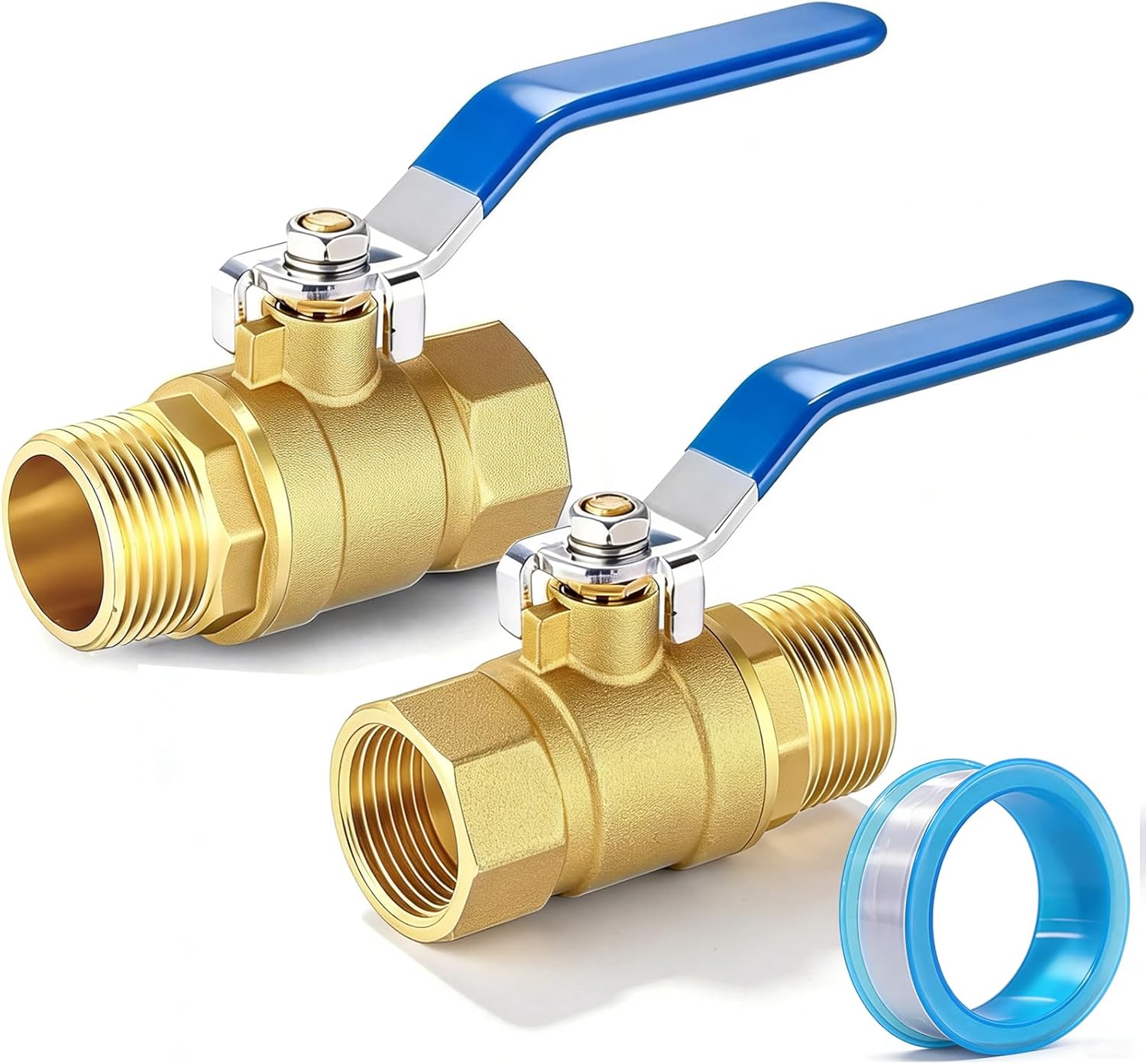

1 inch NPT Brass Ball Valve-Heavy Duty Forged Brass Shut Off Valve Fitting with Female to Male NPT Thread Full Bore Port & 1/4 Turn Long Handle, for Water Oil Gas, Flow & Direction Control
4.0 (65 items)
Limited Time Sale$21.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211105214 | Release Date | 2026/04/04 | List Price | $14.40 | Model Number | 211105214 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TianPtion 1 inch NPT Brass Ball Valve-Heavy Duty Forged Brass Shut Off Valve Fitting with Female to Male NPT Thread Full Bore Port & 1/4 Turn Long Handle, for Water Oil Gas, Flow & Direction Control
- Full Flow Port Design: TianPtion female NPT to male NPT brass ball valve adopts full flow port design (as full bore), providing maximum, unrestricted flow with minimal pressure drop; achieving the maximum flow rate and velocity and improving system energy efficiency
- NPT Thread Connection: TianPtion heavy duty brass shut off ball valve adopts standard male NPT (National Pipe Tapered) thread to female NPT (National Pipe Tapered) thread connection, providing a, strong, and reliable seal for fluids and gases, primarily through metal-to-metal wedging action
- Heavy Duty Brass: TianPtion F to M full bore port brass valve is made of heavy-duty forged brass; the high-quality brass material ensures the durability and corrosion resistance of the ball valves, for long-term reliability in various extremely unfavorable environments
- Product Standards: TianPtion forged brass ball valve's standard: operate within a temperature range of -20°C to 150°C (-4°F to 300°F); rated for maximum pressures of 600 WOG (Water, Oil, Gas) or roughly 40-50 bar (approx. 725 psi); Heavy-duty versions can reach higher pressures or temperatures

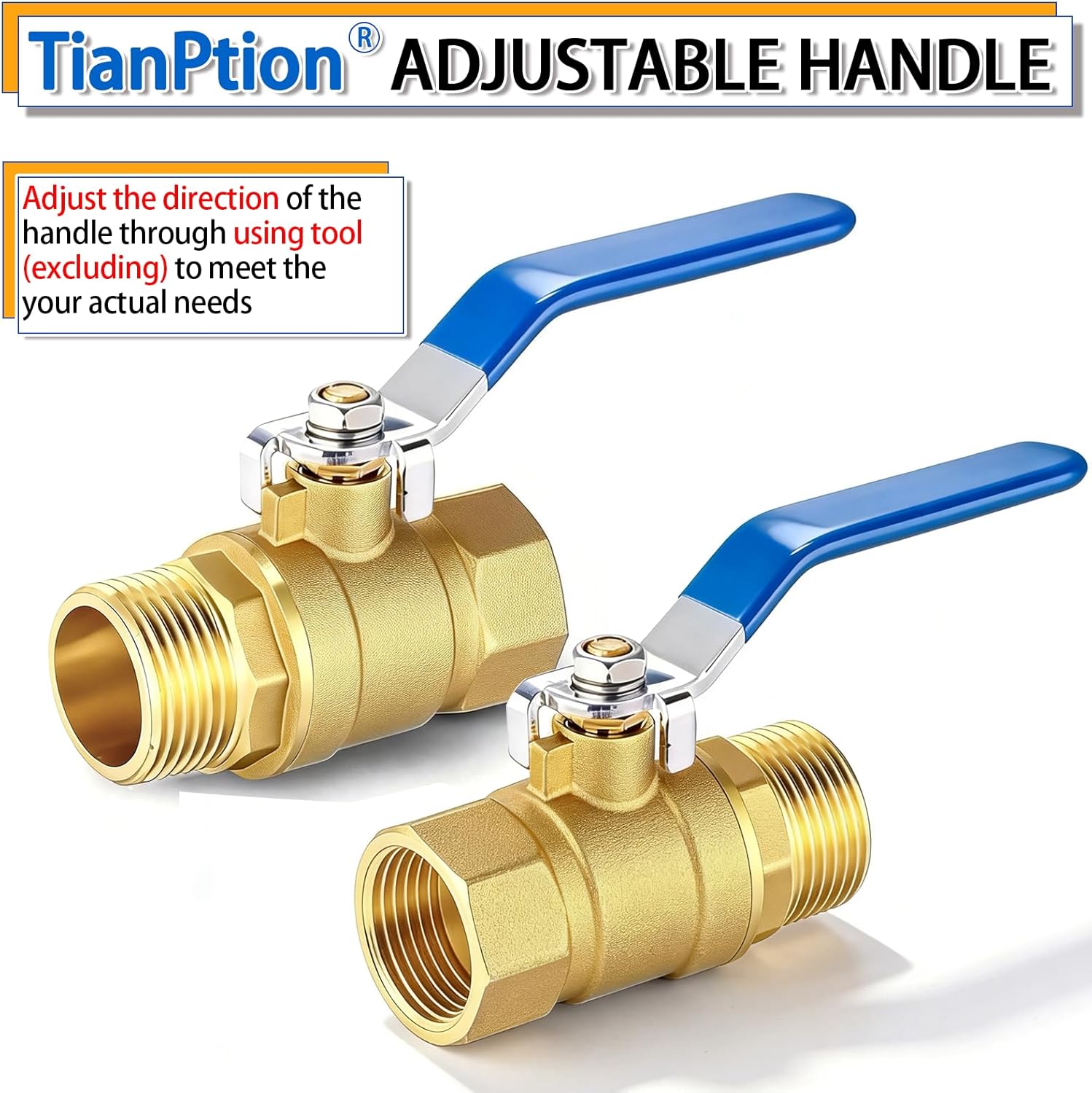

- 1/4 Turn Long Handle: TianPtion male ✖ female npt brass ball valve adopts extended 304 stainless steel long handle with blue anti-slip rubber sleeve; extended handle is easy to hold and can be rotated smoothly by 90 degrees, making it more convenient and less tiring
- Product Application: TianPtion brass ball valve threaded can be used for a variety of purposes, including controlling the flow of water, gas, oil, and other fluids, regulating pressure and directing the flow of fluid to various locations. Used in a wide range of plumbing industries
| Size | 1 Inch |
|---|---|
| Brand Name | TianPtion |
| Unit Count | 2.0 Count |
| Valve Type | Ball Valve |
| Thread Size | 1 inch |
| Thread Type | NPT |
| Manufacturer | TianPtion |
| Model Number | Female NPT Thread to Male NPT Thread |
| Material Type | Brass |
| Exterior Finish | Brass |
| Number of Ports | 2 |
| Maximum Pressure | 19.6 Bars |
| Specification Met | ASME B16.34, ASTM |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 1 Inches |
| Outlet Connection Type | NPT Thread |
