Parco Scientific PA-5FLX-IFR07 Trinocular Lockable Zoom Stereo Microscope | 10x Eyepiece, 0.7X—4.5X Zoom Range, 3.5x-45x Magnification Range, 0.5 Aux Lens | Double Boom Stand | 144-LED Ring Light

This trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. This model also provides a zoom lock to maintain a fixed magnification for calibrated measurement applications.The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.SpecificationsHead: Trinocular, 45° inclined, rotates 360°, lockable zoomEyepiece: 10x WF / 20mm high eye pointZoom Range: 0.7x—4.5x, 1:6.4 zoom ratioMagnification Range: 3.5x—45xWorking Distance: 100 mm standard, optical working distance can be increase to 165mm with 0.5 auxiliary lensFocusing: Heavy duty rack and pinion focusing arm with tension adjustmentStand: Double arm ball-bearing boom standLight Source: 144-LED ring light with intensity controlPacking ListTrinocular lockable zoom stereo microscope headPair of 10x WF eyepiecesDouble arm boom standFocusing armPair of eye guardsOne dust coverUser manual144-LED ring light0.5x auxiliary lensPower adaptorShipping Information20” x 19” x 12”50 lbs

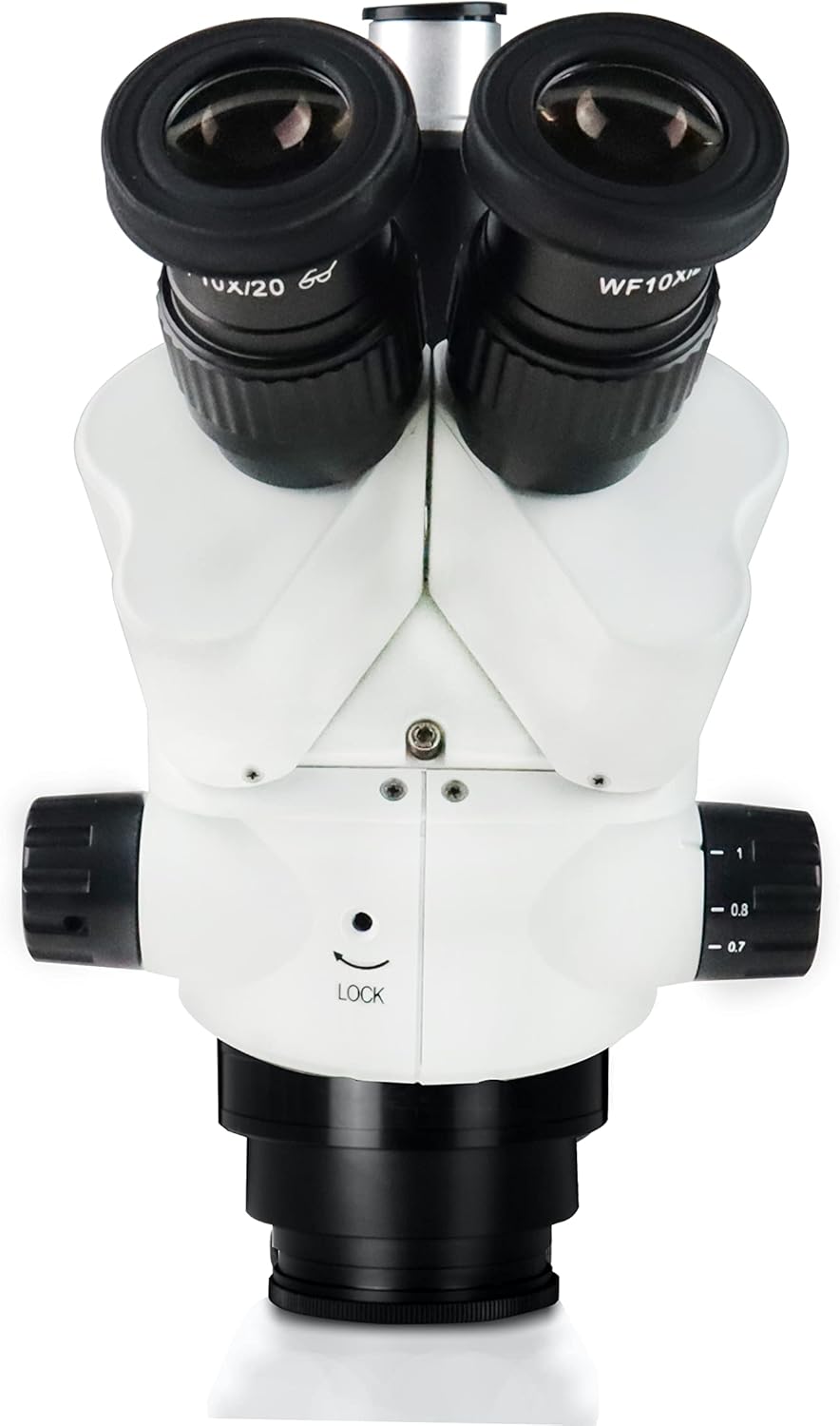

• 45° inclined trinocular head that rotates 360°. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed. It provides a zoom lock to maintain a fixed magnification
• 7x—45x standard magnification range, that when used with the included 0.5x auxiliary lens, expands to a 3.5x—45x magnification range. It has a field of view of 2 ½” (65mm), while the parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range
• Large-and-stable double arm boom stand offers a long and flexible working distance, while the advanced ball-bearing technology allows the arm to glide with little resistance. The solid-steel, table-top, rectangular base provides a solid foundation to fit your observational needs
• Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control. Robust and versatile, it is the perfect microscope for laboratory and industrial application, and is designed to provide outstanding value without compromising performance
• 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs
