Marine Boat Switch Panel Waterproof, 5 Gang Marine Rocker Switch Aluminum Panel with 3 Port 66W 12V USB Outlet Car Charger, 150W Cigarette Lighter Socket and Blue LED Voltmeter for Truck Car RV, etc.
4.2 (100 items)
Limited Time Sale$20.42 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211759662 | Release Date | 2026/04/04 | List Price | $13.62 | Model Number | 211759662 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 5 Gang Marine Switch Panel: 5 Gang ALUMINUM switch panel with 3-port 12V USB outlet car charger, 150W lighted cigarette lighter socket and blue LED voltmeter for various circuit control and charging needs. Universal for 12V-24V cars, trucks, jeeps, trailers, caravans, marines, buses, boats, yachts, etc.
- Upgraded Car Charger: The 12V USB outlet has 3 USB ports, PD 3.0 30W+PD 3.0 30W+QC3.0 18W, with a total maximum output of 78W, compatible with all PD and QC ports. And the car charger features a button switch for easy operation, avoiding unnecessary power waste.
- 150W Lighted Cigarette Lighter Socket: The new cigarette lighter socket has a blue light, making it easy to locate at night. The total power of the cigarette lighter socket can reach 120W (12V) / 150W (24V). It is sufficient for daily use and can perfectly match compatible devices such as dashboard cameras, GPS, vacuum cleaners, air purifiers, radar detectors, etc.
- Blue LED Voltmeter: The blue LED voltage display on this panel allows you to monitor your car's battery voltage in real time. It allows you to keep track of your car's battery condition and drive with peace of mind.
- 5 PIN On-Off Waterproof Marine Switch: The 5-pin switch features a spst design (single pole, single throw) for easy installation and the freedom to turn lights on or off. Standard 5-pin switches rated at 20amp/12vdc and 10amp/24vdc can be used to upgrade most wiring harnesses to control LED light bars, LED work lights, fog lights, headlights, taillights, auxiliary lights and more.

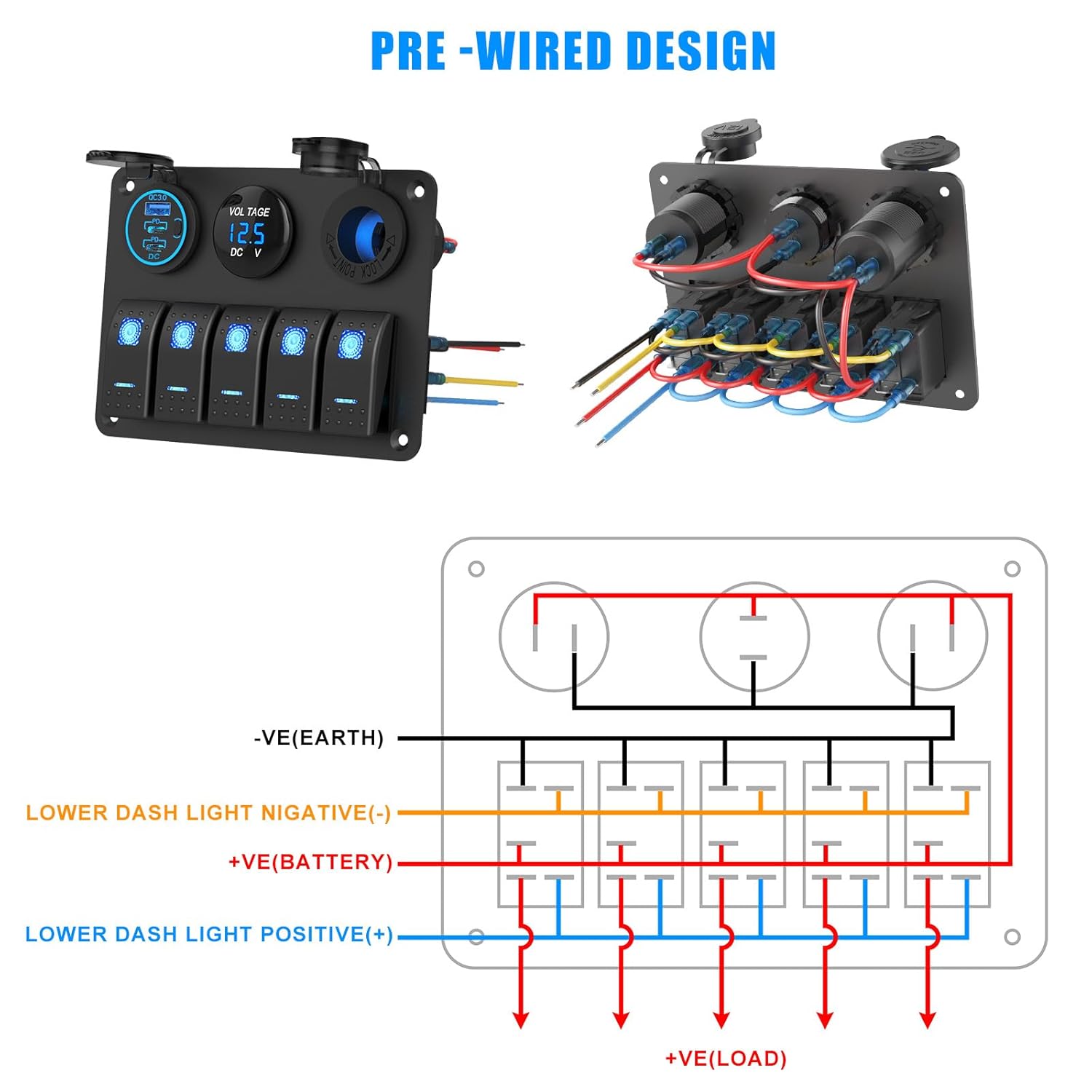

- Easy to Install: The product wiring has been pre-installed, the red and blue wires to the power supply positive, black and yellow wires to the power supply negative. A reserved USB pin connects to the positive terminal of the device to be controlled, and the negative terminal of the device connects to the negative terminal of the power supply. With individual on/off switches, the marine switch panel can control up to 5 devices simultaneously.
| Model | 30 |
|---|---|
| Wattage | 150 watts |
| Terminal | Spade |
| Brand Name | Hapytrip |
| Unit Count | 1.0 Count |
| Switch Type | Rocker |
| Circuit Type | 5-way |
| Contact Type | Normally Closed |
| Manufacturer | Shenzhen GSG Technology Co.Ltd |
| Actuator Type | Rocker |
| Material Type | Aluminum, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 5.91 x 3.94 x 3.15 inches |
| Number of Items | 8 |
| Contact Material | Brass |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | UL |
| Included Components | 5 Gang Switch Panel with 3 USB Charger 150W Socket and Blue LED Voltmeter |
| Number of Positions | 5 |
| Upper Temperature Rating | 70 Degrees Celsius |
| International Protection Rating | IP65 |
