TEMCo 60 Ton Hollow Hydraulic Cylinder 4" Stroke Single Acting 10,000 PSI – Tensioning, Pulling & Maintenance

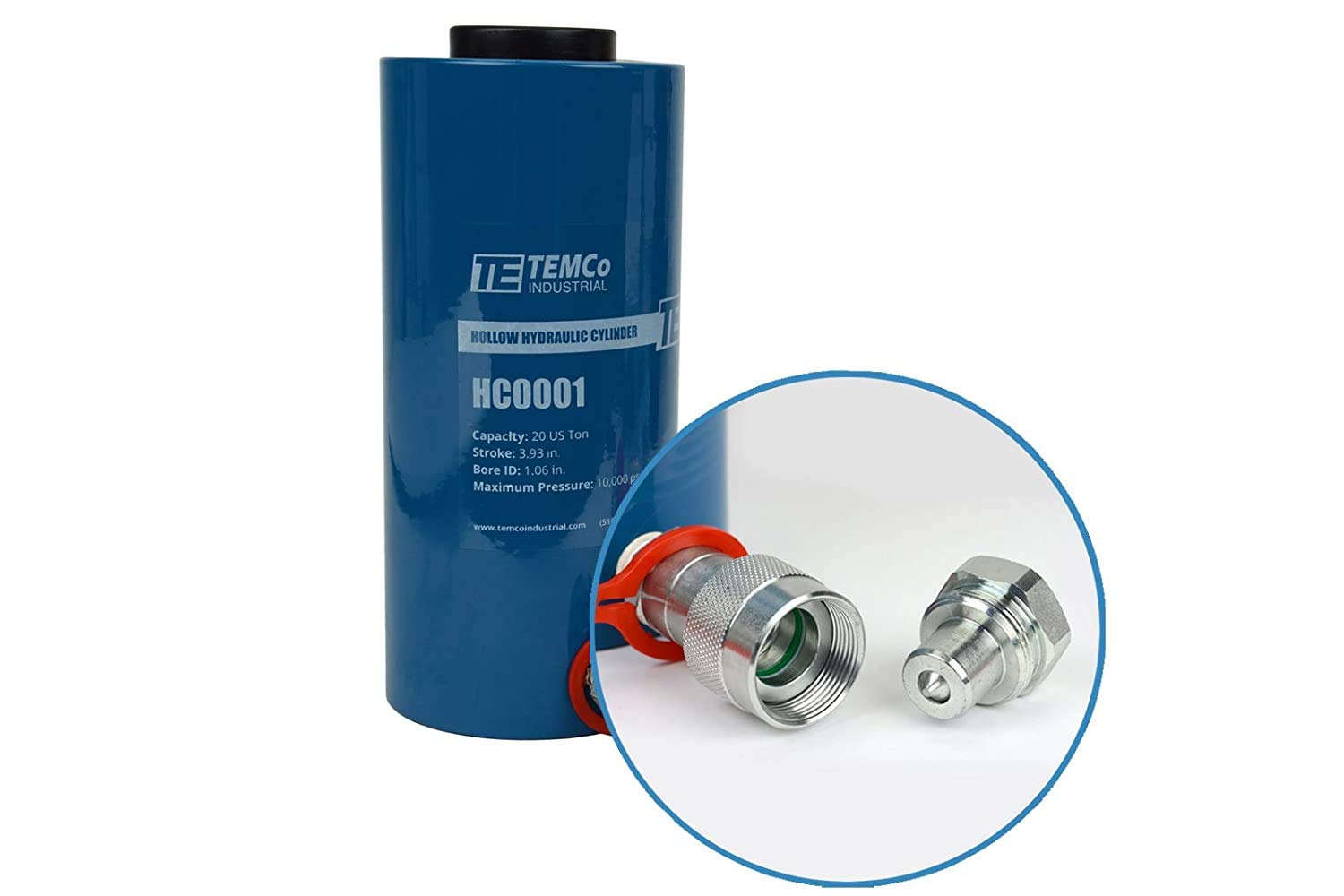

TEMCo's hydraulic cylinders come with an ISO 14540 coupler, which is compatible with a large majority of other products out on the market. Don't deal with the headache of mismatched fittings and confusing coupler specifications - have the confidence that you're ready to thread into a TEMCo hydraulic cylinder so you can get back to your project, whether you're a pro or a regular Joe. Not using a standard coupler fitting? We've included the matching opposite fitting to adapt your equipment.BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown in photos)Type: Hollow Hydraulic CylinderAction: Single acting - Pressure extend, Spring returnRam Material: Hard Black Oxide Plated High Carbon SteelShell Material: Proprietary Heat-treated SteelCapacity: 60 US TonsCompressed Overall Height: 11.97"Extended Overall Height: 15.91"Outside Cylinder Diameter: 6.22"Stroke: 3.93"Center Bore ID: 2.13"Bore length: 11.97"Oil Volume: 49 cubic inMax Pressure: 10,000 psiMin Operating Temp: -15°CConnector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust capWarranty: 5 YearsApplications Include: Heavy machinery rigging and movingAuto repairOil riggingMachine maintenanceBearing and bushing removal and installationLifting, pushing, spreading, bending, pressing or straighteningCoupler SpecificationsStandard: ISO 14540Thread (between male poppet end and coupling ring): M30 x 1.5 mmThread: 3/8" NPTOcclusion Type: PoppetRated Pressure: 10,000 psiRated Flow: 6 GPMSealing Material: Nitrile Rubber (Buna-N, NBR)

• 60 US Ton Capacity, 4" Stroke. Max Pressure 10,000 PSI. Single acting - Pressure Extend, Spring Return.
• Extended Overall Height: 15.91", Stroke: 3.93", Outside Cylinder Diameter: 6.22", Center Bore ID: 2.13", Oil Volume: 49 cubic in
• Black oxide plated high carbon steel ram. Proprietary heat-treated steel shell.
• Includes ISO 14540 Quick Coupler – Ships with a 3/8" NPT Male & Female hydraulic connector (10,000 psi rated, 6 GPM flow) featuring poppet-style occlusion, nitrile rubber seals, and a protective dust cap; compatible with most standard hydraulic equipment so you can get to work without mismatched fittings.
• Backed by a 5-Year manufacturer warranty for confidence and peace of mind on every job.
