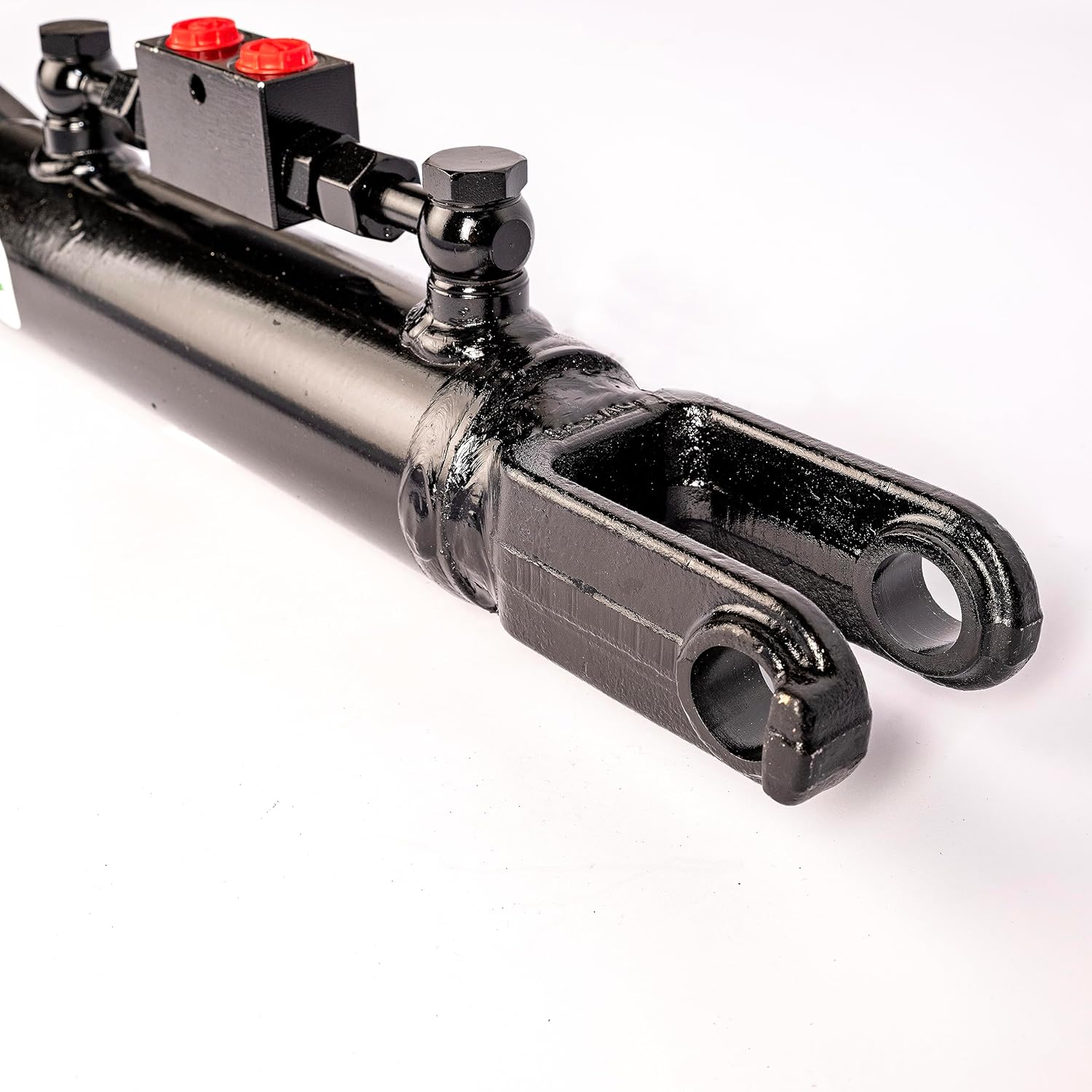

Spare Parts Holland - Hydraulic Side Link Cylinder with Fork - Min. 21-5/8" Max. 28-3/16"

Transform your tractor's capabilities with the Spare Parts Holland Hydraulic Side Link. This professional-grade hydraulic cylinder is engineered for precision control and reliable performance in demanding agricultural applications. Featuring an integrated locking block system and fork end design, this side link maintains consistent positioning even under heavy loads.Superior Construction and PerformanceBuilt with high-grade steel and finished in protective black coating, this tractor hydraulic cylinder delivers exceptional durability. The hydraulic control valve system is designed for compatibility with standard tractor hydraulic setups, making it a versatile addition to your agricultural equipment.Technical Specifications:- Model Number: SPH320108- Maximum Hydraulic Pressure: 3625 PSI- Operating hydraulic pressure: 2610 PSI- Push force 11420 and 6349 Lbs pull force at 2610 PSI pressure- Working Length Range: 21-5/8" to 28-3/16"- Hydraulic Hoses: 3/8" Blue Flex SAE 100 R2AT- Hose Length: 33.5 inches- Quick Coupler Type: 1/2" BSP Poppet Style

• Intelligent and Strong: Premium hydraulic side link with integrated locking block technology, maintains adjusted position consistently. Features sturdy steel construction with black protective finish. Hydraulic operating pressure of 2610 PSI with 11420 Lbs push force and 6349 Lbs thrust force.
• Complete Installation Kit: Includes 2x hydraulic hoses with 1/2" BSP Poppet Style male quick couplers and protective dust covers. Extended 33.5-inch hose length for flexible installation.
• Adjustable Design: Hydraulic side link system with fork end and rotatable piston rod for precise implement positioning. Working length ranges from 21-5/8 inches minimum to 28-3/16 inches maximum for versatile applications.
• Advanced Locking Mechanism: Integrated check valve system securely locks cylinder position, requires active hydraulic pressure for adjustments. Ensures stable implementation positioning during operation and transport.
• Versatile Compatibility: Designed for tractor hydraulic systems with double-acting control valves. Features fork end design for secure attachment. Fully painted black finish for superior corrosion resistance.
