Type C USB Tester 0.96in LCD Display Voltage Current Power Meter Multimeter, Power Measurement Range 0-150W Supply Voltage 3.5-24V (Type C)

Specification: Condition: Brand New Item Type: USB Tester Material: ABS Model: TC66 Display: 0.96in Color Display Voltage Measurement Range: 0.005V-30.0000V Voltage Measurement Resolution: 0.0001V (0.1mV) Current Measurement Range: 0-5.00000A Current Measurement Resolution: 0.00001A (0.01mA) Supply Voltage: 3.5-24V Screen Resolution: 160x80 Capacity Accumulation Range: 0-99999mAh Voltage Measurement Accuracy: ± (0.05% + 20 Bits at 23 ° C) Energy Accumulation Range: 0-99999mWh .99Wh Current Measurement Accuracy: ± (0.1% + 30 Bits, 23 ° C) Load Impedance Range: 1Ω-9999.9Ω Power Measurement Range: 0-150W Temperature Measurement Range: 0°C-80°C/ 32°F-176°F Refresh Rate: 2Hz Operating Temperature Range: 0-45°C/ 32°F-113°F Automatic Screen off Time: 0-9 Minutes Fast Recognition Mode: Support For .0, For QC3.0 Size: Approx. 49x22x8mm / 1.9x0.9x0.3in Package List: 1 x USB Tester 1 x Storage Box 1 x Instruction Manual

• ✎ Use: supports Bluetooth connection control of mobile APP (For IOS). Through Bluetooth connection of APP, real-time data of voltage, current and power can be detected by mobile APP.

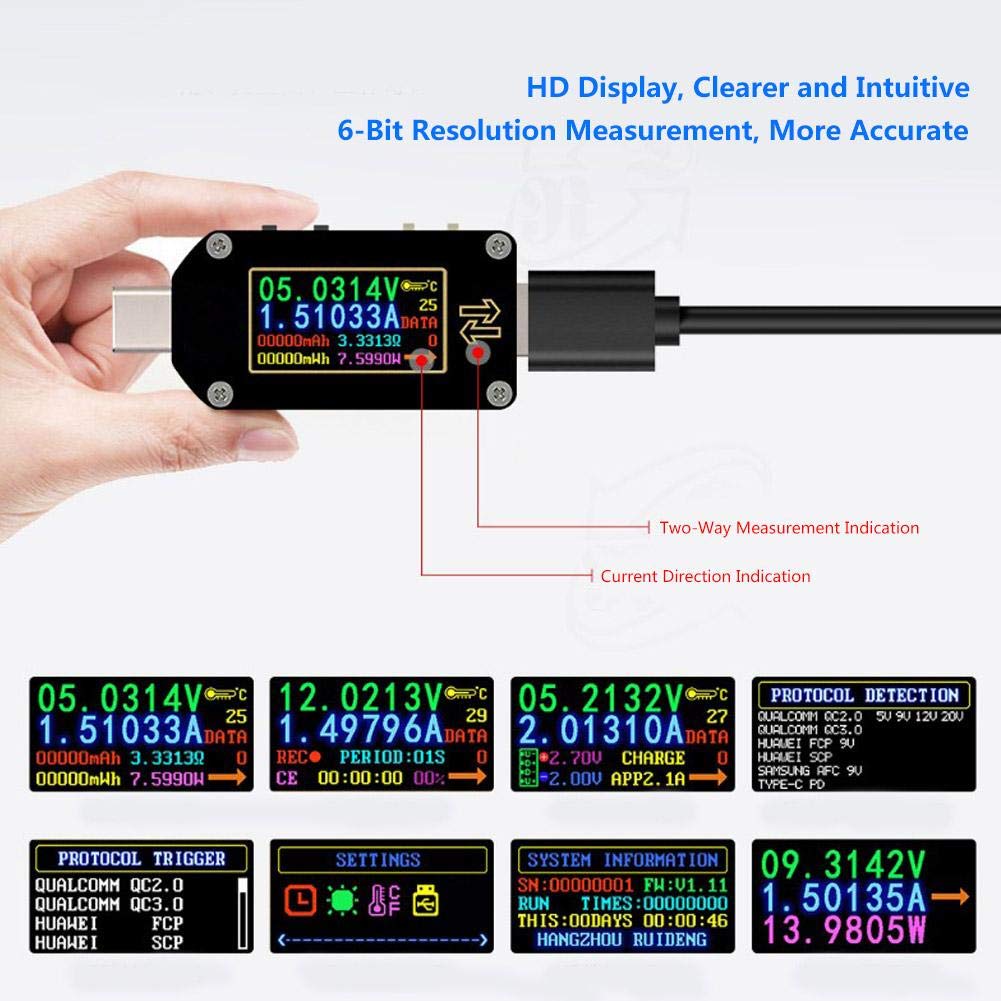

• ✎ LCD display: Using 0.96in LCD color LCD display, real-time display of the charging status of electrical appliances, voltage, current, capacity, energy, power, equivalent impedance, temperature and so on. display, 160 degree wide angle of view, clear picture quality, high brightness, long working life.
• ✎ Accurate measurement: 6-bit resolution, more accurate measurement, real-time monitoring of charging status, of charging equipment, safer use.
• ✎ Easy to use: Supporting two-way current measurement, can measure both forward current and reverse current, which is more convenient to use.
• ✎ Suitable for: Supporting for USB PD, for .0/3.0, for SCP, other mainstream fast charging protocols, can trick out 5V/9V/12V/20V and other fast charging voltage, convenient for digital players to test the performance of fast charging chargers, data lines and other products.
