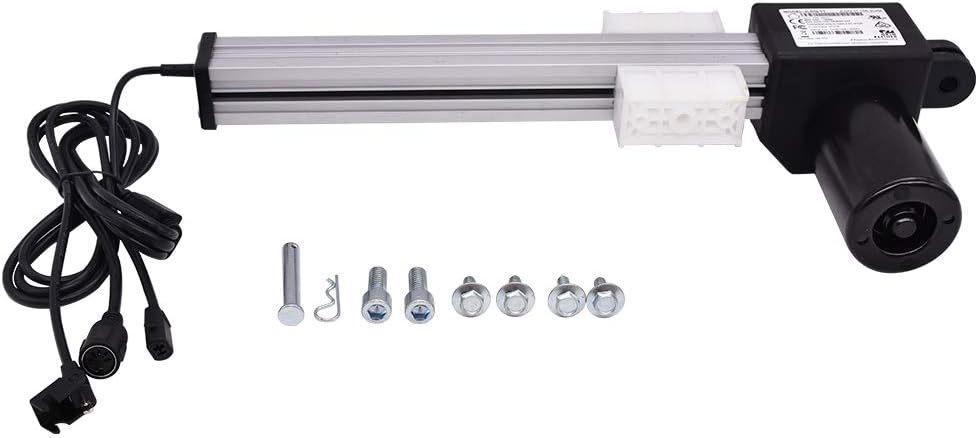

Fromann Power Recliner Motor Model JLDQ-11 JLDQ.11.156.204M Linear Actuator Kit for Lift Chair Power Recliner Parts Replacement
4.8 (103 items)
Limited Time Sale$40.87 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212100636 | Release Date | 2026/04/06 | List Price | $27.25 | Model Number | 212100636 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

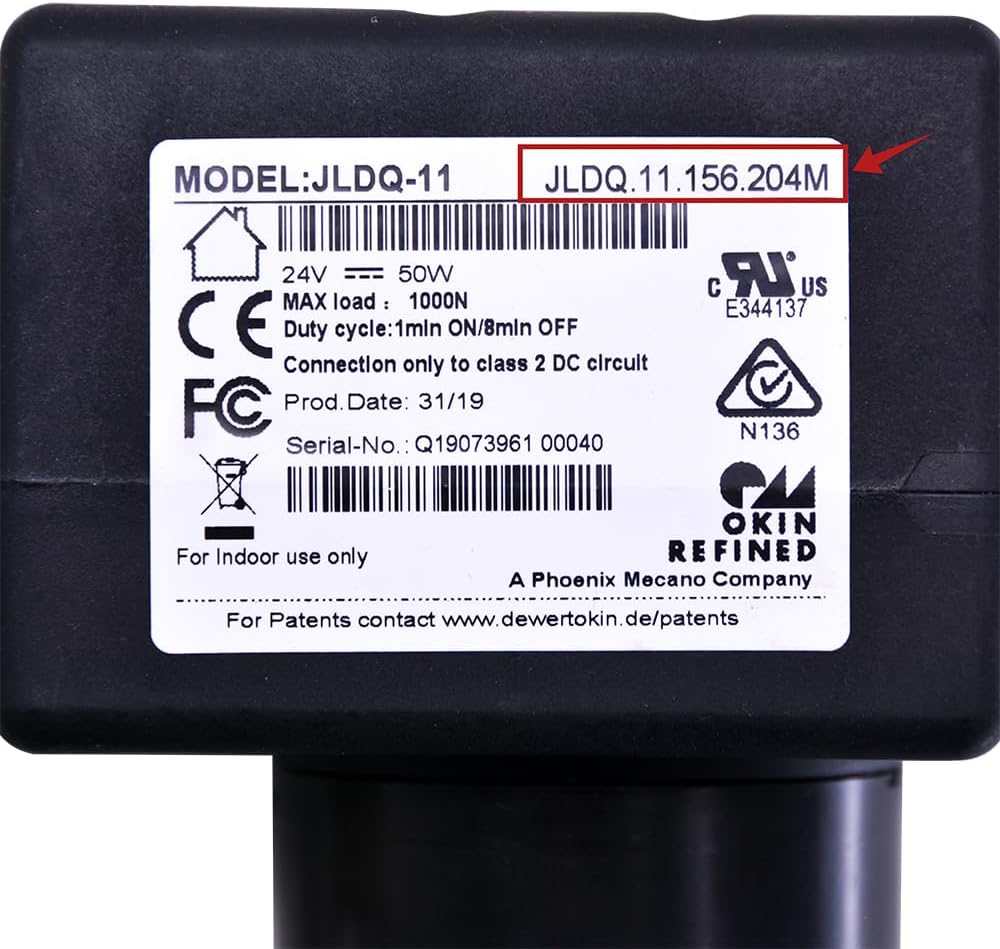

It is important to make sure our motor SKU " JLDQ.11.156.204M " on label and the cable connectors/motor end shapes are same to yours. Refined-R Recliner Motor Part JLDQ.11.156.204M offered , Refined-R JLDQ-11 Part # JLDQ.11.156.204M can replace JLDQ-11 Part JLDQ.11.156.204.Appearance: Black（PA）,silver white（aluminum）Motor: Low-voltage DC motor（24V）Operation frequency: On 1 min/Off 8minStroke: 204mmMinimum dimensions: 156mmMax install dimension: 360mmPush force: 1000N, Pull force: 1000NMax Load: 1000N
- Push force:1000N, Pull force:1000N
- Refined-R JLDQ-11 Part JLDQ.11.156.204M can replace JLDQ-11 Part JLDQ.11.156.204
- Motor replacement is DC motor, small mounting dimensions, easy to install
- Application in electric sofa, massage chair and etc, Check Label and also troubleshoot the switch or remote or power supply before ordering a motor

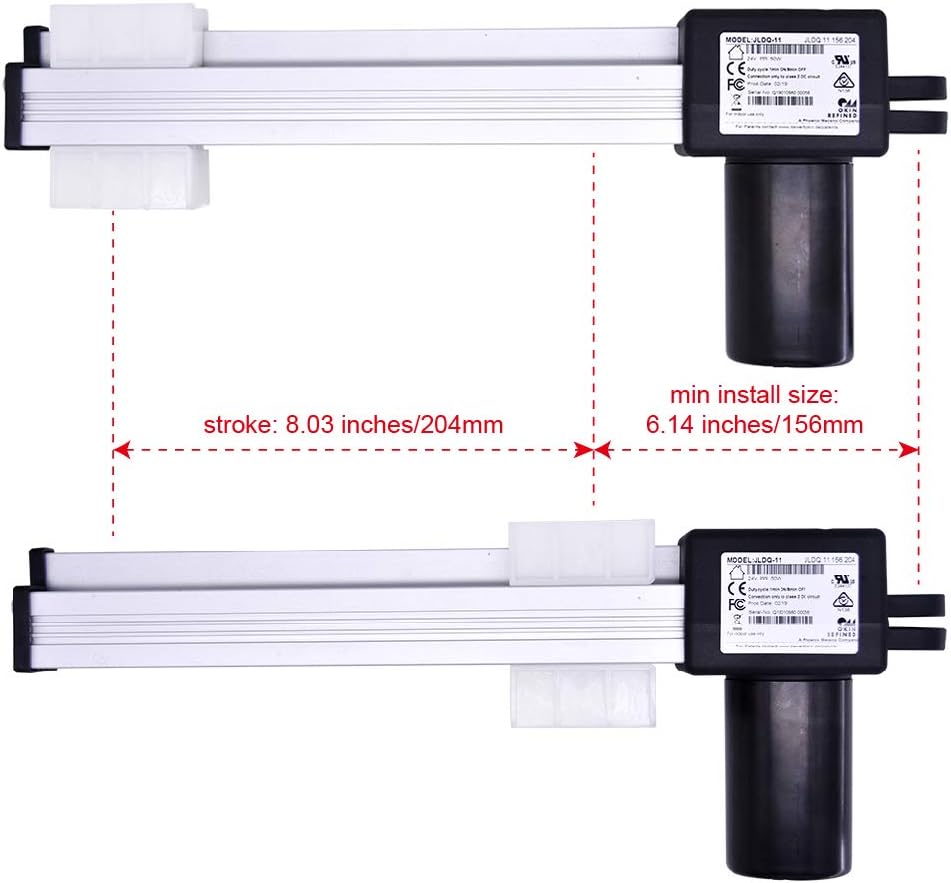

- Stroke:204mm/8.03inches, min install dimension(shrink):156mm/6.14inches, max install dimension(stretch):360mm/14.17inches, 2 pin flat round power transformer connection, 5 pin hand control plug connection
| Size | 6.14 inches (min) - 14.17 inches (max) |
|---|---|
| Color | Black |
| Shape | L-Shaped |
| Arm Style | Sled |
| Leg Style | Sled Base |
| Back Style | Solid Back |
| Brand Name | Fromann |
| Item Depth | 4 inches |
| Model Name | 9.98.0276000 |
| Seat Depth | 8.03 inches |
| Style Name | Sled Base |
| Unit Count | 1.0 Count |
| Item Weight | 3.8 Pounds |
| Manufacturer | Fromann |
| Model Number | Jldq.19.384.206f01 |
| Material Type | Metal |
| Seat Material | Metal |
| Required Assembly | No |
| Frame Material Type | Metal |
| Included Components | Motor Actuator |
| Indoor Outdoor Usage | Indoor |
| Age Range Description | Adult |
| Reclining Position Count | 2 |
| Maximum Weight Recommendation | 101.97 Kilograms |
