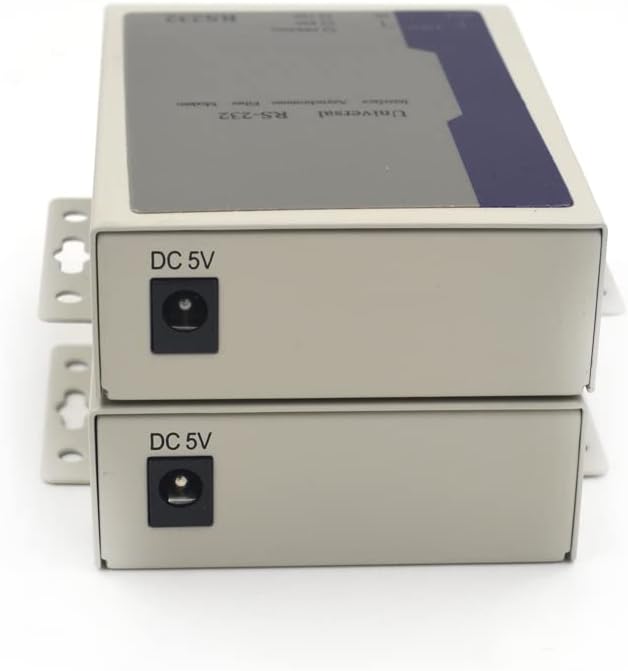

RS232 Data Extender Over Fiber Optic, DB9 to Fiber Converter, BIDI RS232 Serial Port Optical transceiver,Singlemode Fiber Cable up to 20Km. 1 Pair (FC Interface)
4.8 (89 items)
Limited Time Sale$45.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212174378 | Release Date | 2026/04/06 | List Price | $30.00 | Model Number | 212174378 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: 1.Communication rate: 120Kbps max. 2.Simplex SC or FC(optional) optical port 3.Fiber wavelength: 1310nm/1550nm. 4.Anti surge protection 1500W, 15KV electrostatic protection 5.Working distance: single-mode 20 km, Multi-mode 0~500m. 6.RS232 data transmission distance: 15 meters 7.Power consumption: 2.5 w 8.Size:103x70x27mm（LxWxH） 9.Weight: 0.8Kg/pair. 10.Power supply: AC100~240V,DC5V (US/EU/UK/AU standard plug is optional) Environmental requirements Ambient temperature: -25 ℃～+70 ℃ Storage temperature: -45 ℃～+95 ℃ Relative humidity: 0～95% (no condensation) Package contents: 1x RS232 data Transmitter. 1x RS232 data Receiver. 2 x power supply adapter (US/EU/UK/AU standard plug is optional). 1x 3M fiber patch cord. 1 x User manual
- This unit can extend universal Bidirectional RS-232 data through a Fiber optic cable to remote end, Singlemode fiber can reach up to 20Km(12.4Mi) , Multimode fiber up to 500meters.
- Zero delay automatically forwards. Asynchronous transmission, point to point use, RS232 data and fiber conversion.
- Automatically detect the serial port rate, identify and control the direction of data transmission. The LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment.
- Support universal singlemode fiber and compatible with universal multimode. Up to 12.4miles/20Km by a single-mode fiber cable. Up to 500m by a multimode fiber cable.
- Plug and Play, Simply plug in fiber optical port and Db9 port, and it will work immediately.
| UPC | 723496426948 |
|---|---|
| Model | FC interface |
| Frequency | 120 KHz |
| Brand Name | Wekuant |
| Cable Type | Fiber Optic |
| Item Shape | Round |
| Item Weight | 0.7 Kilograms |
| Manufacturer | Wekuant |
| Connector Type | RJ45 |
| Number of Pins | 9 |
| Number of Items | 1 |
| Connector Gender | Male-to-Female |
| Compatible Devices | Server, Computer, Industrial Equipment, Fiber Optic Devices |
| Data Transfer Rate | 20 KHz |
| Included Components | power |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Warranty Description | 1 year |
| Compatible Phone Models | No Compatible Phone Models |
| Recommended Uses For Product | Data communication between devices over long distances |
| Other Special Features of the Product | Led Indicator |
