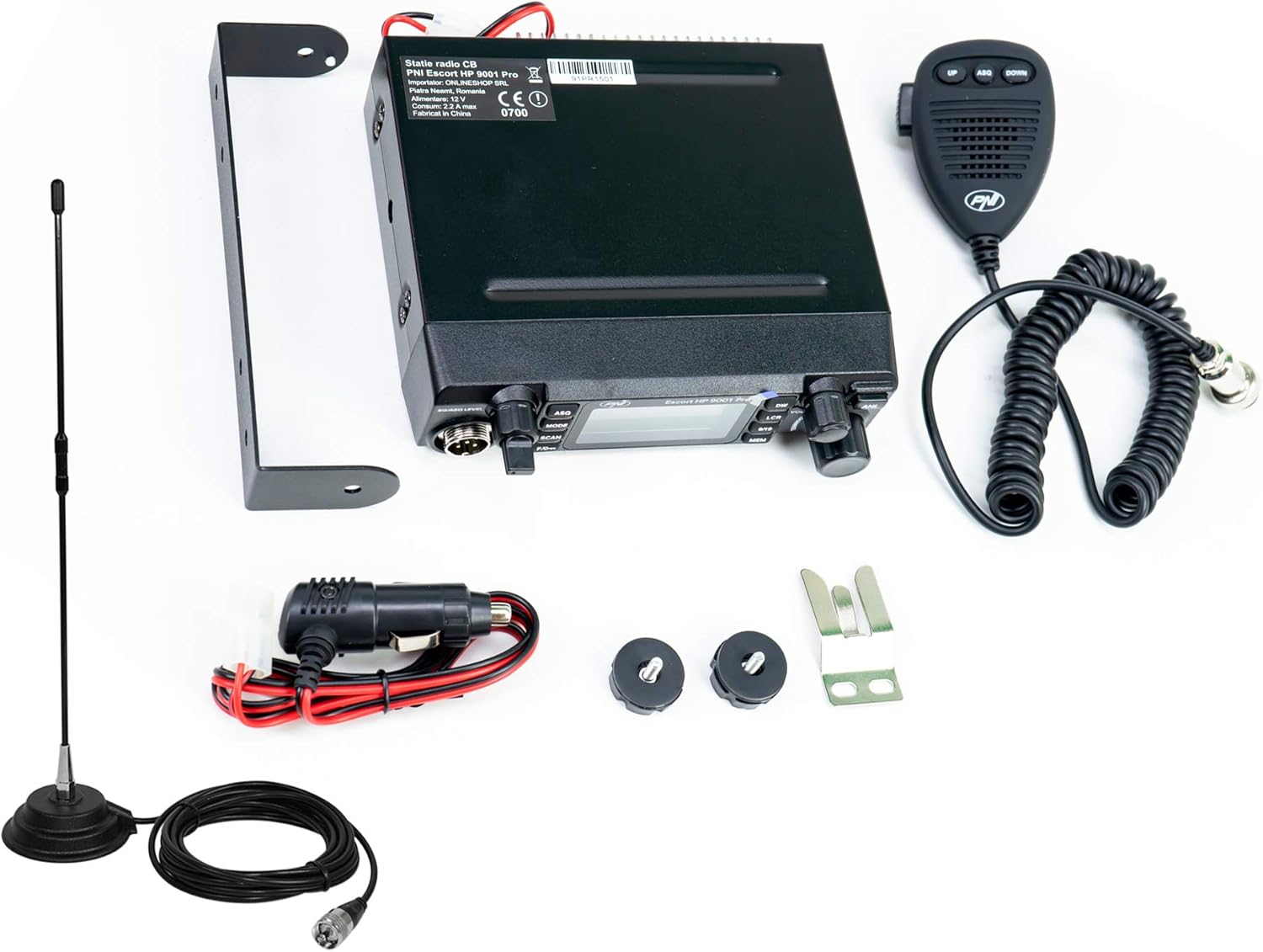

Package CB PNI Escort HP 9001 PRO ASQ Radio Station Adjustable, AM-FM, 12V / 24V, 4W + CB PNI Extra 40 Antenna with Magnet, 30W, 26-30MHz, SWR 1.0, Fiberglass

PNI-HP9001P - CB Radio PNI Escort HP 9001 PRO ASQ adjustable, AM-FM, 12V / 24V, 4W, Scan, Dual Watch, ANL, multicolor screen Product identification Product code PNI-HP9001P Manufacturer NIP General characteristics AM / FM band type channels 40 Frequency 26,965 - 27,405 MHz Microphone type (pins) 6 pins Audio power speaker 3 W Sensitivity (20dB SINAD) less than 0.5 µV AM / FM 4 W emission power FM modulation: 1.8KHz ± 0.2KHz, AM: 85-95% 12 V / 24 V power supply Maximum absorbed current 2200mA Dimensions (W x H x H / Weight) 160 X 170 X 45 mm / 500g Montage 1DIN Special features Dual Watch Scan channel ASQ Keypad lock CSF - the last selected channel Adjustable ASQ Urgent channel ANL noise filter (Automatic Noise Limiter) Multicolor screen Red, Green, Purple, Blue, Yellow Channel memory Operating temperature -26 ° C ~ + 60 ° C Rear panel connections Additional speaker connection Microphone connection The package contains CB radio Microphone Radio station mounting bracket and screws Microphone holder and screws Power cord Lighter plug User manual PNI-EXTRA40 - CB PNI Extra 40 antenna, with magnet included, length 45 cm, 30W, 26-30MHz, SWR 1.0, fiberglass Product identification Product code PNI-EXTRA40 CB work band Product color (spike) Black General characteristics Working frequency 26 - 28 Mhz Maximum applied power 150W S.W.R. minimum in the center of the band 1.0 Length 45 cm (base included) Impedance 50 Ohm Material Fiberglass PL259 connector type Cable length 4m Dimensions 440 x 90 x 90 mm Vertical polarization Working distance 7 km Magnetic base Operating temperature -26 ° C ~ + 60 ° C The package contains CB radio antenna Cable RG58 4 m PL259 plug Magnetic base 90 mm

• The evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply.
• PNI Escort HP 9001 PRO accompanies drivers of cars, trucks or trucks. It is an excellent product, equipped with all the functions necessary for efficient communication.
• With 80 AM / FM channels, with a power that varies between 1W and 4W depending on the country, HP 9001 PRO easily adapts to the standards required in different European countries.
• With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to 9/19 emergency channels and the screen multifunctional backlit.
• The PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm-base included) that can be mounted both on cars and on vans or minibuses. Its small size makes it almost unnecessary, easily confused with the radio antenna. The average reception distance is 7 km.
