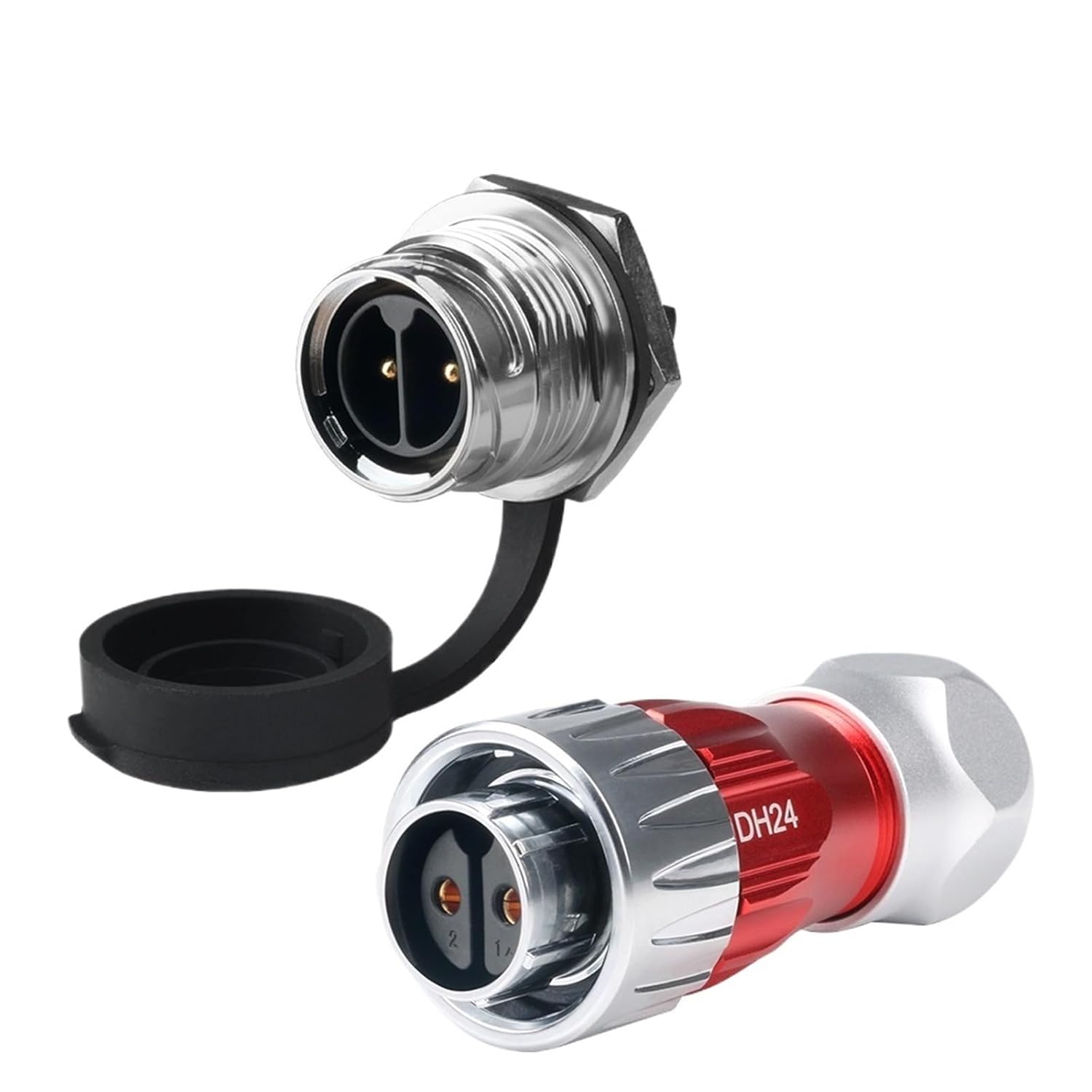

1Pcs M24 2/3 Pin IP68 Waterproof Heavy Duty Metal Wire Connector Bulkhead Screw Locking Circular Connector Creepage Distance(Socket E Only,2P)
4.7 (16 items)
Limited Time Sale$30.95 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212196888 | Release Date | 2026/04/06 | List Price | $20.63 | Model Number | 212196888 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electrical ConnectorM24 2Pin 3Pin IP68 Waterproof Heavy Duty Metal Wire Connector Bulkhead Screw Locking Circular Connector Creepage DistanceProduct Description1.Bayonet connection,safety and stability 2.DH series is with welding/screwing termination 3.Military three point screw lock connection 4.Alloy metal shell,layer upon layer process structure 5.Gold-plated copper needle,all-metal shell,wear ,anti-corrosive,waterproof and dust proof 6.Bright color:Can effectively distinguish power,signal,optical fiber and data to meet different needs==========Model Number : DH-24 Screw ConnectorColor : Silver and redInsulated parts : PBTType : Wire ConnnectorCurrent rating(A) : 25ACertificate: : ISO9001/CE/ROHSOperating voltage(AC.V) : 500VContact Resistance(Max.) : 1.0m OmegaDurability(Min.) : 500 mating &unmating cyclesTemperature rating : -40~+85 degree centigreWithstand voltage(AC.V.rm)1 minute: : 2000VContact diameter : O.D 2.0*2/3Wire size : 2.5~4.0mm²/14-12AWGCable O.D range : O.D 10.5~14.0 mmAssembly style : Screw LockingHardware metal : Stainless steelContact size : Brass with gold-platedSealing : Silicone / rubber
- M24 2 Pin Ip68 Waterproof Connector|Heavy Duty Metal Wire Connector|IP68 Waterproof Rating:Achieve reliable connections in harsh environments with the IP68-rated M24 2 Pin connector, ensuring waterproof and dust-proof performance.
- Heavy Duty Metal Construction:M24's robust alloy metal shell and gold-plated copper needle offer superior wear resistance and anti-corrosive properties.
- Screw Locking Mechanism:Secure connections with the military-grade three point screw lock, providing a stable and safe bayonet connection.
- Bulkhead Design:The bulkhead screw locking design of the M24 ensures a secure fit, ideal for heavy-duty industrial applications.
- Creepage Distance Compliance:M24 meets creepage distance requirements, making it suitable for various signal and power applications.
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | CTDOFUM |
| Item model number | CTDOFUM |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
