Wimberley AP-602 Replacement Lens Foot for Canon 400 f2.8 is I,II, 600 f4.0 is I,II, 800 f5.6 is and Sigma 500 f4 DG OS HSM - Arca-Swiss Style - Made in USA
4.1 (138 items)
Limited Time Sale$47.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212200568 | Release Date | 2026/04/06 | List Price | $31.60 | Model Number | 212200568 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

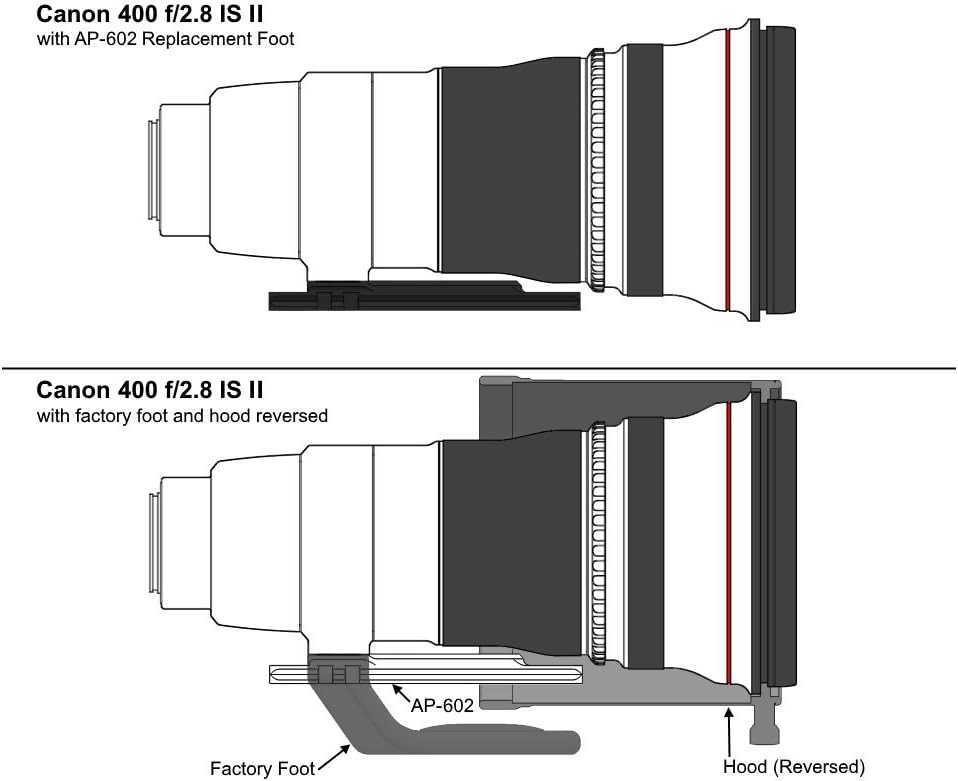

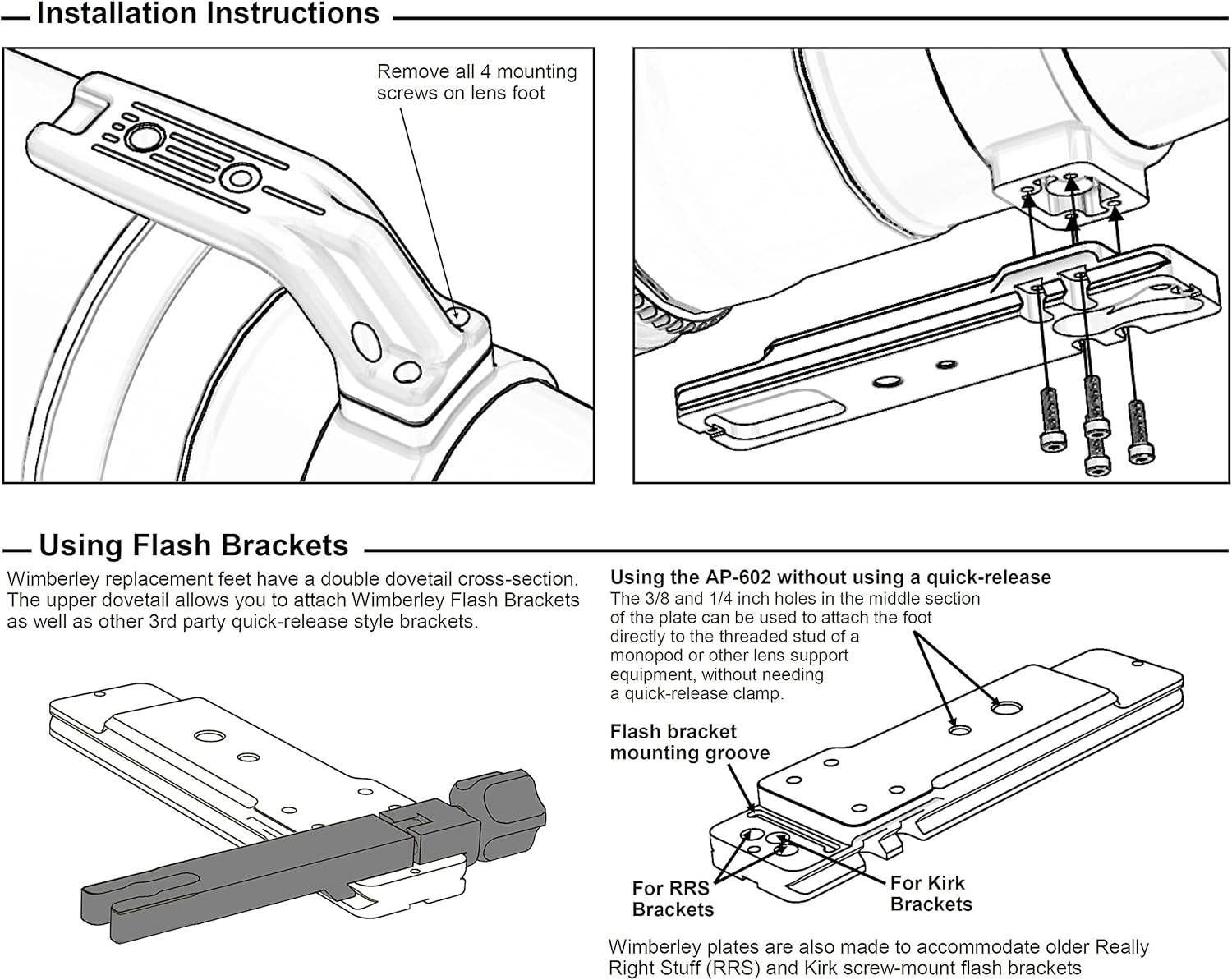

About the AP-602 Replacement Lens Foot The AP-602 replaces the stock foot on Canon Lenses (See list below, Image of compatibility chart, or our site). When installed this support lowers the overall height of the supported 400mm, 600mm, and 800mm lens by about 1.5". The AP-602 is precision machined to slide right into an Arca-Swiss style quick-release clamp. It also has 1/4" and 3/8" tapped holes for mounting to non-quick-release tripod heads and monopods. All replacement feet feature the same dual safety stops and flash bracket compatibility as our lens plates.Note: This particular plate mounts so close to the lens that it is difficult to use the plate as a handle. Also note IS version I uses the screws from the existing foot for mounting. IS version II uses included mounting screws for mounting. For use on the following Lenses Canon 400 f/2.8 IS version I and II Lenses Canon 600 f/4 IS version I and II Lenses Sigma 500 f/4 DG OS HSM Lens What's Included AP-602 Arca-Swiss Style replacement lens foot (Qty 1) Mounting Screws – M4 x 14mm Socket Head Cap Screw (Qty 4) Safety Stop Screws - M3 x 6mm Socket Head Cap Screw (Qty 2) Hex Key – 3mm T-handle (Qty 1) Hex Key – 2.5mm (Qty 1) Not compatible with most Manfrotto or Gitzo clamps
- Replaces the factory foot of your lens, lowering the center of gravity for optimal balance
- Adds a built in double dovetail for Arca Swiss compatibility
- For Canon 400 f/2.8 IS I & II and 600 f/4 IS I & II
- Anodized 6061 Aluminum, stainless steel fasteners
- Made in USA. Assembled in Charlottesville, Virginia
| UPC | 753182834047 |
|---|---|
| Lens | Lens Accessory |
| Brand | WIMBERLEY |
| Lens Mount | Canon EF |
| Model Name | Wimberley AP-602 |
| Unit Count | 1.0 Count |
| Camera Lens | The Wimberley AP-602 is a replacement lens foot designed to lower the center of gravity and add Arca-Swiss compatibility to your Canon 400mm f/2.8 IS I & II, 600mm f/4 IS I & II, or Sigma 500mm f/4 DG OS HSM lens. This foot replaces the factory foot, improving balance and compatibility with Arca-Swiss style tripod heads and gimbal heads. |
| Item Weight | 0.42 Pounds |
| Lens Design | Prime |
| Manufacturer | Wimberley |
| Maximum Aperture | 56 Millimeters |
| Minimum Aperture | 56 Millimeters |
| Compatible Devices | Camera |
| Maximum Focal Length | 800 Millimeters |
| Minimum Focal Length | 400 Millimeters |
| Compatible Camera Mount | Canon EF |
