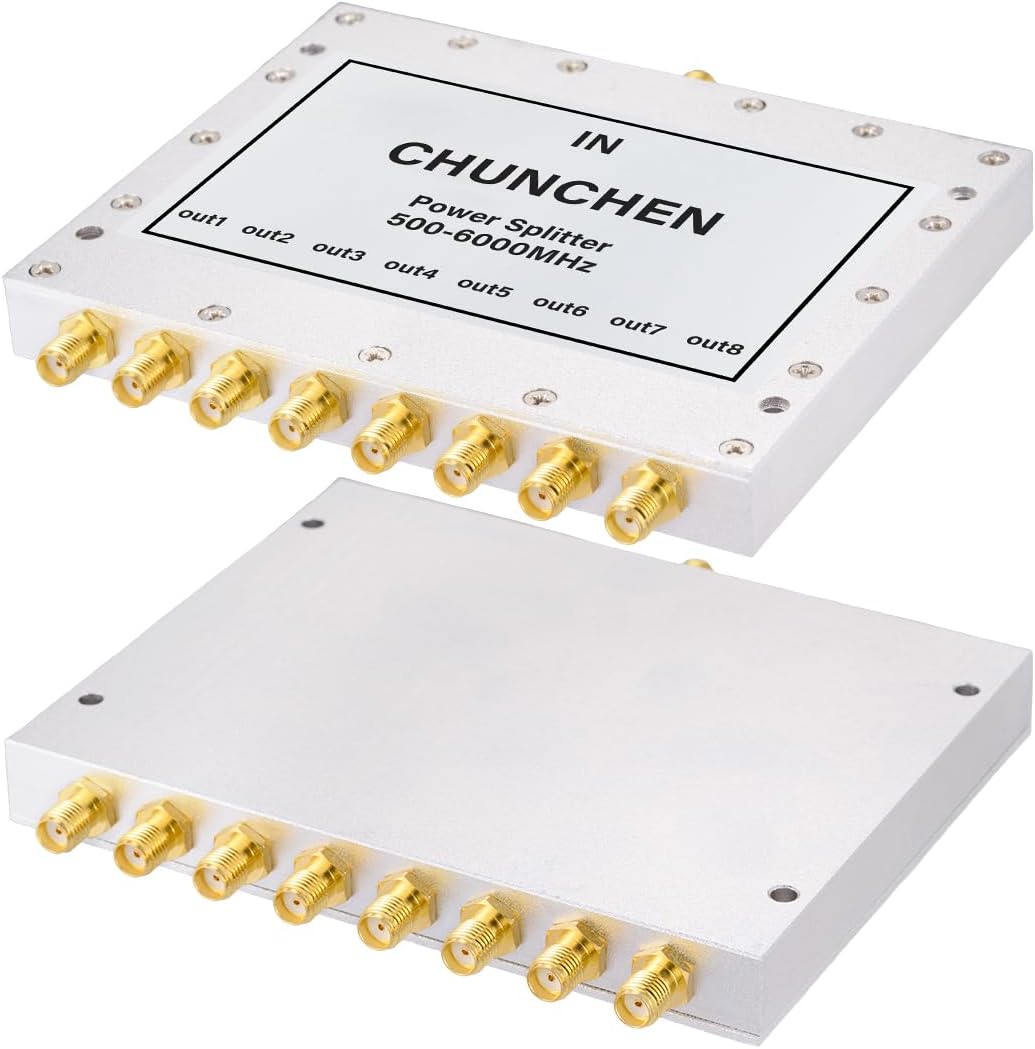

8 Way 0.5-6GHz Power Splitter 50 Ohm SMA Female Connector Signal Splitter 500Mhz-6000Mhz Cable Signal Splitter 1 Input 8 Output for Antenna Cable

Product Details：Product name: 0.5-6GHz SMA female connector 8 way signal splitter Connector port: 1 input and 8 output Output port type: 8 way Connector type(Input): SMA female Connector type(Output)*8: SMA female Product material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 500-6000Mhz Inputsertion loss (dB): 10-13 Isolation (dB): ≤20 VSWR: ≥1.1; ≤1.7 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 11.4*11*1.3cm Package: 1 x SMA female 8 way power splitter Weight: 300 g

• Product name: 0.5-6GHz SMA female 8 way power splitter 1 input 8 out;
• Connector port: 1 input and 8 output; Output port type: 8 way; Connector type(Input): SMA female; Connector type(Output)*8: SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
• Specification: Frequency range (GHz): 500-6000Mhz; Insertion loss (dB): 10-13; Isolation (dB): ≤20; VSWR: ≥1.1, ≤1.7; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 11.4*11*1.3cm;
• Applicaion: Provides 8 amplified SMA female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x SMA female 8 way signal splitter(Weight:300g).
