Sipeed LicheeRV Nano RISC-V Development Board, WiFi 6 Ethernet AI Vision RISCV Sensor, 1TOPS NPU 1GHz RISC-V C906 CPU, 2Gbit DDR3 RAM 100M RJ45 Port, Support Linux Debian (LicheeRV-Nano-WE 2pcs)
4.7 (117 items)
Limited Time Sale$25.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212233286 | Release Date | 2026/04/06 | List Price | $16.80 | Model Number | 212233286 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

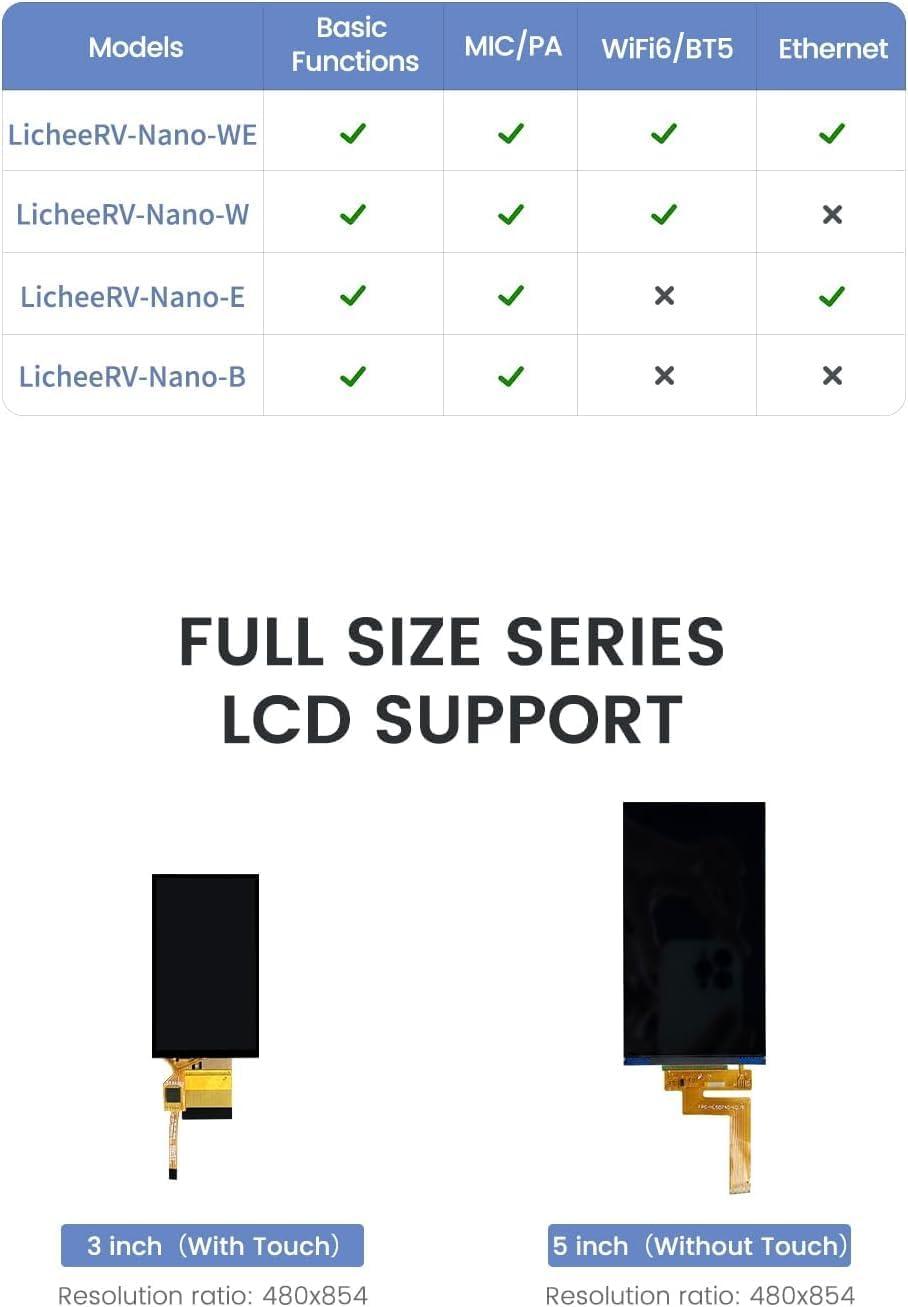

--Tips--Standard Version (B): No network accessoriesNetwork Port Version (E): Onboard 100M network portWiFi Version (W): Onboard WiFi6/BT5.2 module, BT5.2 function is not enabled by default. If you need to use the Bluetooth function, you need to paste 4 0201 resistors here or use a 2B pencil to fill in the short circuitWiFi Network Port Version (WE): Onboard WiFi6/BT5.2 module, and a network port board is provided, which is connected to the development board through copper pillars and flat cablesNote: 70415 and above versions can use 0402*4 resistors for short circuitThe camera module(GC4653) features non-short-circuiting screw holes on both sides for secure mounting. It is recommended to fix the standoffs to the fifth pad for optimal stability.-Specification-CPU Arithmetic SG2002;Large core: 1GHz RISC-V C906 / ARM A53;Small core: 700MHz RISC-V C906;Low-power core: 25-300M 8051NPU: 1TOPS INT8, support BF16Memory: Internal 2Gbit (256MByte) DDR3Memory: TF card / SD NAND dual boot (SD NAND pad under TF card slot)Video Output Video Output: 2 lane MIPI DSI output, standard 31pin connector, supports 6pin capacitive touchscreenVideo Input: 4 lane MIPI CSI input, 22pin connector, support split dual-lane CSIAudio Interface: Audio Output: On-board PA amplifier, can be directly connected to speakers up to 1W on the row of pins.Audio input: onboard analog silicon microphone, can be directly connected to the radioWired connection E suffix version: support for 100G RJ45 connectorWireless connection W suffix version: support 2.4G / 5.8G dual-band WiFi6 + BLE5.4USB: 1 x USB2.0 OTG Type-CIO Interface: 2 x 14pin 2.54 pin connector, 800mil pitch, breadboardableButtons 1 x RST button + 1 x BOOT buttonIndicators: 1 x Power LED, 1 x User LEDOS: Buildroot Linux / DebianDimension : 22.86*35.56mm

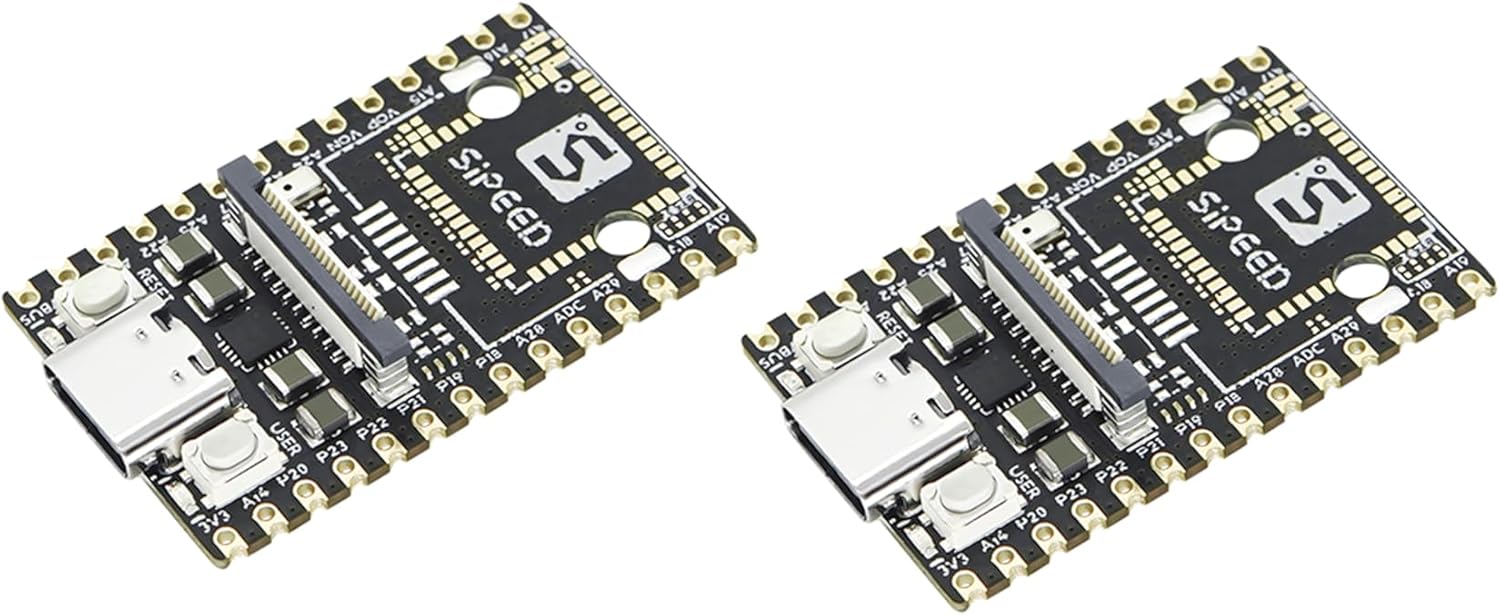

- LicheeRV Nano is a mini-sized RISC-V development board, equipped with the SG2002 processor, large core 1GHZ (RISC-V/ARM optional), small core 700MHZ RISC-V, 256MB DDR3 memory, built-in 1Tops NPU, support BF16; 25~300M 8051 low-power core.
- LicheeRV Nano RISC-V development board has rich interfaces such as MIPI-CSI, MIPI-DSI, SDIO, ETH, USB, SPI, UART, I2C, etc., which can be expanded to a variety of applications. Support TF card / SD NAND two-choice boot (SD NAND pad is under the TF card slot).

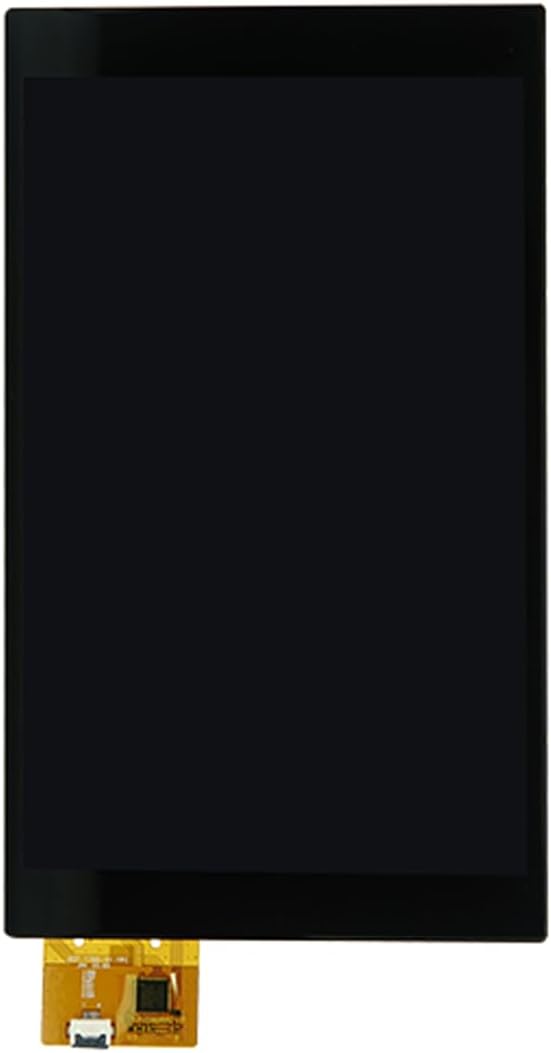

- LicheeRV Nano RISC-V Single Board Computer Onboard video interface: Video output: 2 lane MIPI DSI output, standard 31pin interface, support 6pin capacitive touch screen. Video input: 4 lane MIPI CSI input, 22Pin interface, supports split dual-channel CSI.
- LicheeRV Nano RISC-V Single Board Computer onboard audio interface: Audio output: Onboard PA amplifier, can directly connect speakers within 1W on the pin header. Audio input: Onboard analog silicon microphone, can directly receive sound.

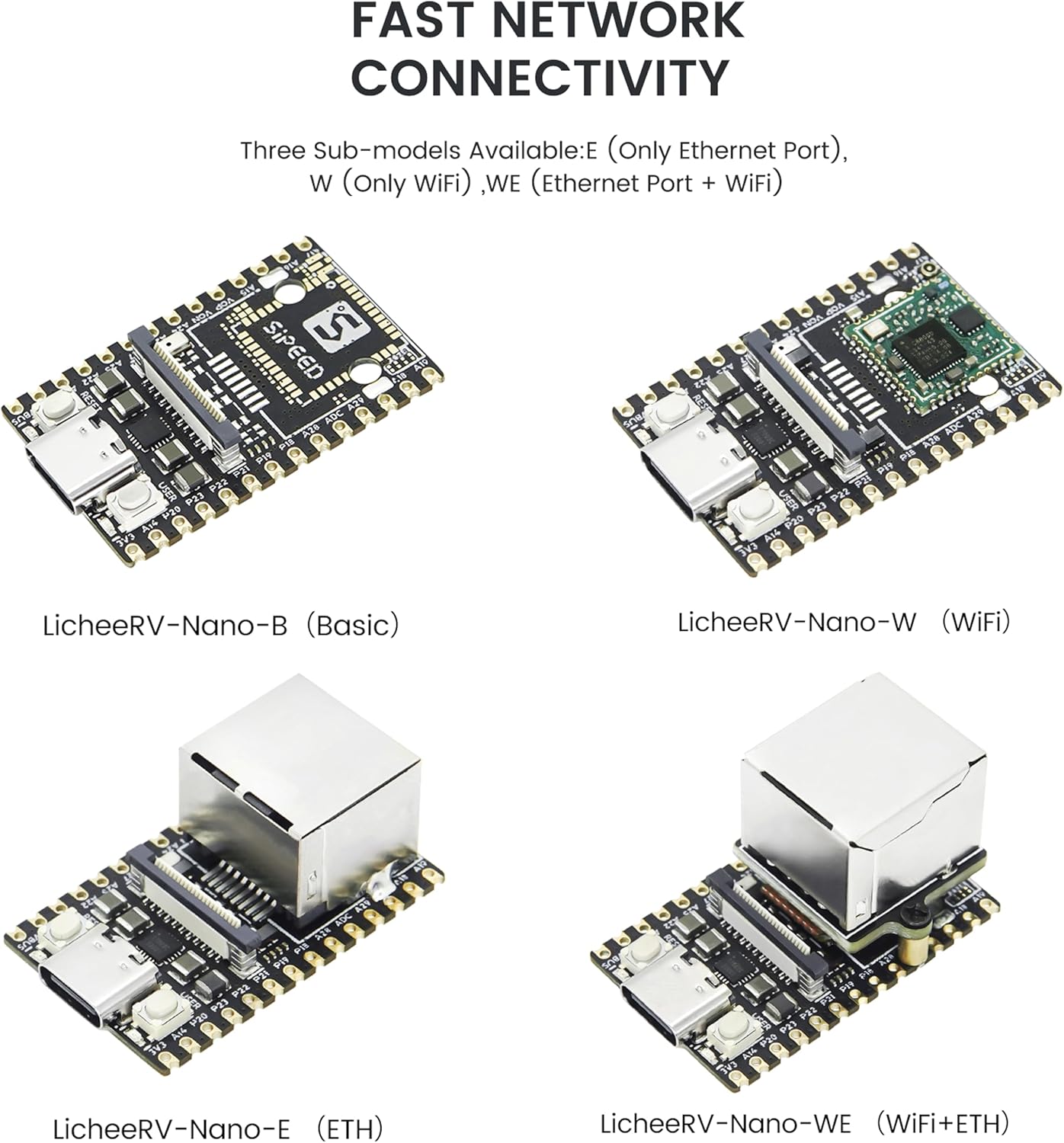

- LicheeRV Nano RISC-V Single Board Computer supports wireless connection: W/WE version supports 2.4G/5.8G dual-band WiFi6 and BLE5.4, wired connection: E version supports 100M RJ45 connector.
- Wide Application: LicheeRV Nano RISC-V development board supports building MMF development environment, supports mainline buildroot, and also supports openwrt, alpine linux and Debian image systems.
- After-sales Service: Getting Started or SDK Document: "wiki.sipeed.com/hardware/en/lichee/RV_Nano/2_unbox.html". All technical, after-sales and bulk orders questions, please leave the message to “wpd#youyeetoo &com (#--->@,&--->.)” or please click “WayPonDEV” store and ask the question.
| Brand | WayPonDEV |
|---|---|
| Model Name | Sipeed LicheeRV Nano RISC-V Development Board |
| Manufacturer | WayPonDEV |
| Model Number | Sipeed LicheeRV Nano RISC-V SBC |
| BuiltIn Media | Sipeed LicheeRV Nano RISC-V SBC x2 |
| Mfr Part Number | LicheeRV Nano |
| Processor Speed | 1 GHz |
| Total Usb Ports | 1 |
| Operating System | Debian, Linux |
| Compatible Devices | Camera, Screen |
| RAM Memory Installed | 256 MB |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| RAM Memory Technology | DDR3 |
| Connectivity Technology | Bluetooth, Ethernet, GPIO, Wi-Fi |
