RS485 to WiFi/Ethernet Converter Module RS485 to ETH Rail-Mount Serial Server Modbus/MQTT Gateway
4.8 (59 items)
Limited Time Sale$22.46 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212249943 | Release Date | 2026/04/06 | List Price | $14.97 | Model Number | 212249943 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

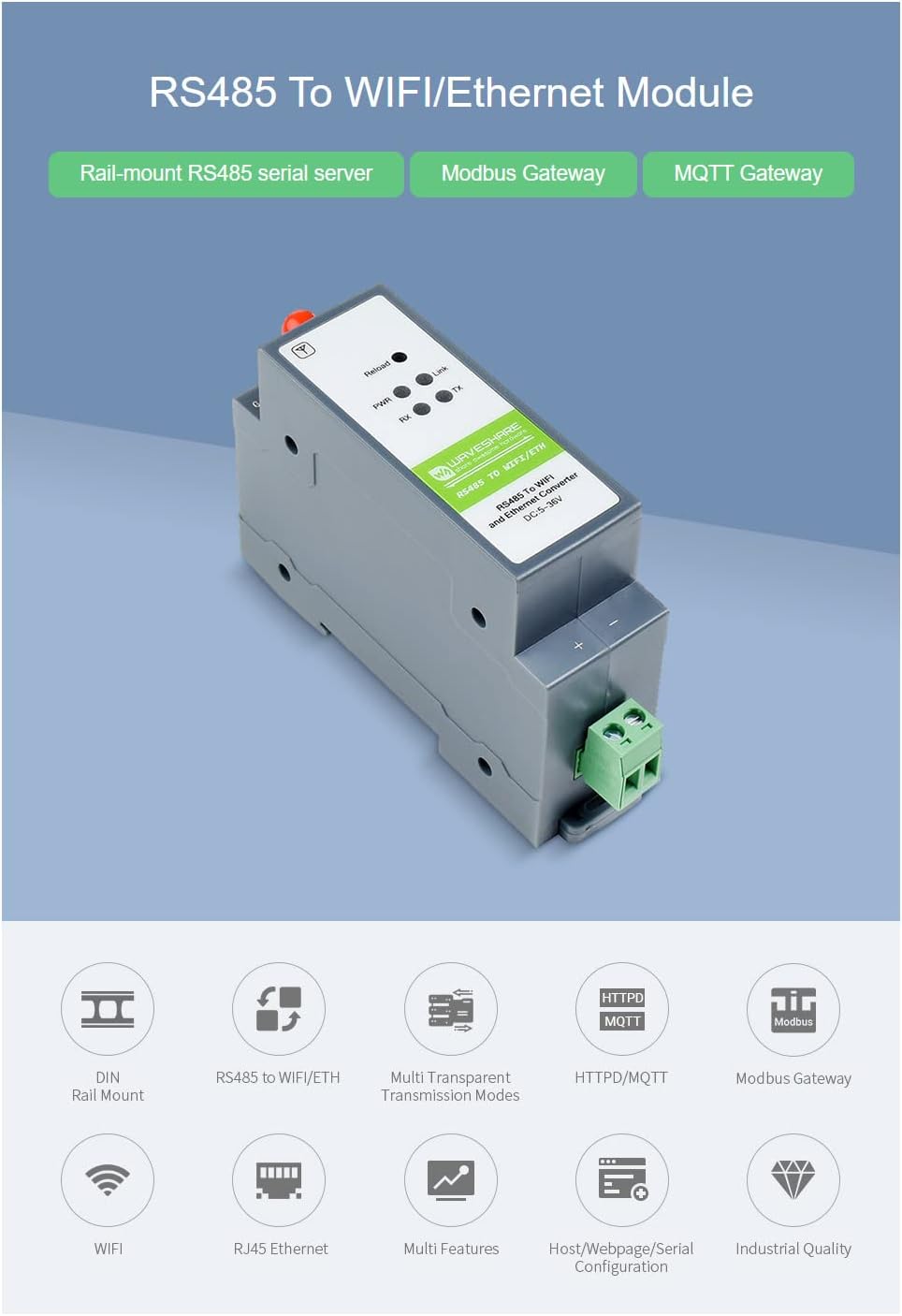

Features This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD Client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... Package include Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply 1. RS485 TO WIFI/ETH x1 2. Antenna x1 Resource available: http://www.waveshare.com/wiki/RS485_TO_WIFI/ETH
- RS485 to WiFi converter with primary Function: Support RS485 To WIFI, RS485 To Ethernet, Ethernet To WIFI, Etc.
- RS485 to Ethernet Converter with rail-Mount Serial Server: Industrial Rail-Mount Support, Easy To Install, Compact Size, Cost-Effective
- RS485 to ETH converter, support Transparent Transmission Mode: Supports TCP Server / TCP Client / UDP Server / UDP Client

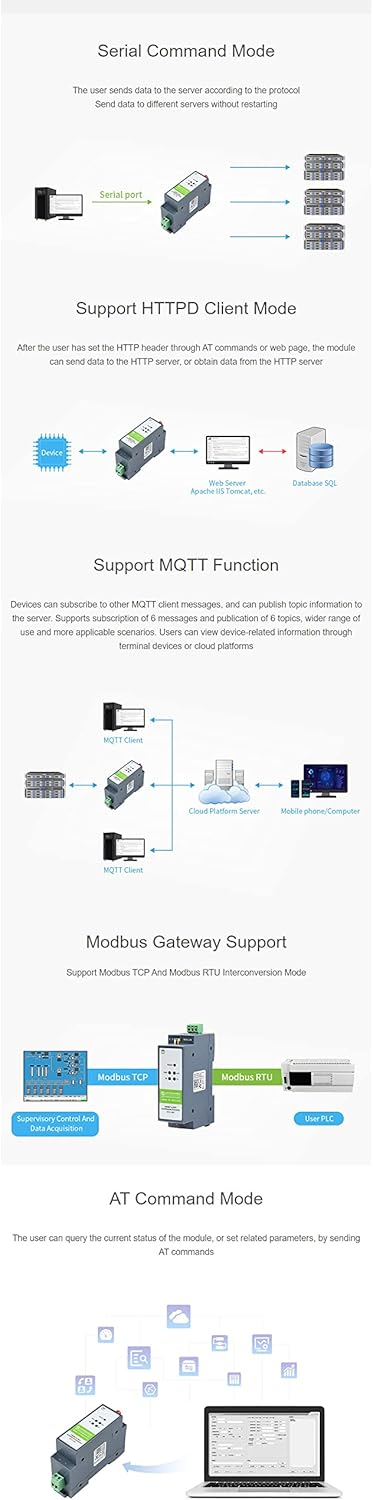

- Serial Command Mode: The user sends data to the server according to the protocol; Send data to different servers without restarting
- Support HTTPD Client Mode: After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
| UPC | 749877649140 |
|---|---|
| Brand | Coolwell |
| Model Name | RB-Wav-541 |
| Unit Count | 1.0 Count |
| Chipset Type | Intel B360 |
| Manufacturer | Coolwell |
| Model Number | RB-Wav-541 |
| Number of Ports | 3 |
| Compatible Devices | Industrial RS485 devices (PLCs, sensors, etc.) |
| Graphics Card Interface | Integrated |
| Number of Ethernet Ports | 1 |
| Main Power Connector Type | Screw Terminal |
