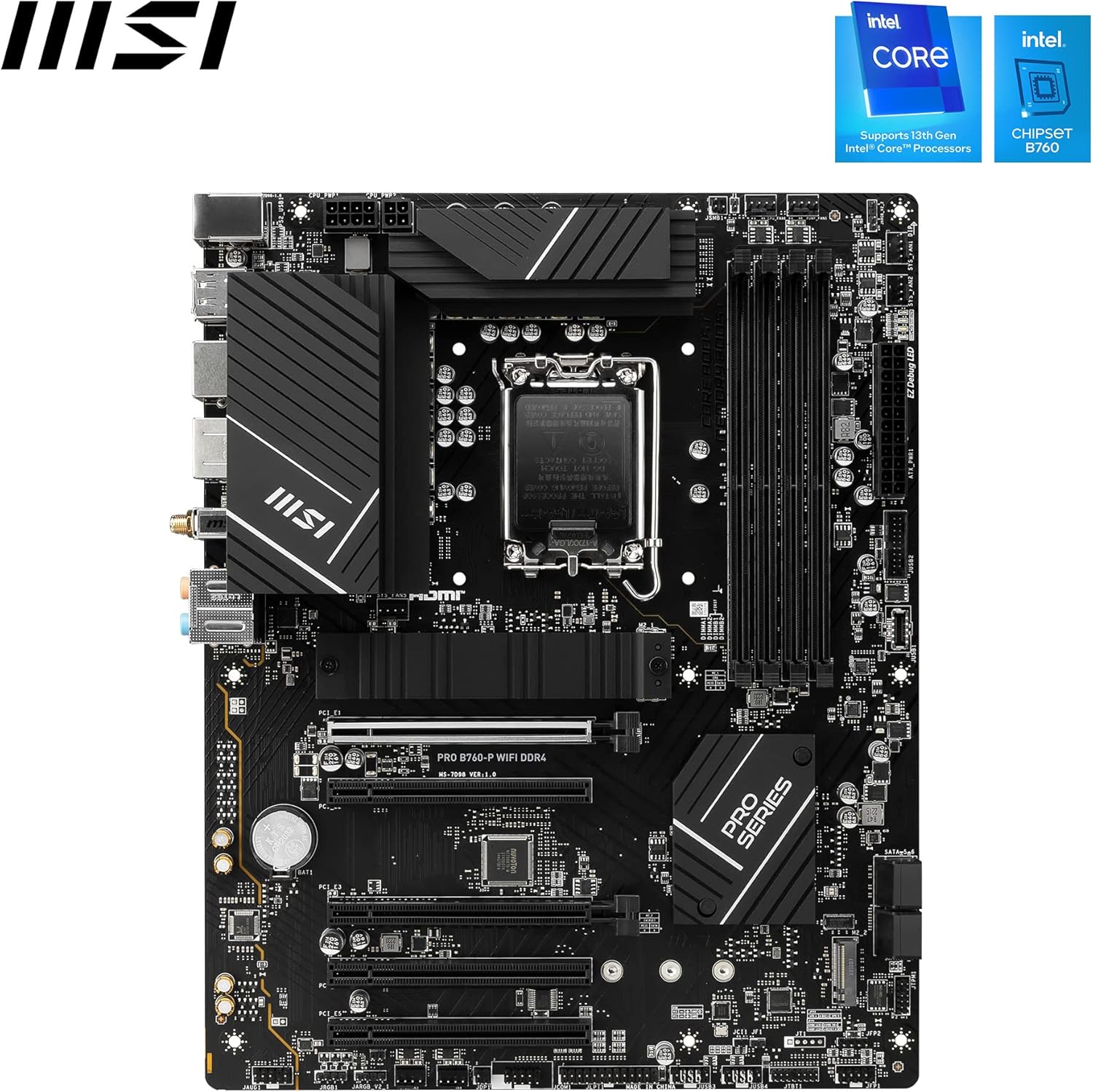

MSI PRO B760-P WiFi DDR4 ATX Motherboard, 4X DDR4~128GB, 5X PCI-E x16, 2X M.2, 4X SATA, 2X USB 3.2, 4X USB 2.0, 1x USB-C
4.3 (69 items)
Limited Time Sale$128.93 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212257052 | Release Date | 2026/04/06 | List Price | $85.96 | Model Number | 212257052 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MSI PRO B760-P WIFI DDR4 ATX Motherboard, 4x DDR4~128GB, 5x PCI-E x16, 2x M.2, 4x SATA, 2x USB 3.2 , 4x USB 2.0, 1x USB-C Specifications: CHIPSET INTEL B760 CPU SUPPORT Supports 12th/13th Gen Intel?� Core?�� Processors, Pentium?� Gold and Celeron?� Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) ONBOARD GRAPHICS 1x HDMI?�� 1x DisplayPort Support HDMI?�� 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* EXPANSION SLOT 5x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) STORAGE 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C OPERATING SYSTEM Support for Windows?� 11 64-bit, Windows?� 10 64-bit PCB DIMENSION ATX 243.84mmx304.8mm
| Brand | msi |
|---|---|
| USB 20 | 4 |
| Platform | Windows 10, Windows 11 |
| CPU Model | Intel Core i9 |
| Model Name | B760-P |
| Item Weight | 1.18 Kilograms |
| Chipset Type | Intel B760 |
| Manufacturer | MSI |
| Model Number | 7D98-001R |
| Number of Ports | 14 |
| Total Usb Ports | 14 |
| Processor Socket | LGA 1700 |
| Total PCIe Ports | 5 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 5333 MHz |
| SPDIF Connector Type | Optical |
| Compatible Processors | Intel Celeron, Intel Pentium |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI-Express x16 |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 128 GB |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
| Global Trade Identification Number | 04711377028363 |
