MEAN WELL original DR-120-12 12V 10A meanwell DR-120 12V 120W Single Output Industrial DIN Rail Power Supply
4.1 (37 items)
Limited Time Sale$52.31 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212282925 | Release Date | 2026/04/06 | List Price | $34.87 | Model Number | 212282925 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

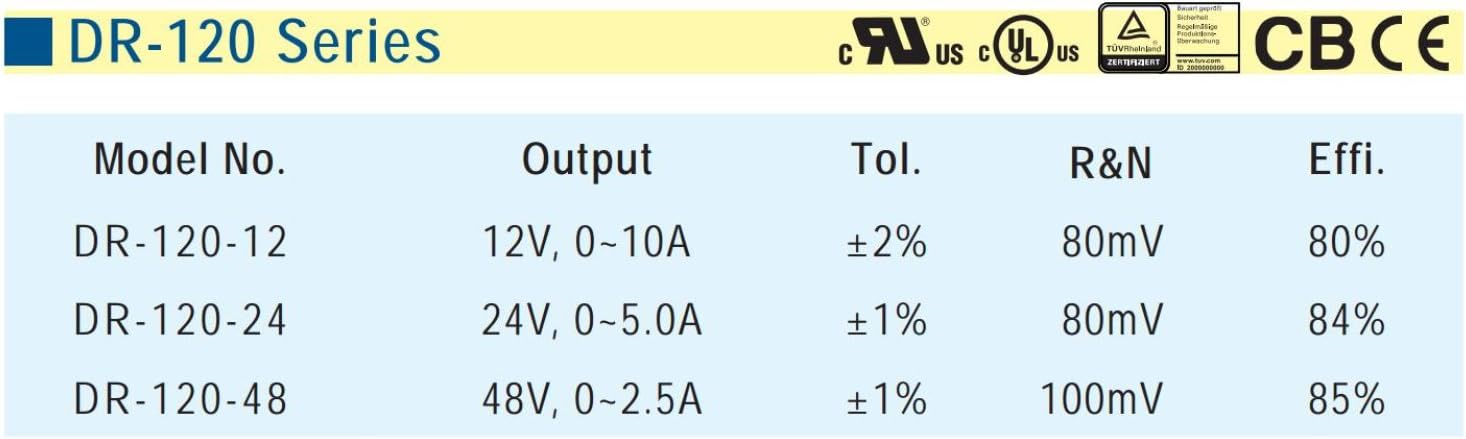

Features:AC input selectable by switchProtections: Short circuit / Overload / Over voltage / Over temperatureCooling by free air convectionCan be installed on DIN rail TS35 / 7.5 or 15UL508 (industrial control equipment) listed100% full load burn-in testLED indicator for power on3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)AC input voltage range:90~132/180~264VAC selectable by switchAC inrush current (230VAC):40ADC adjustment range:12V: 12~14V, 24V: 24~28V, 48V: 48~53V%Overload protection:105%~150% constant current limiting, auto-recoveryOver voltage protection Range :115%~142% rated output voltageOver voltage protection Type:Shut off, AC recycle to re-startOver temp. Protection:Shut down output voltage, recovers automatically after temperature goes downWithstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minuteWorking temperature:-10~+60°CSafety standards:UL508, TUV EN60950-1, UL60950-1 approvedEMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry levelConnection:I/P: 3 poles, O/P: 4 poles screw DIN terminalDimension (LxWxH):65.5x125.2x100Case No.:921APacking:20pcs / 16.5kg
- Output Voltage: 12V
- Approx. Wattage: 120W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Can be installed on DIN rail TS35 / 7.5 or 15
- Warranty: 3 Years Warranty
| UPC | 647336000504 |
|---|---|
| Model | DR-120-12 |
| Brand Name | MEAN WELL |
| Item Weight | 0.8 Kilograms |
| Part Number | DR-120-12 |
| Manufacturer | Mean Well |
| Power Source | Corded Electric |
| Mounting Type | Rail Mount |
| Current Rating | 10 Amps, 40 Amps |
| Specification Met | CE, UL |
