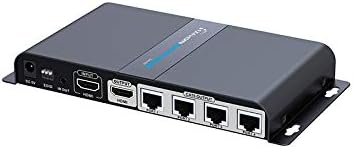

Up to 40m/131ft with Loop-Out Local Display,LKV714Pro HDMI POE Extender 1080P@60HZ 1x4 Splitter Device Over CAT6/6A/7/8 Cable,Support IR Remote Control,EDID Function

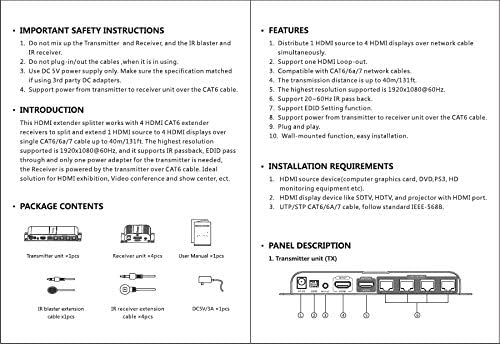

INTRODUCTION: This HDMI extender splitter works with 4 HDMI CAT6 extender receivers to split and extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920x1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect. Features: 1. Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously. 2. Support one HDMI Loop-out. 3. Compatible with CAT6/6a/7 network cables. 4. The transmission distance is up to 40m/131ft. 5. The highest resolution supported is 1920x1080@60Hz. 6. Support 20~60Hz IR pass back. 7. Support EDID Setting function. 8. Support power from transmitter to receiver unit over the CAT6 cable. 9. Plug and play. 10. Wall-mounted function, easy installation.Package: 1 * HDMI Extender Transmitter 4 * HDMI Extender Receivers 1 * Power adapters 1 * IR Blaster cable 4 * IR Receiver cables 1 * User Manual

• ALL-IN PACKAGE – Includes 1 Transmitter and 4 Receivers. Extend and distribute 1 HDMI source to 4 HDMI displays over CAT5e/6/7 simultaneously. **NOTE: If you live in an area with thunderstorms, plug this product's power adapter into a surge protecter power strip to protect your device from voltage spikes.
• HDMI LOSSLESS/UNCOMPRESSED TRANSMISSION – It extends HDMI audio/video signals to synchronous output video display(s) is as fluent as direct connection; Supports 480i/480p/720p/1080i/1080p at 60Hz video resolutions and surround sound up to 7.1-channel or stereo digital audio; Compatible with HDCP compliant devices & content
• VIDEO TRANSMISSION – Up to 40m (130ft) at 1080p@60Hz with CAT5e/6/7. Good quality CATx cables are essential in delivering quality content.
• IR REMOTE CONTROL – Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5e/6/7 cable for your convenience. !!!NOTE!!! this kit will NOT through a router/switch based TCP/IP network
• EASY INSTALLATION – No driver required; Surface mountable metal housing allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference. FCC, CE & RoHS compliant.
