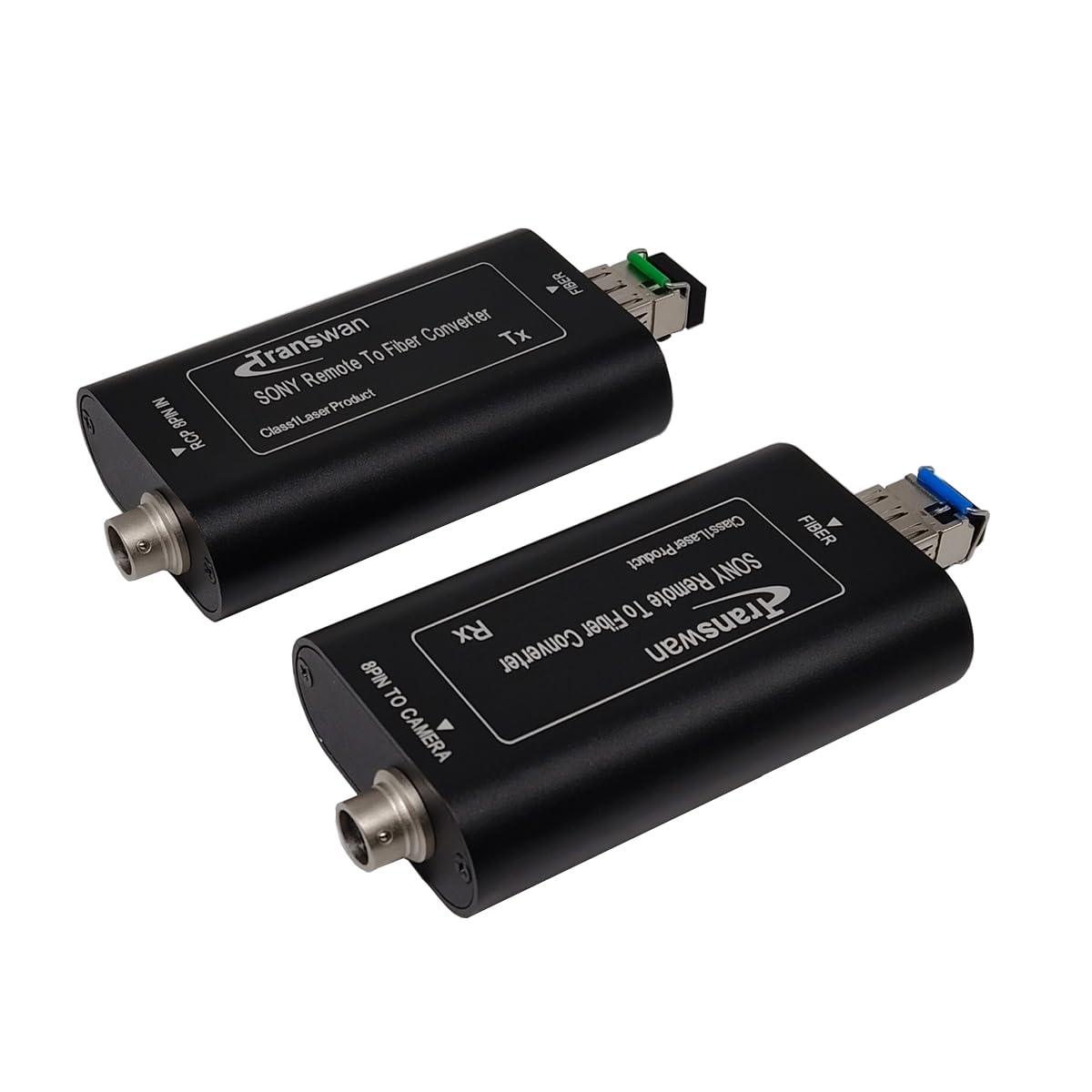

Camera 8 Pin Remote Controller RM-B150 to Fiber Converter Over 0~10 Kilometers Single-Mode Fiber (BY-SRCP-915DF(Over 2 Strands SMF))

BY-SRCP-915 over Fiber Extender can Extend Camera 8 Pins Remote Control unit over Optic Fiber Cable to 10Km Remote Place. It breaks through the 50-meters Barrier of remote wire cable. It is connected between Camera and RM-B150 / RM-B170 / RM-B750 etc, so It also helps the users save the long and heavy & expensive wire cable. Specs Fiber Optical Wavelength: 1310/1550nm or 1310nm Output Power: -10~-3dBm Optical fiber: Single mode Fiber or Multimode Fiber Rx sensitivity: <-18dBm Optical connector: 1 x LC or 2 x LC optional Distance: 0~10KM (SMF Default) or 500 Meters (MMF) Remote Signal Connector : 8 Pin Female for Tx, 8 Pin Female for Rx Standard: Support So-ny Camera Remote Control protocol Applicable Models: 1) HDCU-1000/1500 CCU 2) CCU-790P/590P CCU 3) RCP-700/701/750/751 Remote Control Panels 4) MSU-900/MSU-950 Master Setup Unit 5) RM-B150, RM-B170 or RM-B750 General index Power supply: DC 5~12V Power consumption <5W Enclosure Small Size: 108 x 22 x 52 mm Net weight: 450g /pair (with Power supply) Case Material: Aluminum Alloy Work Temp: -20°C to 55°C Storage Temp: -20°C to 70 °C humidity: 0 ~ 95% (non-condensing) Package Includes: 1) 1 x Transmitter with SFP module at RCP side 2) 1 x Receiver with SFP module at Camera side 3) 2 x Power Supply Adapters

• Extending Camera 8 Pin Remote Control over Optical Fiber Cable to 0~10Km
• Support Single-mode & Multi-mode, With 1 x LC/PC SFP or 2 x LC/PC SFP
• Small size and light weight, easy carry
• Plug and play, No Need Software
• Be compatible with RCP RM-B150, RM-B170 or RM-B750 etc
