Motor Speed Controller, 20A 10-60V 12V 24V 36V 48V PWM DC Motor Speed Controller Regulator Switch Module PWM Motor Speed Regulator

Specification: Input voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor) Output voltage: Linear output under load Current: 0-20A (Limited value 20A) Regulating type: regulating current Regulating method: potentiometer(270° linear) Regulating speed range: 0-100% Control frequency: 15KHZ Knob: 10K(with switch) Size: Approx. 9.6 x 6.1 x 3.4cm / 3.78 x 2.4 x 1.34inch Weight: 107g Package Included: 1 x DC Motor Speed Controller Note: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking protection is not a power cut, it is the limited current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.

• ★【Special Design】: This DC motor speed regulator has soft start which can solve the damage caused by instantaneous high current to speed controller

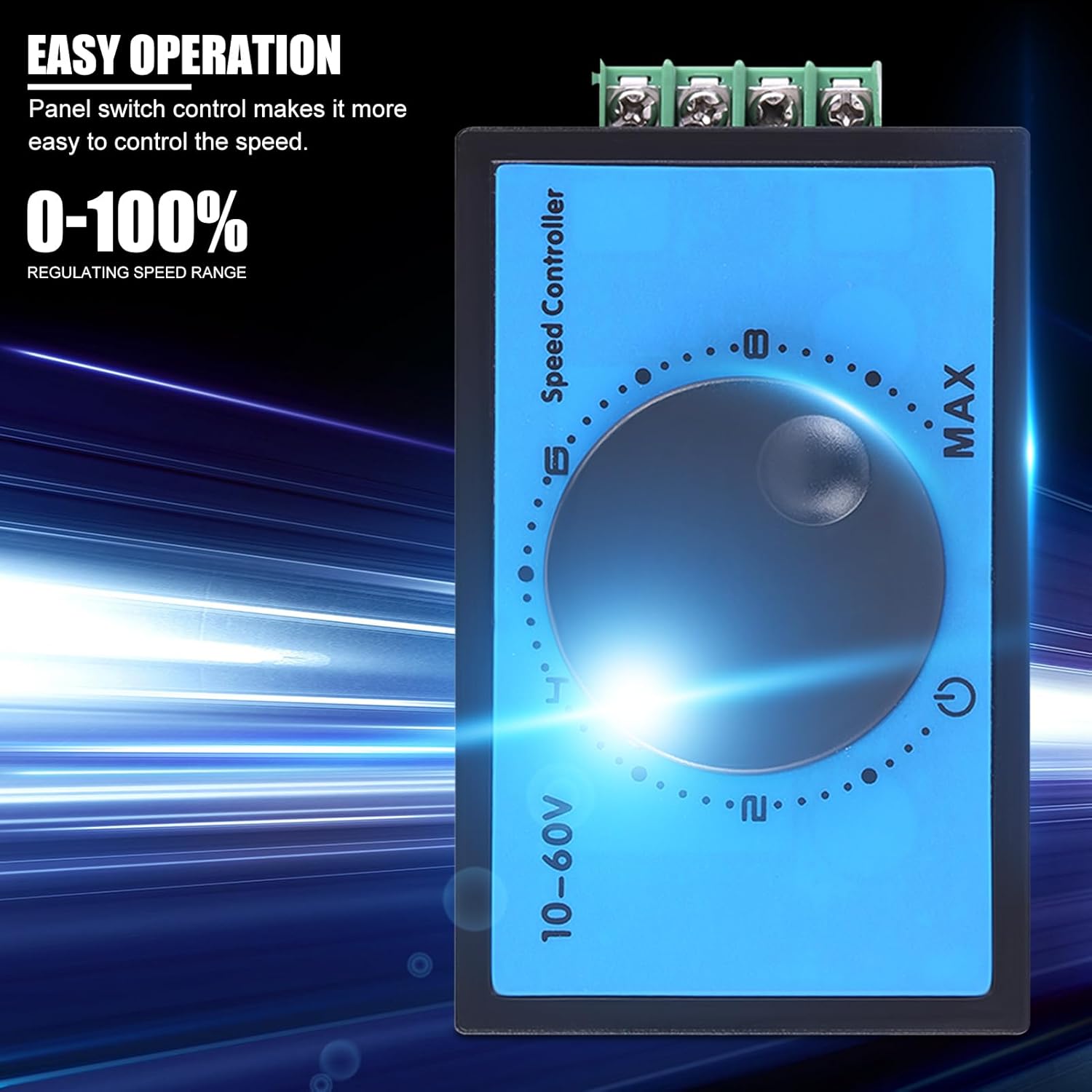

• ★【Panel Switch Control】: The PWM motor speed regulator has panel switch control which makes it more easy to control the speed
• ★【Premium Quality】: The motor speed controller is made of metal and plastic which is durable and compact, it can prolong the product service life

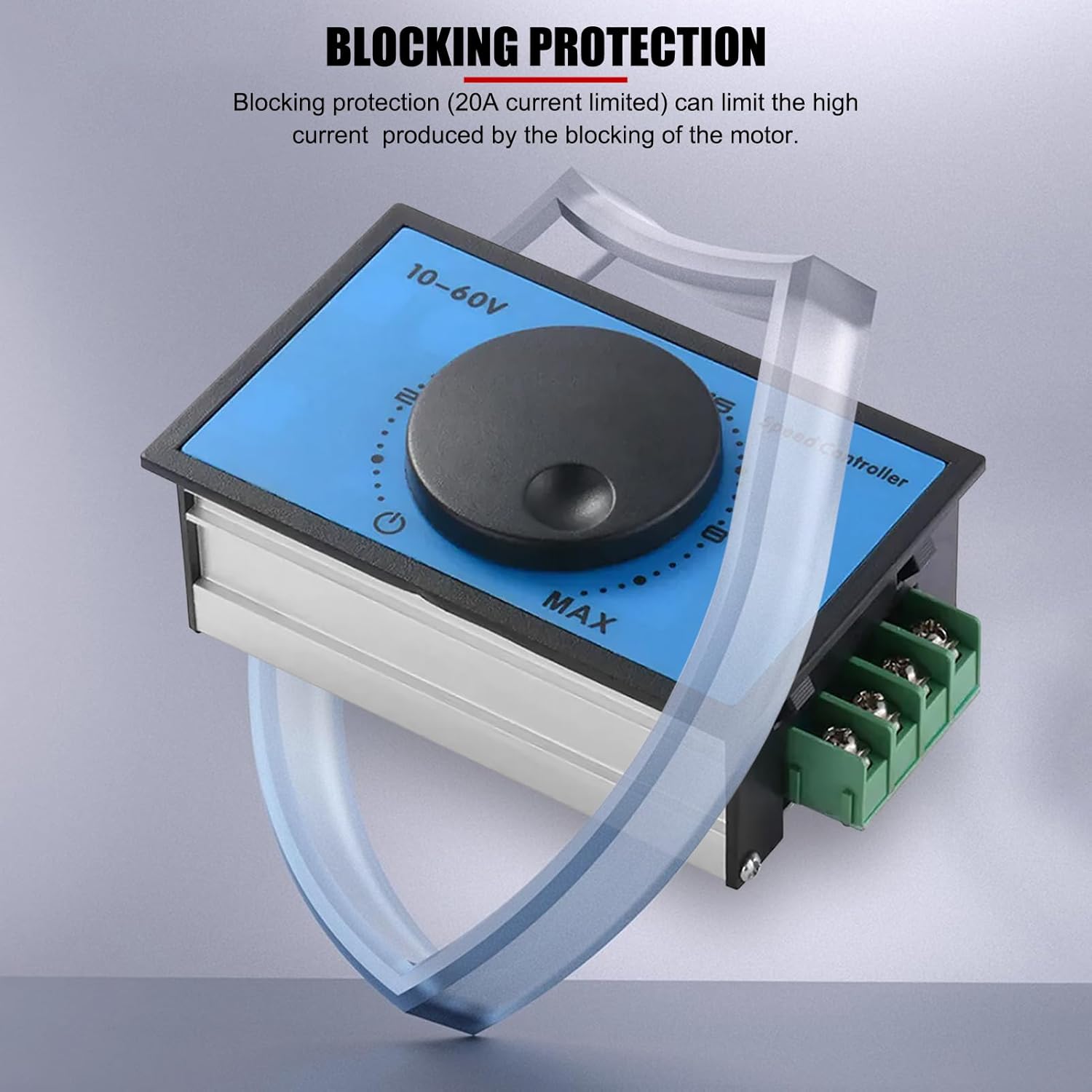

• ★【Protective Function】: This motor speed controller supports blocking protection(20A current limited) which can limit the high current produced by the blocking of the motor, it is also with low voltage and stall/over-current protection
• ★【After sale】：If you have any dissatisfaction with our products, please contact us in time, we will serve you wholeheartedly！
