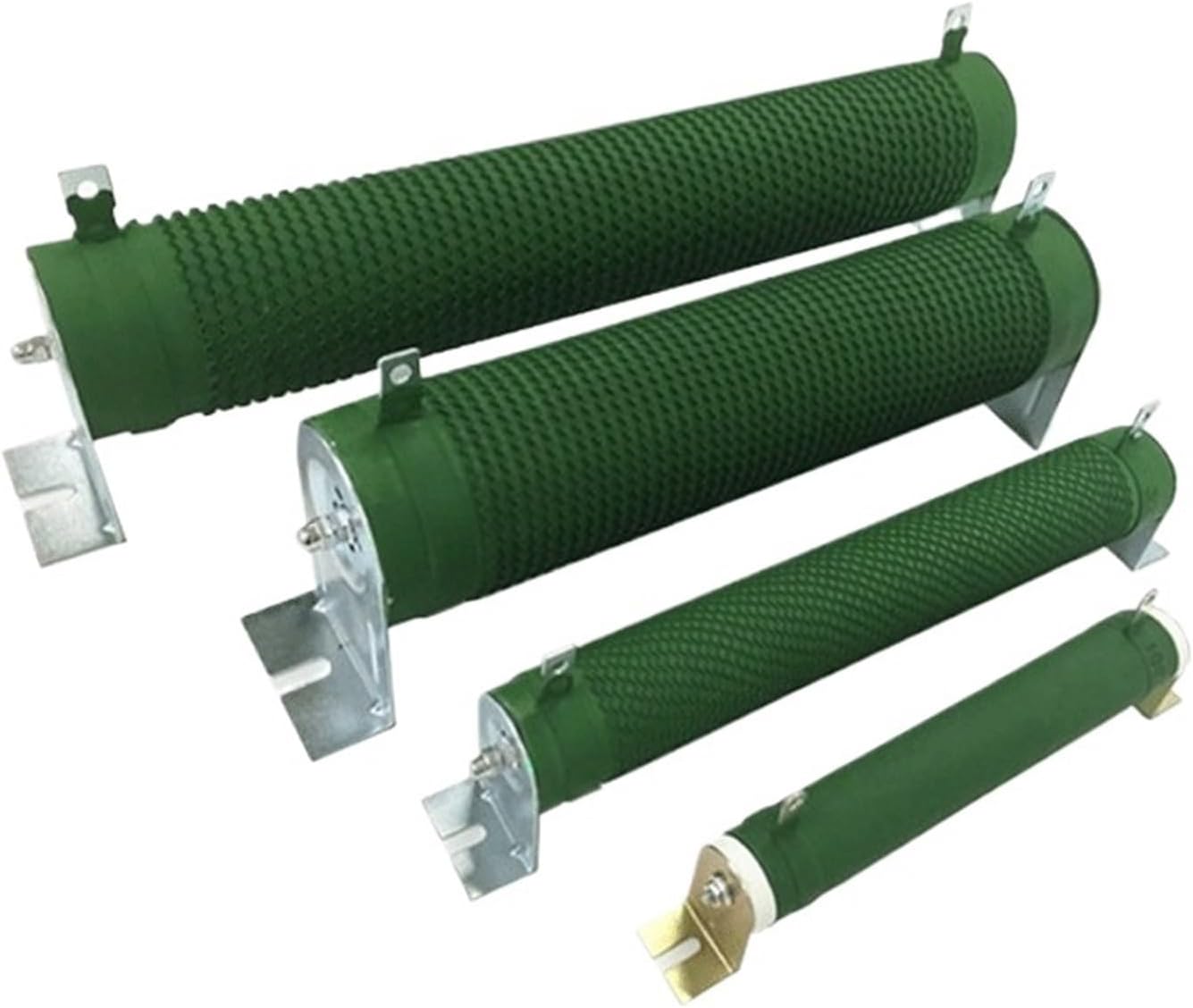

600w 800w 1000W RXG20 ripple resistor,waved ribbon power wire wound resistor, brake resistor,load resistor(75 ohm,800W)

Resistor Units600w 800w 1000W high power ripple resistor,waved ribbon power wire wound resistor, brake resistor,load resistorNote:1. This product is a non-flammable resistor. When it is used for the first time, it may cause smoke. This is normal. Please feel free to use it.2. This resistor non-combustible coating meets the non-combustibility test. V-0 rating, burning duration is 0seconds3. Non-flammable resistors cannot be cleaned with organic solvents4. Non-flammable resistors cannot be used in oil5. Non-flammable resistors cannot be used on high frequency machines because of the inductance generated by the winding group.6. In order to prevent aging over time, please ensure that the power used is within a reasonable range.7. When the non-flammable resistor is at full load, the surface will produce a high temperature of about 350 -400. Please do not touch it by hand, and to ensure that the resistor can be used for a long time, please ensure that the surface temperature of the resistor is lower than 2001.Power Derating Curve:Rated power is the highest using power under 70and continuous duty.at the same time,the overload power is fit formechanical properties and electrical properties,when the temperature is over 70,the power must be derated in accordance with the curve as below:2.About Rating Voltage:The following equation may be used to determine the DC(Direct Current) or AC(Alternating Current)(RMS,root mean square value)of normal rated power.However,if the result value exceeds the max.using voltage,the max.using voltage is to be used:3.Standard electrical specifications:Rated Power at 40Resistance()Max.Rating Voltage(UR)Max. Overload VoltageInsulation Voltage(UN)T.C.R. PPM/Operating Temperature<;50W0.1~1K350V500V1500V±100-55~+27550W~500W0.1~2K500V650V2000V±250P>500W0.1~5K650V1000V3000V±5004.Main testing items and experimental methods and performance requirements:Test itemsPerformance requirementsexperimental methodTemperature coefficient of resistor250(x10-6)-55/+2020/+125The strength of the terminal±(1%R+0.05)Withstand voltageNo breakdown2500V DC 1minSolderabilityThe solder can flow freely and wet withthe terminals235±52±0.5SHeat-resistant soldering±(1%R+0.05)260±510±1SShort-time overload±(2%R+0.05)10 times the rated power for 5SRapid temperature change±(1%R+0.05)-55/+125 Loop 5 timesvibration±(1%R+0.05)10-500Hz 98m/s2Long-term load±(2%R+0.05)+70±2VR 1000hNon-combustibilityDoes not burn1-6 times rated power for 5 minutessurface temperature350Applied rated powerPulse tolerant±(0.2%R+0.05)MIL-STD-202 100g 6ms 10 timsSteady state damp heat±(2%R+0.05)+40±2humidity 95-98% 240h5.Dimensions:rated powerRange of resistance ()Shape size(mm)Resistance accuracyTemperature Coefficient==========Model Number : 600/800/1000WProduct name : resistor

• Resistor Units
• 1kw Resistor|High Power Capacity:Choose from 600W, 800W, or 1000W RXG20 resistor, ideal for high-load applications.
• 1kw Resistor|High Power Rating:Boasting a robust 600W to 1000W rated power, this RXG20 resistor handles high-load applications with ease.
• 600w 800w 1000W RXG20 ripple resistor,waved ribbon power wire wound resistor, brake resistor,load resistor
• Extended Operating Range:Operates within a reasonable power range to prevent aging, maintaining performance over time.
