JIFETOR Cylinder Leak Down Tester Kit and Engine Compression Pressure Gauge Test Set

JIFETOR CYLINDER LEAK DOWN TESTER KITASSIST TO DETECT FOLLOWING ENGINE FAULTSWorn piston rings, worn valves, cracks in cylinder walls and blown head gasketsLOCATION OF LISTENING POINTS1.OIL DIPSTICK TUBE - for leakage from damaged or worn rings and/or cylinder wall2.RADIATOR FILLER - for cylinder wall cracks or head gasket leakage3.ADJACENT CYLINDER - for head gasket leakage4.TAIL PIPE - for exhaust valve leakage5.CARBURETTOR AIR INLET - for inlet valve leakage6.FUEL INJECTION THROTTLE BODY - for inlet valve leakageJIFETOR COMPRESSION TESTER SETWIDE USAGE AND FUNCTIONJIFETOR engine cylinder compression tester set is perfect for checking compression pressure on most gasoline/gas/fuel engine cylinder, but not suitable for most diesel engine because of the low pressure range 0-300PSIAssist to diagnose following problems:Valve stickingCarbon build-upCracked cylinder head or defective main gasketPoorly seated or worn piston ringsBurned or damaged pistonA variation in compression readings between cylinders is often a better indication of engine problems than the absolute values of compressionNOTE1.Please wear gloves and goggles when use2.These tools should be used by professional or under the guidance of a professional3.Always refer to the vehicle manufacturer's service instructions4.For cylinder leak down tester: Turn regulator knob fully anticlockwise before connecting to compressed air. Require an air pressure of 45 to 100psi. Ensure the air supply is clean and does not exceed the pressure quoted5.For compression tester kit: Always release the pressure via the release valve before disconnecting the tester. Set the throttle plates to the wide open position when test and return the throttle plates to the closed position after testing

• ENGINE CYLINDER LEAKAGE TEST: JIFETOR cylinder leak gauge set is designed to detect a variety of common engine faults including: worn piston rings, worn valves, cracks in cylinder walls and blown head gaskets. Available with either single gauge shows % of cylinder leakage (marked with color coded range HIGH MODERATE LOW SET), or twin gauge manifold show cylinder leakage and cylinder pressure (0-100psi/0-7bar). Suitable for any gasoline engine with 14, 12 or 10mm spark plugs.
• WORKING PRINCIPLE OF LEAKDOWN DETECTOR: Once the leakage tester has been connected to one of the cylinders, compressed air (45-100psi) is fed into that particular cylinder through the built in pressure regulator. Diagnosis is made by observing the amount of leakage that is indicated on the cylinder leakage gauge and by listening for leakage at various points of the cars system. The instruction has detailed introduces about notification, connection method, operation steps, fault diagnosis.

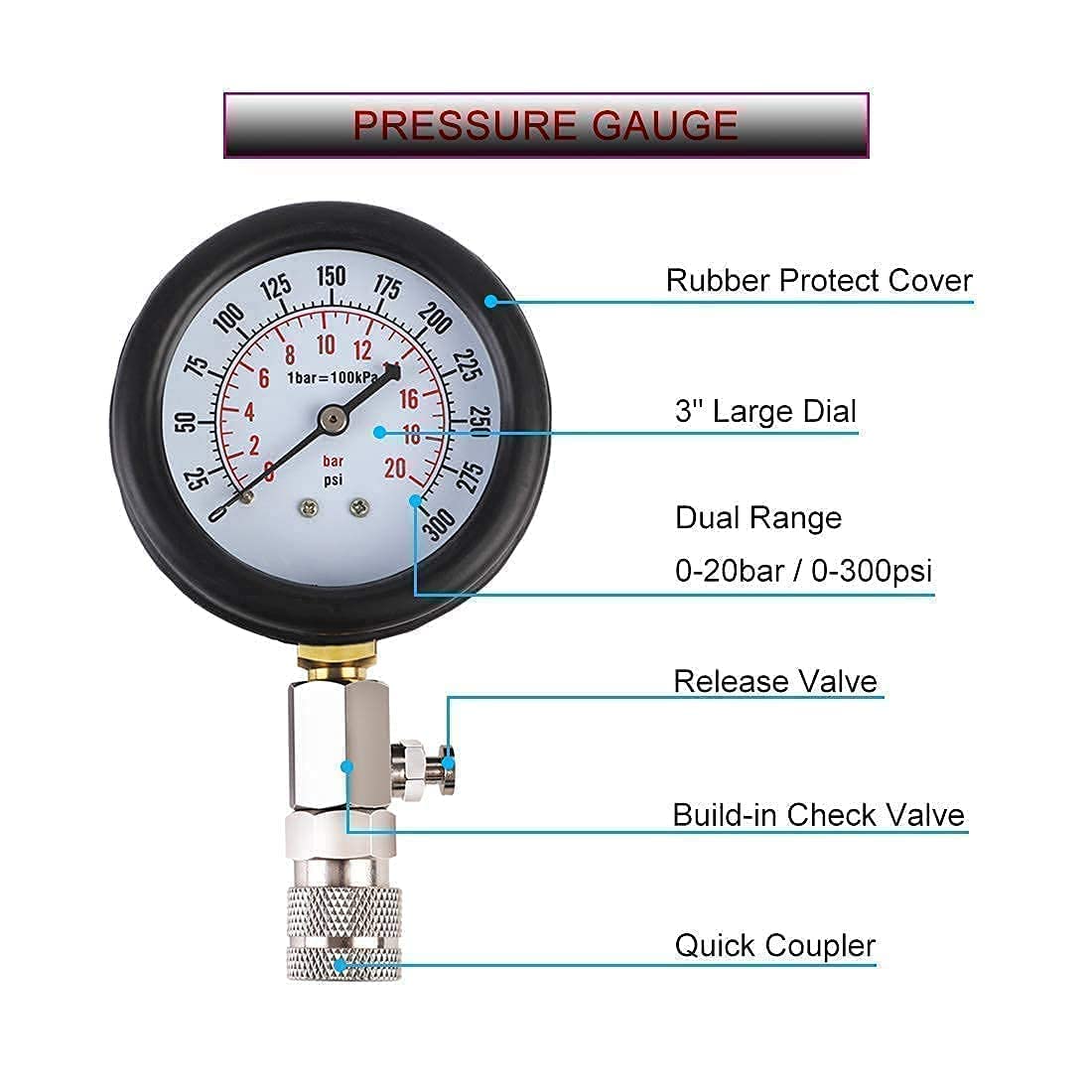

• CYLINDER COMPRESSION TEST AND DIAGNOSTIC: JIFETOR engine compression tester kit is used for measuring pressure on gasoline engine cylinder quickly and accurately. The gauge readings assist to diagnose if there are following problems: valve sticking, carbon build-up, cracked cylinder head or defective main gasket, poorly seated or worn piston rings, burned or damaged piston. Please refer to the vehicle manufacturer's service instructions or proprietary manual and our manual for details.
• WIDE USE OF ENGINE COMPRESSION TESTER: There are 16" long flexible extension hose with 4 sizes (10mm 12mm 14mm 18mm) selectable brass adapters in the cylinder tester set, widely suitable for most types and depth spark plug well on gasoline petrol gas fuel engine cylinder, which is common in motorcycle, car, truck, lawn mower, ATV and so on. Please note, the gauge is not used for most diesel engine, due to the low pressure range 0-300PSI.

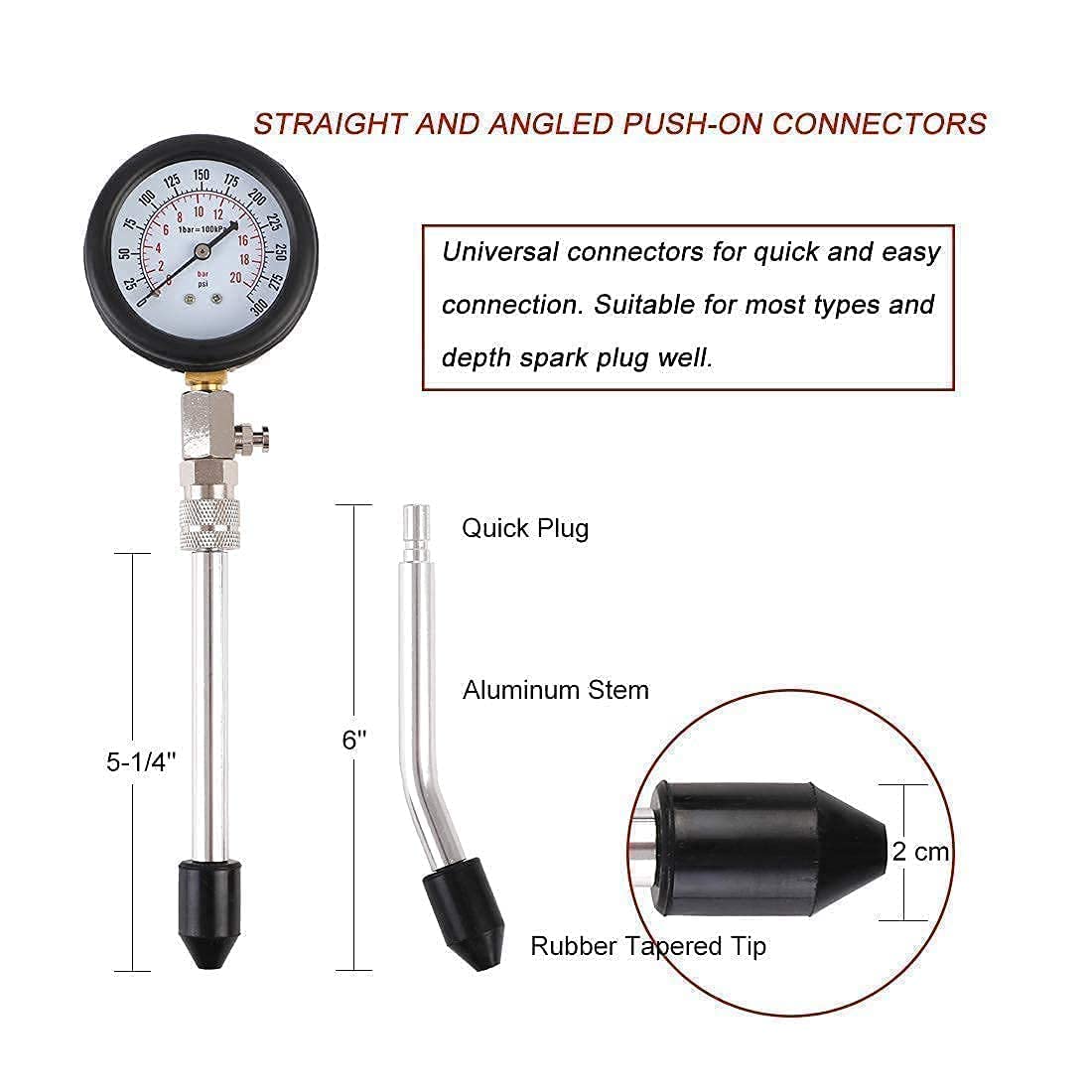

• UNIVERSAL GASOLINE ENGINE CYLINDER TESTER CONNECTORS: The straight and angled push-on connectors are equipped with rubber tapered tip for easy and quick installation, you just need to push and hold it seal against cylinder head, rather than screw to tighten like 10mm 12mm 14mm 18mm appropriative adapters. These push-on connectors are also perfect for some types and depth spark well, which the appropriative adapters do not fit.
