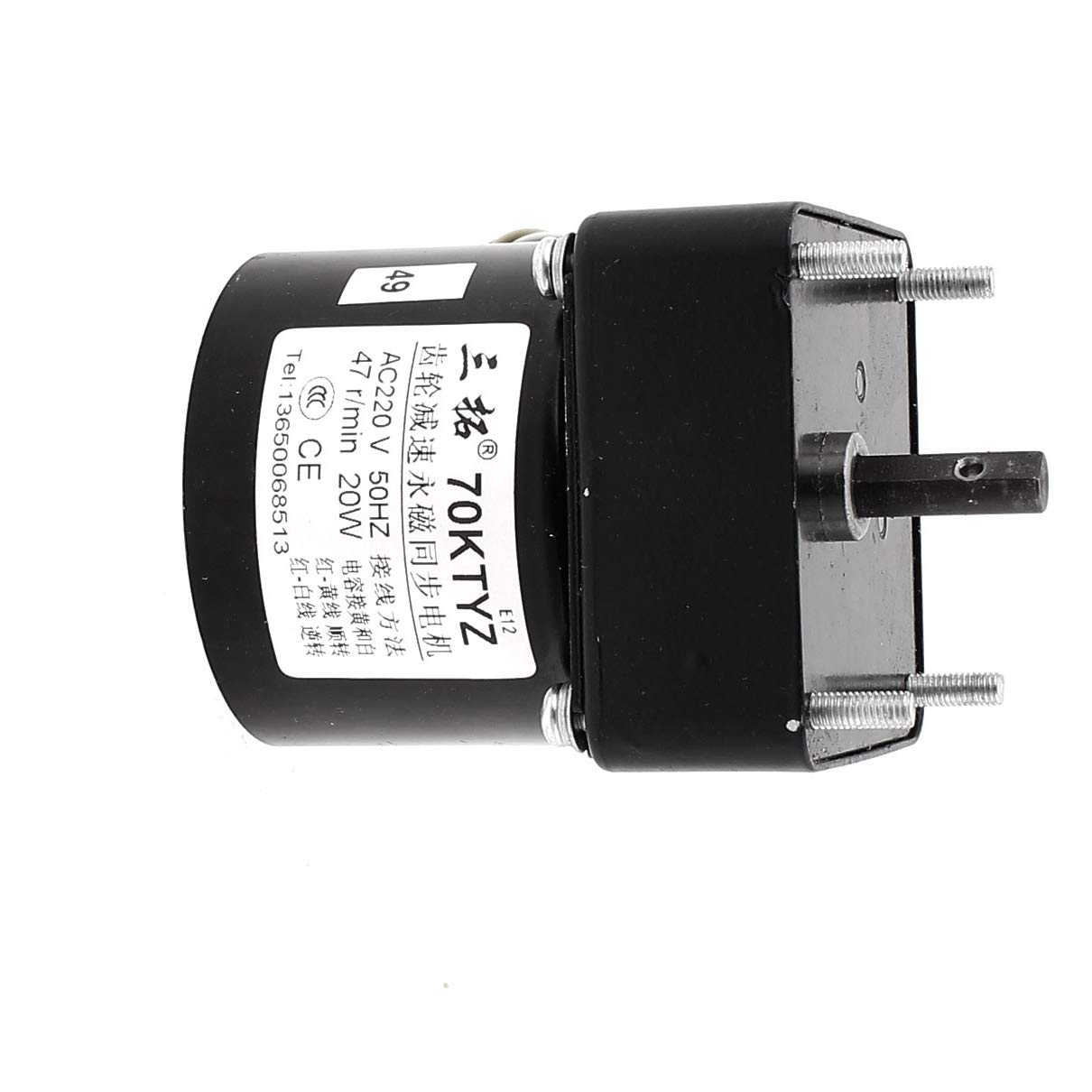

AC220V 47RPM High Torque Reversible Gear Motor Speed Reducer Shaft (3d004619706d112b83b3746e644fa4a4)

Aexit AC220V 47RPM High Torque Reversible Gear Motor Speed Reducer Shaft (3d004619706d112b83b3746e644fa4a4)1.These AC Synchronous Gear Motors are available with many different options in speed and torque. 2.perfect for applications that require a constant speed while connecting to AC power line voltage.3.Wire up the motor with the appropriate capacitor(included) to AC voltage, and the motor will maintain a constant speed as long as the load remains under the rated torque.4.Connection: Connect the capacitor with yellow and white wire. The red wire connects the yellow wire is CW; and another red wire connects white wire is CCW.5.Typical Aplications: electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, mahjong desk, Automatic Equipment, Electric-drive toy, screen machine.Description in FrenchAC220V 47tr/min moteur réducteur réversible à couple élevé réducteur vitesse l'arbre excentriqueMax. Puissance nominale: 20W; Vitesse nominale: 47t/min, couple de sortie: 16kg.cm(1.6N.m); taille de l'arbre(excentrique): 8mm x 23mm (0.31" x 0.9")(D*L)La taille du moteur: 71mm x 71mm x 83mm (2.8" x 2.8" x 3.27")(L*D*H); Longueur totale: 109mm(4.29"); Longueur de câble: 18cm (7,08"); la du condensateur: AC500VCapacité: 0.68uF(+/-5%); pôle Condensateurs Longueur: 10cm(4"); Vis de montage Diamètre: 4.8mm(0,19"); Pays de fabrication: ChineMatériel: Métal, pièces électroniques; Poids net: 1087g; Contenu de l'emballage: 1 x moteur réducteur synchrone, 1 condensateur xModèle: 70KTYZ; couleur principale: Noir; Fréquence: 50Hz

• Max. Wattage Rating: 20W; Rated Speed: 47RPM; Output Torque: 16Kg.cm(1.6N.m); Shaft Size(Eccentric): 8mm x 23mm(0.31" x 0.9")(D*L)
• Motor Size: 71mm x 71mm x 83mm(2.8" x 2.8" x 3.27")(L*D*H); Total Length: 109mm(4.29"); Cable Length: 18cm(7.08"); Capacitor Voltage: AC500V
• Capacitance: 0.68uF(+/-5%); Capacitor Pole Length: 10cm(4"); Mounting Screw Diameter: 4.8mm(0.19"); Country of Manufacture: CHINA
• Material: Metal, Electronic Parts; Net Weight: 1087g; Package Content: 1 x Synchronous Gear Motor, 1 x Capacitor (84931ef7-2b17-11ea-990f-4cedfbbbda4e
• Model: 70KTYZ; Main Color: Black; Frequency: 50Hz (Modèle: 70KTYZ; couleur principale: Noir; Fréquence: 50Hz
