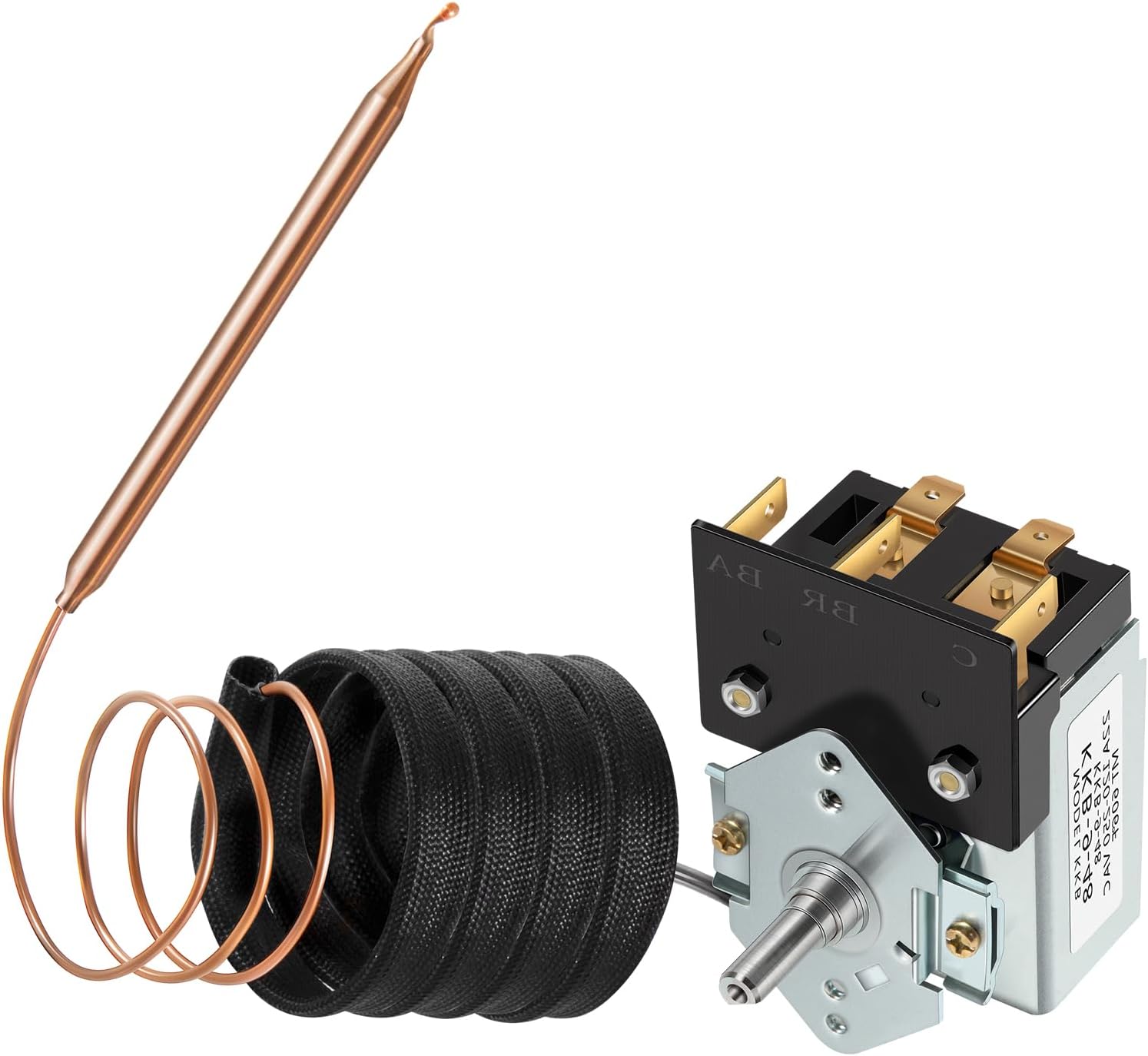

Replacement for Viking Ranges PB010036 Bake/Broil Thermostat

The PB010036 Bake/Broil Thermostat is a high-performance oven thermostat compatible with most Viking models. This component ensures precise temperature control during baking and broiling, allowing you to achieve optimal results with every cooking session.

• Bake Operation - In bake mode, the thermostat contacts close, completing the bake circuit. This allows current to flow through the bake ignitor and the bake gas valve to the neutral line, activating the baking process
• Broil Operation - In broil mode, the thermostat contacts close, completing the broil circuit. This enables current to flow through the broil ignitor and the broil gas valve to the neutral line, initiating the broiling process
• Precise Response - When a target temperature is set, the thermostat compares the actual temperature to the desired one. Once the temperature reaches the set point, the thermostat turns off the heating element, maintaining a stable temperature inside the oven. This prevents overheating and protects both the oven and the user’s safety
• Continuous Monitoring - This process continuously loops to ensure the temperature remains within the desired range. This guarantees that food reaches and maintains the appropriate temperature throughout the cooking process, enhancing baking results
• Thermostat Specifications - The thermostat's maximum current capacity is 22 amps, with an operational voltage range of 120 to 250 volts AC, making it suitable for various power configurations. It can withstand temperatures up to 606 degrees Fahrenheit
