Happymodel EX1204 1204 5000KV 6500KV 2-4S CW CCW Brushless Motors 1.5mm Shaft for FPV Racing Drone 3 Inch Toothpick Quadcopter (5000KV,2*CW + 2* CCW)
5.0 (129 items)
Limited Time Sale$19.55 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213296229 | Release Date | 2026/04/12 | List Price | $13.03 | Model Number | 213296229 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

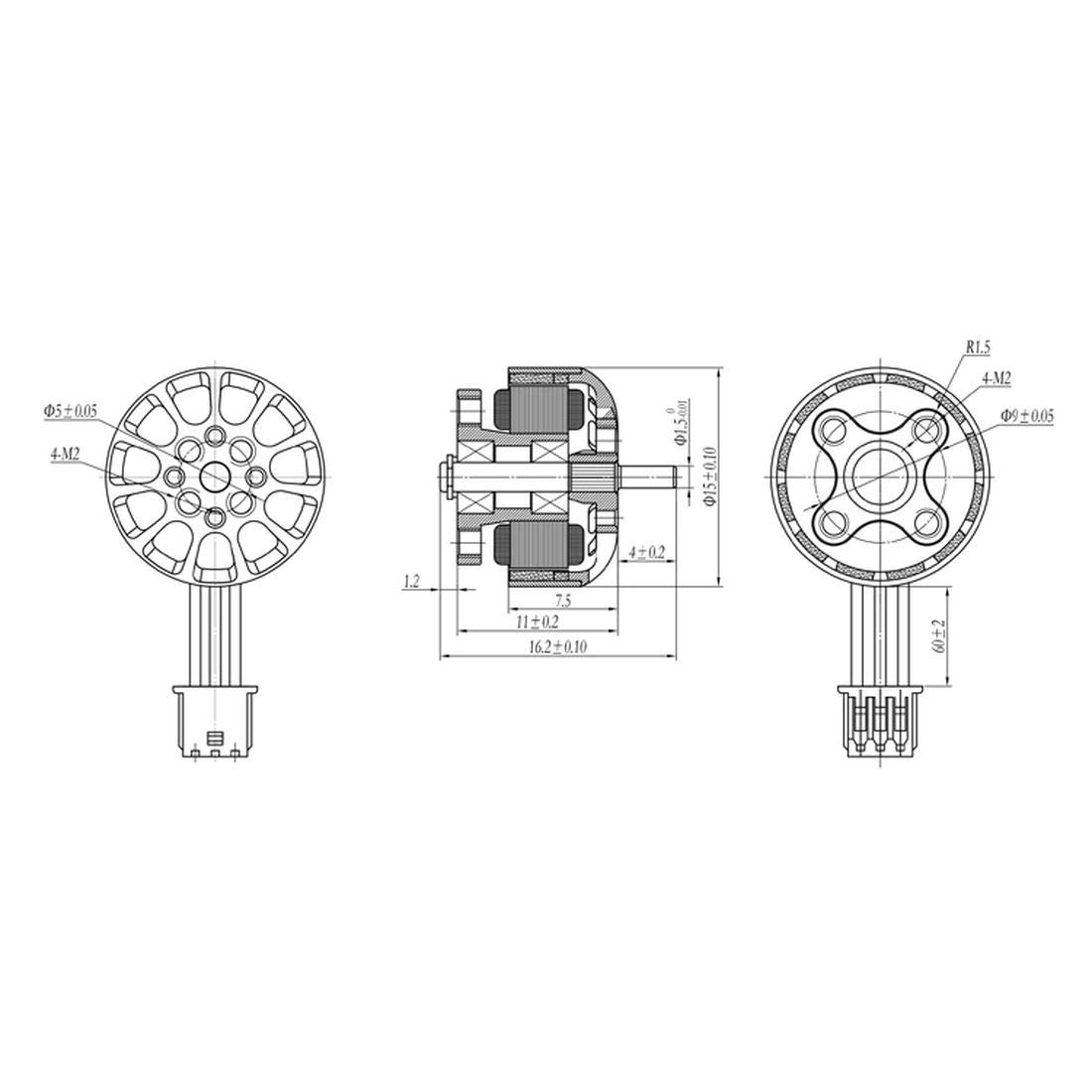

1.5mm motor output shaft, line length 60mm The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI) The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI) Mode: EX1204 KV option: KV5000 or KV6500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:4mm Inner Shaft Diameter:?2mm Outer Shaft Diameter:?1.5mm Motor Dimension(Dia.*Len):?15mm*16.2mm Weight(g):5.9g No.of Cells(Lipo): KV5000 support 2-4s KV6500 support 2-3s
- 1.5mm motor output shaft, line length 60mm
- The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI)
- The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI)
| Speed | 5000 RPM |
|---|---|
| Brand Name | HAPPYMODEL |
| Manufacturer | HAPPYMODEL |
| Material Type | 5000 kv |
