Spindle Motor Kit, CNC Milling Machine Motor Easy Installation Low Noise DC48V for Carving Wood, Plastic, PCB
4.3 (150 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213596198 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213596198 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

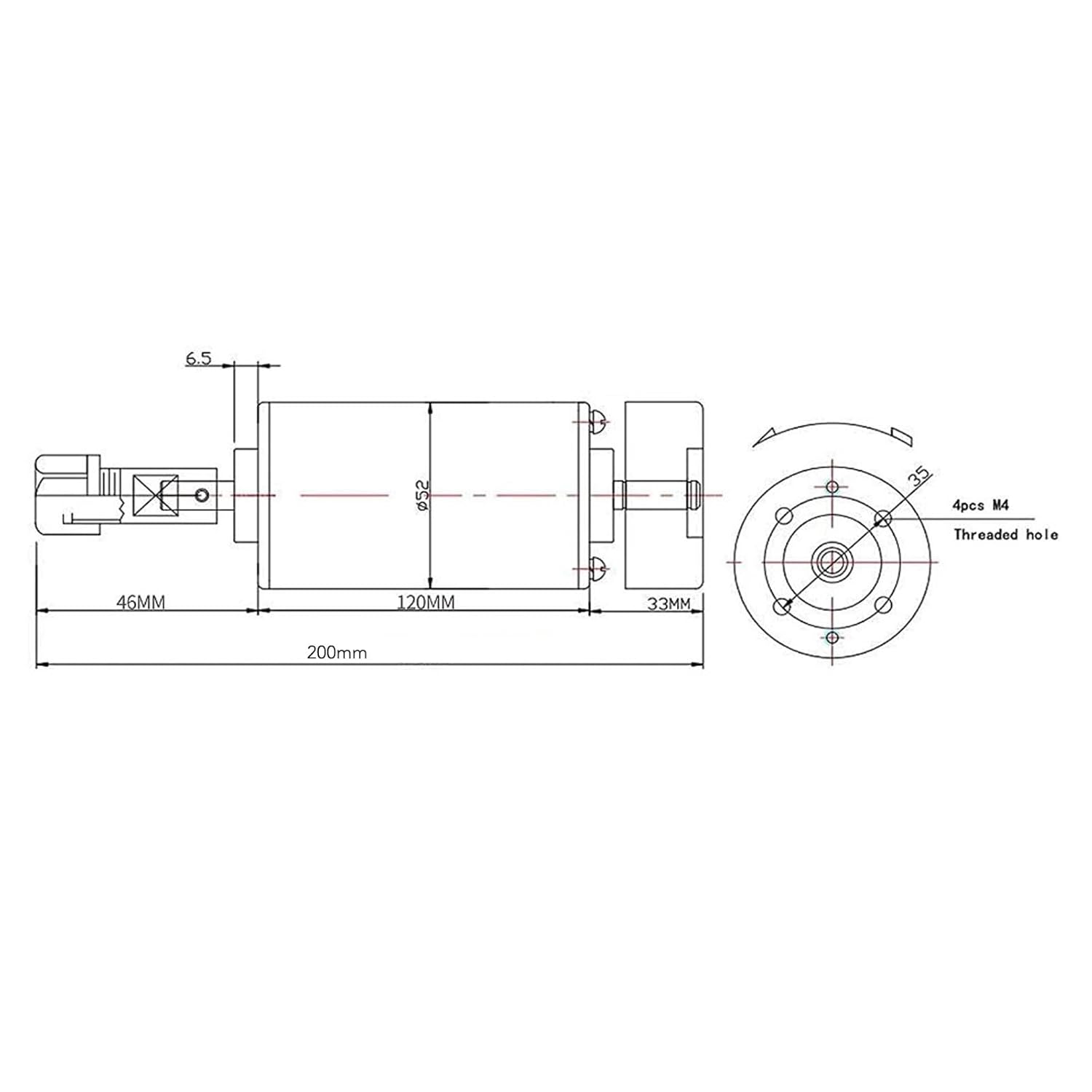

1. Working parameters: CNC spindle motor, with 500W power, 0.01-0.02mm high fusion accuracy, 12000rpm idle speed, 600mN torque. M. 2. Carving materials: can be used to carve wood, plastic, acrylic, PVC, PCB, carbon fiber, density board and other materials, with strong practicality. 3. Air Cooling Fan The rear end of the motor is reinforced with cooling fan, which can work safely for a long time, and has high speed and low operating noise. 4. With ER11 Collection The 52mm diameter spindle motor is equipped with ER11 collet, can be combined with bracket to ensure high carving accuracy, no deformation. 5. Wide Application This spindle motor is widely used in mini CNC routers, engraving machines, milling machines, etc., which is simple and practical. Specifications: Item Type:Spindle Motor Power: 500W Operating voltage: 48V DC Idle speed: 12000 RPM Torque: 600 mN.m. Motor diameter: approx. 52 mm. Nozzle piece length: approx. 45mm Chuck piece diameter 16 mm. Total motor length: approx. 200mm Insulation resistance: >2MΩ Insulation Dielectric Resistance: 400V Radial Spindle Drain: 0.01-0.03 High Precision Application: can be used for wood PCB engraving, punching, etc. How to use: Install and use directly. Package List: 1 x Spindle Motor 1 x ER11 Tweezer 1 x Nozzle Nut
- Carving materials: can be used to carve wood, plastic, acrylic, PVC, PCB, carbon fiber, density board and other materials, with strong practicality.
- Air Cooling Fan The rear end of the motor is reinforced with cooling fan, which can work safely for a long time, and has high speed and low operating noise.
- With ER11 Collection The 52mm diameter spindle motor is equipped with ER11 collet, can be combined with bracket to ensure high carving accuracy, no deformation.
- Wide Application This spindle motor is widely used in mini CNC routers, engraving machines, milling machines, etc., which is simple and practical.
- Working parameters: CNC spindle motor, with 500W power, 0.01-0.02mm high fusion accuracy, 12000rpm idle speed, 600mN torque. M.
| Model | BTIHCEUOTh54603u91e |
|---|---|
| Speed | 12000 RPM |
| Voltage | 400 Volts |
| Brand Name | BTIHCEUOT |
| Model Name | BTIHCEUOTh54603u91e |
| Unit Count | 1.0 Count |
| Manufacturer | BTIHCEUOT |
| Item Type Name | Milling Machines |
