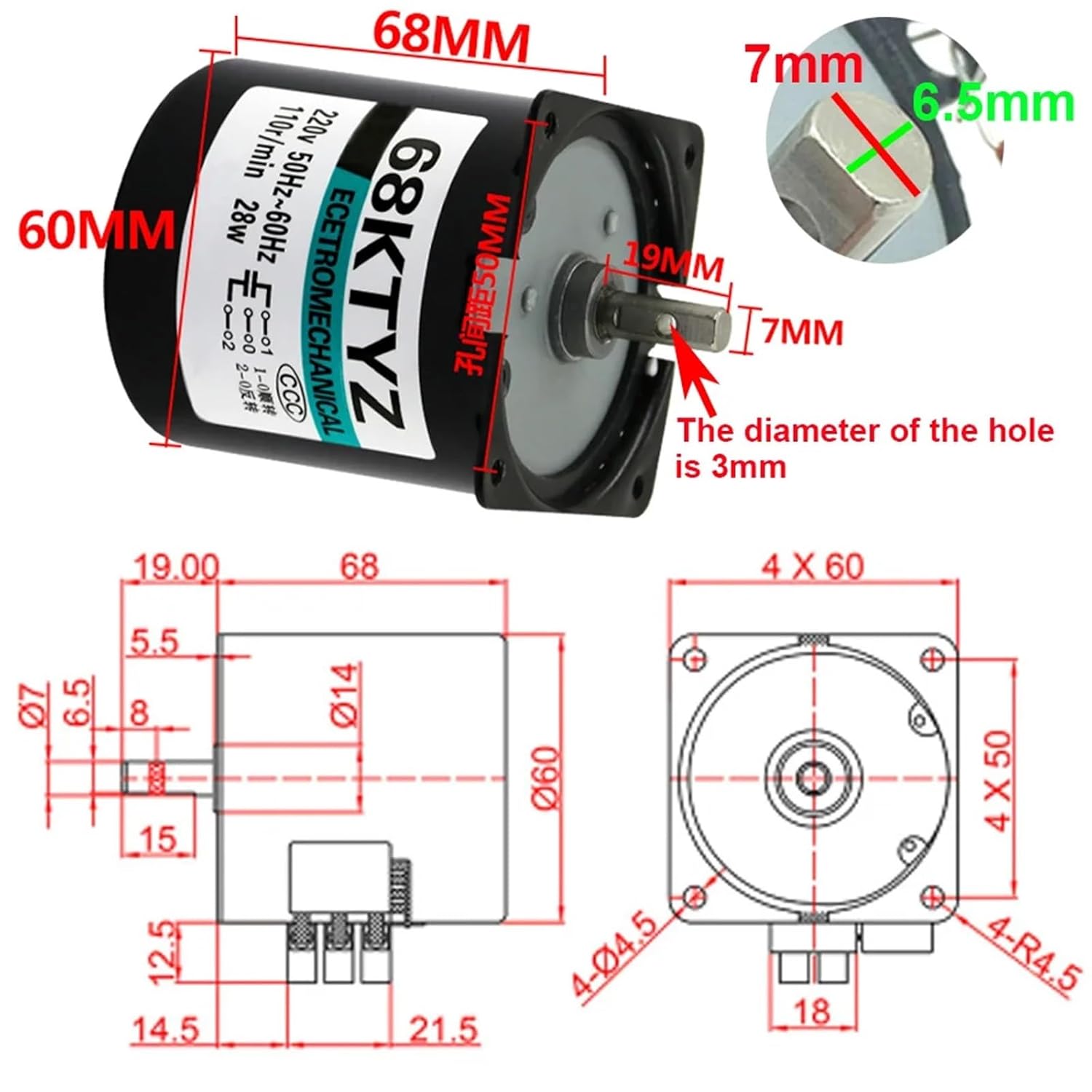

1pc 100KG 28W AC 220V Permanent Magnet Synchronous 220V 68KTYZ CW/CCW Metal Geared Slow Speed Motor 2.5 to 110RPM(50rpm 7kgf.cm)

Important reminderWhen the motor starts to work, if the load of your project exceeds the torque of the motor, the motor will automatically and continuously change the direction of rotation. Fortunately, this motor has an overload reminder function, and the motor will not be damaged immediately.When you encounter this situation, you will find that your project load has exceeded the torque of the motor, so you should immediately reduce the of the project load, thank you.Introduction of the motor1. 68KTYZ Mini 220V AC Permanent Magnet Synchronous Motor2. The motor has the following voltage options: AC 220V3. AC 220V ; You can choose the no load speed have : 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 110rpmRated torque between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated torque, please refer to the parameter table below.4. The direction of rotation of the motor : CW and CCW; Support Reversed ; But the speed of this motor is fixed, the speed cannot be adjusted.5. Power : 28W6. Working temperature : The lowest temperature is -10 degrees to the highest temperature of 70 degrees 7. Outstanding features of the motor: The motor is a permanent magnet synchronous motor ; Internal is metal gears ; Low speed and low noise 30dB ; Speed adjustment is not supported ; 5,000 hours of life under normal use ; Use materials ; Small size ; High torque ; Low power consumption ; Light weight and easy to use8. Motor application range : Automatic barbecue shelf; Automatic dining table; Curtain machine; Crib; Stage Lighting; Dishwasher; Automation control, etc.9. For the torque, size, product picture or other informations of the motor, please see the following information.ThanksThe following is the motor parameter tableThe following is a description of the quality materials and structures of this motor.1. All metal gears2. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.3. Using imported lubricating oil, it effectively controls the speed of motor temperature rise, which makes the motor rotate more smoothly.The size is for reference only,the measurement will be slightly different,please pay attention before buyingWiring methodCrocodile clip, plugs and cords require additional purchaseHign-concerned Chemical : NoneFrequency : 50Hz/60HzModel Number : 68KTYZ AC 220v synchronous motorPhase : Single-phaseProtect Feature : Totally EnclosedType : Asynchronous MotorAC Voltage : 208-230 / 240 VCertification : RoHS,CEOutput Voltage : 28WProduct name : synchronous motor 220v 30 rpmAlias 1 : 220v ac synchronous motorAlias 2 : motor synchronous 220vAlias 3 : synchronous engine 220vAlias 4 : synchronous motor 220v 28wAlias 5 : 28w synchronous motorAlias 6 : 68ktyz 220vAlias 7 : synchronous motor 220Alias 8 : synchronous motor 220v 10rpmAlias 9 : synchronous motor 220v 50 60hz

• 28W power+100KG torque, suitable for medium load transmission scenarios. ​
• Adopting 220V AC power, directly compatible with household/industrial standard power supply. ​
• The speed covers the low-speed range of 2.5RPM~110RPM and supports CW/CCW forward and reverse rotation, meeting the requirements of precise low-speed control. ​Paired with a metal gearbox, it is wear-resistant and has high strength, extending the service life of the motor and ensuring transmission stability. ​
• The permanent magnet synchronous structure has low operating noise and high speed accuracy, making it suitable for equipment that requires stable operation.
