Brixwell Glass-to-Glass Door Hinge 90 Degrees, Satin Chrome Finish, Solid Forged Brass, 3-9/16" Height, 2-5/16" Fixed Part Width, 3/16" Plate Thickness, Fits 3/8" and 1/2" Glass, Hardware Includes
5.0 (150 items)
Limited Time Sale$31.76 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213746314 | Release Date | 2026/04/12 | List Price | $21.17 | Model Number | 213746314 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

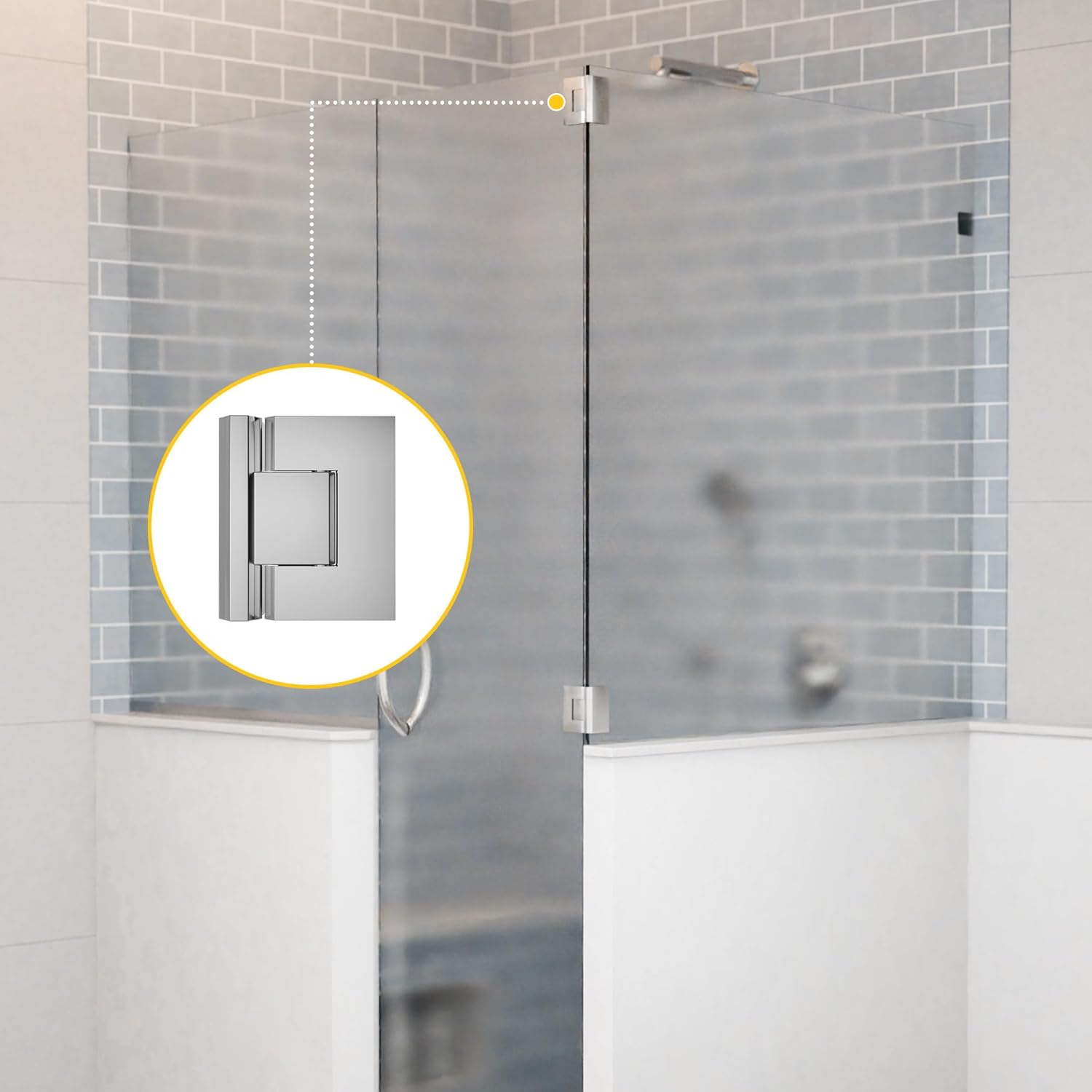

The Brixwell Glass To Glass Door Hinge 90 Degrees is designed for frameless shower enclosures where two glass panels meet at a right angle. Made from solid forged brass with a Satin Chrome finish, this hinge provides a secure and balanced connection that blends with bathroom hardware and glass fittings. This hinge is built for glass-to-glass mounting and fits 3/8" and 1/2" (10 and 12mm) thick glass panels. Its square edge profile gives a clean alignment, while the included stainless steel hex clamping screws, crosshead screws, and wrench provide the parts needed for installation. A cutout in the glass panel is required, making it suitable for frameless shower doors and partitions. The hinge has a height of 3-9/16", with fixed part width 2-5/16" and hinge part width 2-3/16", and a plate thickness of 3/16". These dimensions allow accurate placement for reliable bathroom door mounting. Each hinge is rated at 40 lbs, with two hinges supporting up to 80 lbs and three hinges up to 120 lbs, allowing door widths up to 36". A self-centering feature provides a 0 degree return with a reversible 5 degree pin, giving flexibility for in or out adjustments. The hinge also offers self-closing action from 25 degree, supported by stainless steel pins and springs that maintain smooth operation. This makes it suitable for daily use in shower enclosures. The mouse ear design supports adjustability after installation.
- MATERIAL AND FINISH: Constructed from solid forged brass with Satin Chrome finish, this hinge coordinates with bathroom fittings and glass hardware, supporting a secure connection for frameless shower door installations.
- GLASS COMPATIBILITY: Designed for use with 3/8" and 1/2" glass thickness, providing accurate fitting for shower doors and glass enclosures while keeping a clean alignment in residential or light commercial bathroom systems.
- HINGE DIMENSIONS: Measures 3-9/16" in height, 2-5/16" fixed part width, 2-3/16" hinge part width, and 3/16" plate thickness, ensuring precise installation and stable support in frameless glass shower door hardware setups.
- WEIGHT CAPACITY: Rated 40 lbs per hinge, with 2 hinges supporting up to 80 lbs and 3 hinges supporting up to 120 lbs, allowing safe use with shower doors up to 36" wide in bathroom partitions and frameless enclosures.
- SELF-CENTERING FUNCTION: Features a 0 degree return with a reversible 5 degree pin, allowing inward or outward adjustment to align shower doors or glass partitions, making it suitable for flexible frameless glass installations.
- HARDWARE INCLUDED: Supplied with stainless steel hex clamping screws, crosshead screws, and wrench, giving all necessary hardware parts for mounting the hinge in frameless shower door or glass partition systems.
- Includes stainless steel clamping screws, crosshead screw, and wrench, making this hinge plate easy to install.
| Brand Name | BRIXWELL |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 2.74 Pounds |
| Finish Types | Satin Chrome |
| Manufacturer | Brixwell |
| Model Number | H90GTGSC |
| Material Type | Brass |
| Mounting Type | Glass To Glass |
| Included Components | 1 |
| Item Dimensions L x W | 3.75"L x 2.5"W |
