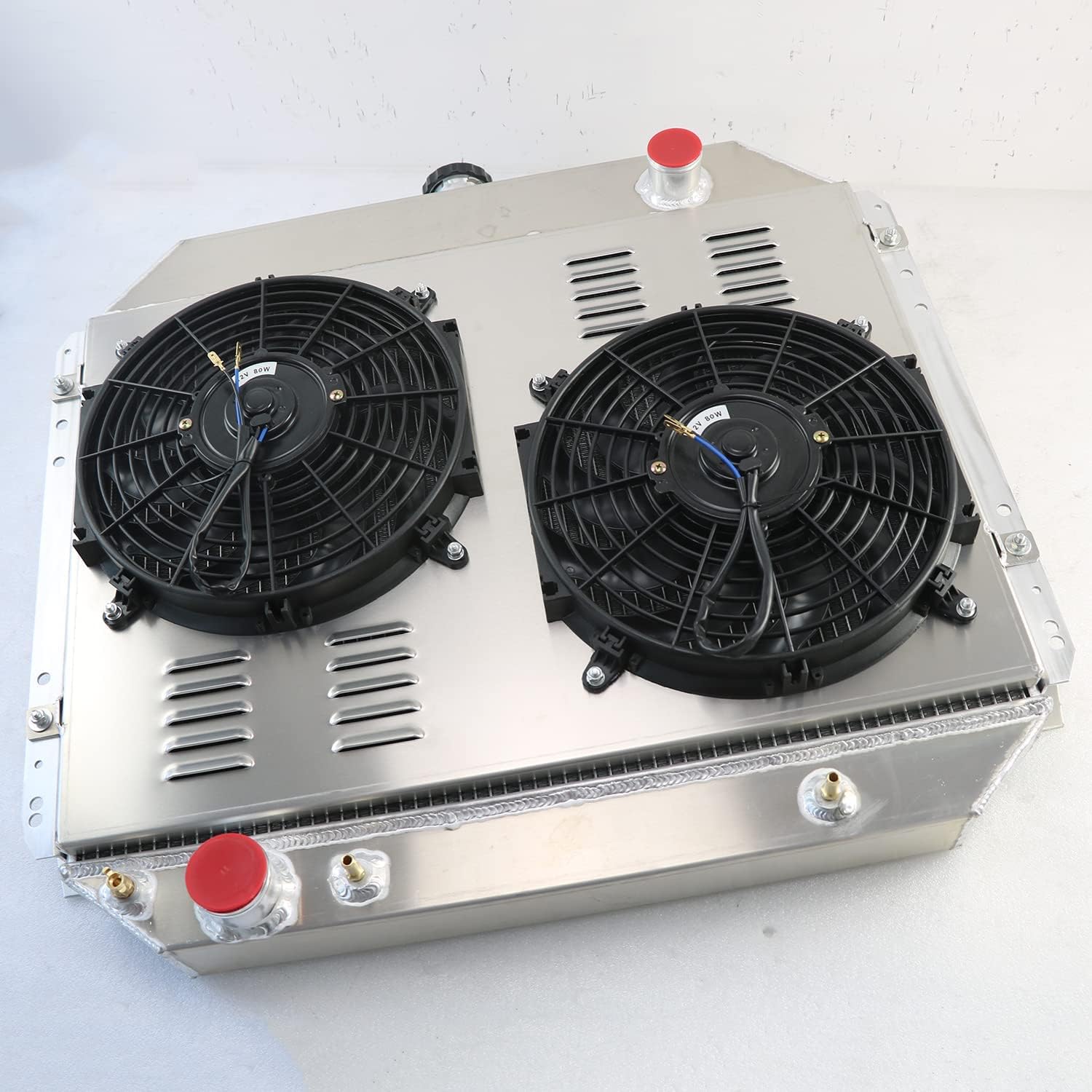

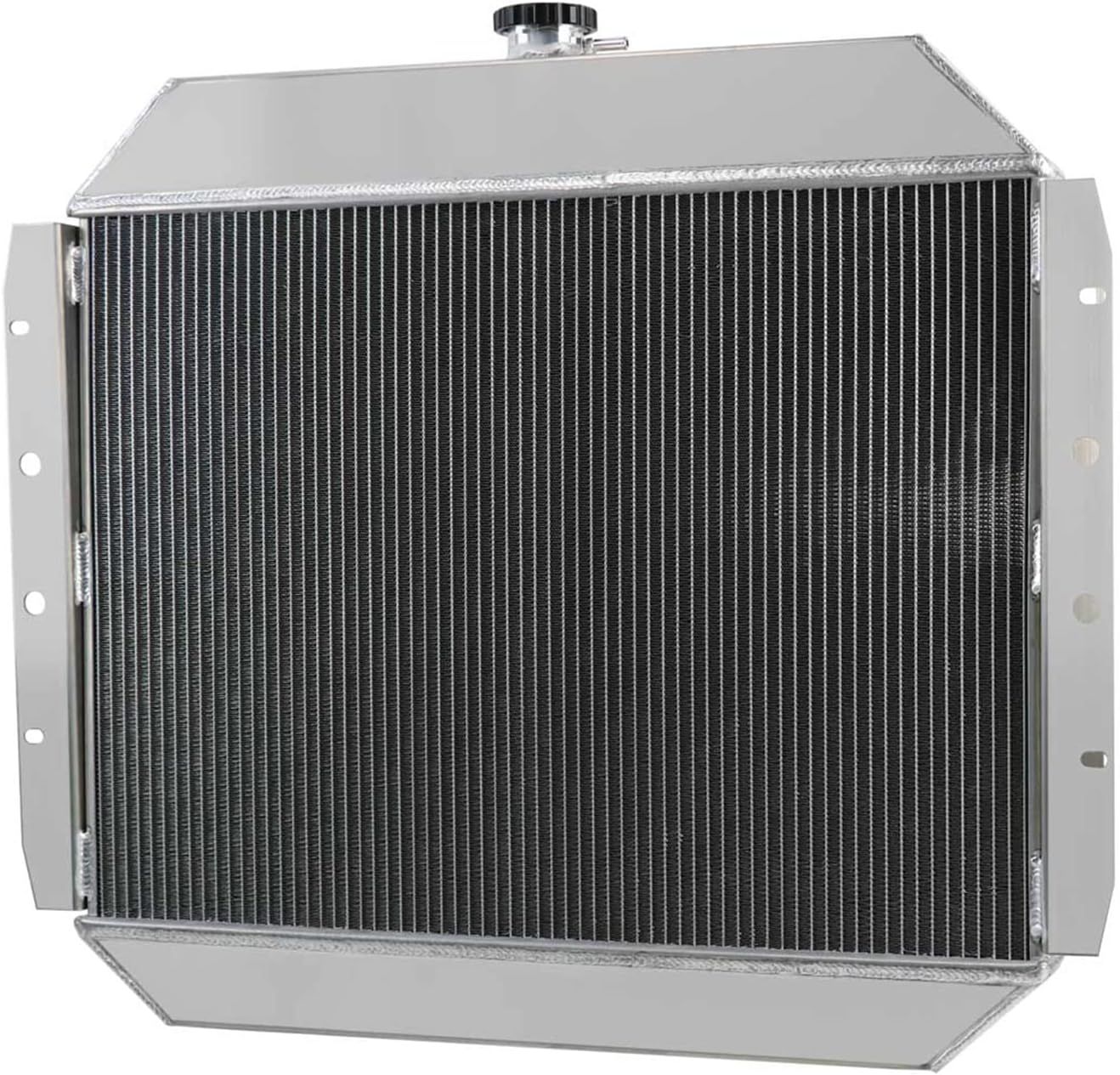

Ford F150 Radiator, Ford F250 Radiator, Ford F350 Radiator, Ford Bronco Radiator, Aluminum Radiator for 1966-1979 Ford Bronco F100 F150 F250 F350, 3 Row Radiator + Shroud/Fan + Relay Kit
4.0 (135 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214039246 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 214039246 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Application: Ford Bronco 2.8L L6, 1966-1972 Ford Bronco 3.3L L6, 1973-1974 Ford Bronco 3.9L L6, 1966-1967 Ford Bronco 4.7L V8, 1966-1968 Ford Bronco 5.0L V8, 1968-1977 Ford Bronco 5.8L/6.6L V8, 1978-1979 Ford F100/F250/F350 3.9L L6, 1966-1974 Ford F100 4.7L V8, 1966-1972 Ford F100/F250/F350 4.9L L6, 1966-1979 Ford F100 5.0L V8, 1969-1979 Ford F100/F250/F350 5.8L V8, 1966-1967, 1977-1979 Ford F100/F250/F350 5.9L V8, 1966-1976 Ford F100/F250/F350 6.4L V8, 1968-1976 Ford F100/F150/F250/F350 6.6L V8, 1977-1979 Ford F100 7.5L V8, 1973-1974, 1979 Ford F150 4.9L L6, 1975-1979 Ford F150 5.0L/7.5L V8, 1975-1979 Ford F150 5.8L V8, 1977-1979 Ford F150 5.9L/6.4L V8, 1975-1976 Ford F250 5.0L V8, 1969-1974, 1977-1978 Ford F250/F350 7.5L V8, 1973-1979 Ford F350 5.0L V8, 1966-1979 Ford F500 6.4L V8, 1976 OE / Part #: 433 SBR433 CC433 CU433 DPI433 KKS433 DPI132 CU132 Pls double check oem radiator core/overall size; inlet/outlet location before ordering Pls use Amazonconfirmedfit to confirm this radiator fit your vehicle before you order 12" Fan Spec: Maximum Fan CFM: 2300±200 Fan Diameter (Inch): 12 x 12 x 2.5 Number of Blades: 10 blades (plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2250 rpm Includes the mounting tabs for an easy zip tie installation Relay kit instruction: * Red to battery * White to ignition power * Black to the temp sensor * Blue to the fan Activates by grounding electric fans at preset temperature 180F / 165F turn on/off temperature Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!
- Core/Overall Size (Inch): 18.9 x 25.9 x 1.73 / 26.2 x 29.5 x 6.5
- Inlet/Outlet Diameter (Inch): 1.75 / 2 ; Inlet/Outlet at: passenger / driver side
- Internal transmission oil cooler type: 1/8-27NPT
- Leak/durability tested; No drilling or modifications needed for installation
- Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
- High density serpentine fins deliver optimum airflow across core tubes for better cooling
- Buy with no worry-12 months warranty
- Factory sized cooling hose inlet and outlet connections
- Controlled atmosphere furnace brazed core with TIG welded tanks and brackets
- All aluminum construction provides greater heat and pressure tolerance better heat dissipation
| Brand | Cooling Care |
|---|---|
| Model | Ford F250 Radiator |
| Exterior | Polished |
| Item Weight | 32.1 pounds |
| Item model number | Ford F150 Radiator |
| Package Dimensions | 34 x 31 x 8.75 inches |
| Manufacturer Part Number | BEI-COOLCARE-0389 |
| Is Discontinued By Manufacturer | No |
