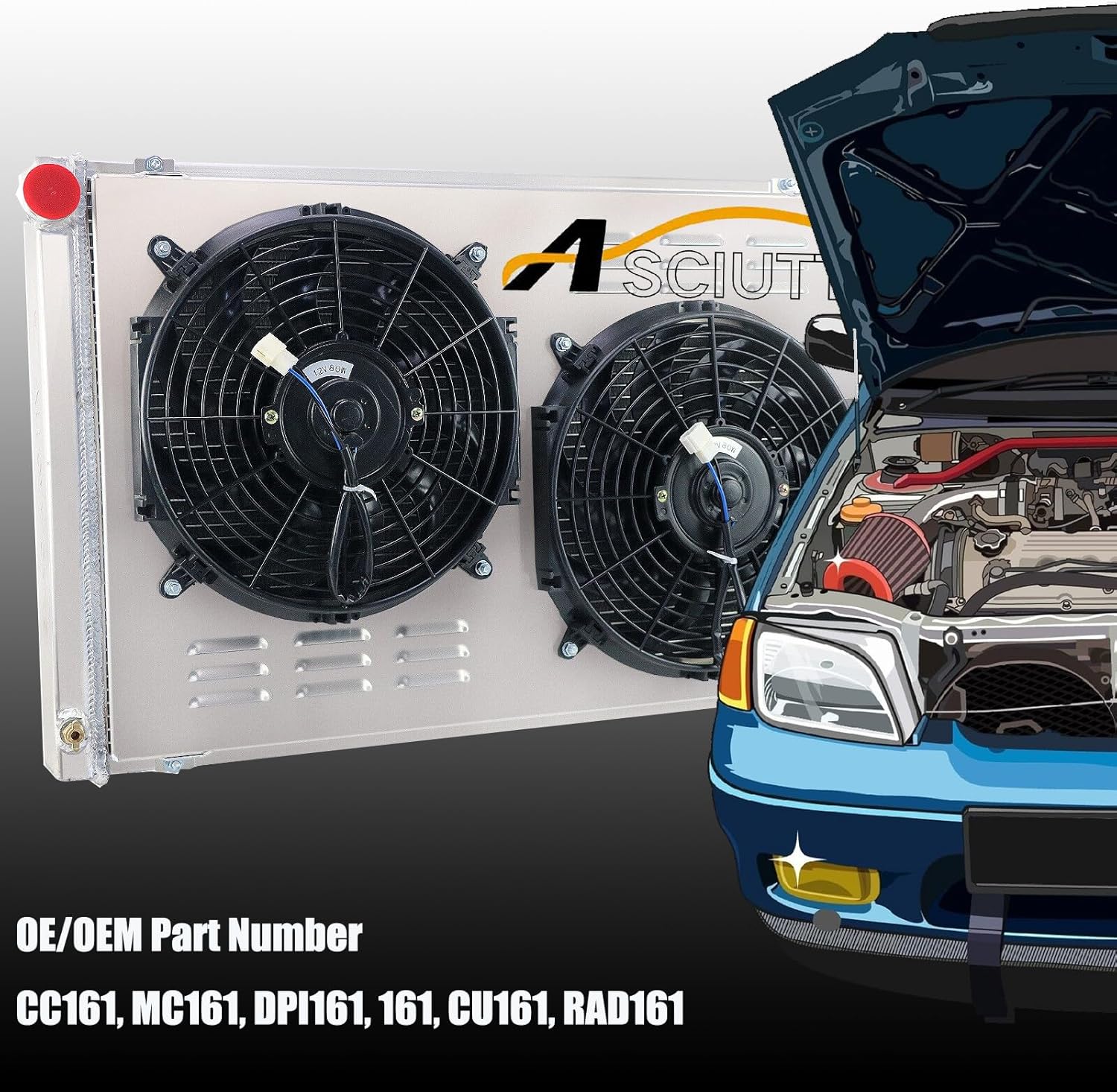

CU161 Radiator for Chevy Chevelle Impala Caprice C10 C20 C30 K10 K20 K30 Pickup Suburban Truck 1971-1990, 3 Row Full Aluminum Core Radiator+ Shroud Fan+ Relay Kits

Fitment: For Chevy Impala Blazer GMC Jimmy 1973-1980 For Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979 For Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77 For Chevy Caprice 1971-1990/Chevelle/GM 28" 66-80 For Cadillac Fleetwood/Brougham 1965-1974 For Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977 For Oldsmobile Delta 1968-1988/Pontiac 1968-1970 For Cadillac Olds Cars / Buick Skylark 67-72 For Olds Cutlass and Cutlass Supreme 66-77 This Listing Is Including： 1 X 3 Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details: Core Row: 3 Rows Material: Full Aluminum Radiator Cap: Included CNC machined filler neck and cap OEM style brass petcock drain Fan Size: OE Fitment or Replacement, Push or Pull Type Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans Part Number: CC161 MC161 DPI161 161 CU161 AE161 SBR161 3026032 3027015 3027144 3027147 3027448 3027544 3027705

• Core Size: 16.85" H x 28.23" W x 1.73" T ; Overall Size: 33.78" H x 18.9" W x 5.51" T ; Inlet Locations & Size: 1.5" Driver Side ; Outlet Locations & Size：1.5" Passenger Side ; Trans Cooler: ￠32*215*G1/4(Z); Transmission: Automatic and Manual"
• OE/OEM Part Number: CC161,MC161,DPI161,161,CU161,RAD161,GM3010319,3027896,3028147,3029602,3030094,3030095,3026032, 3027015, 3027144, 3027147, 3027448, 3027544, 3027705
• Vehicle Compatibility：Radiator For Chevy Chevelle Impala Caprice C10 C20 C30 K10 K20 K30 Pickup Suburban Truck 1971-1990, 3 Row Full Aluminum Core Radiator+ Shroud Fan+ Relay Kits
• Features: 100% Leak Tested, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
• Billet Aluminum CNC machined fill neck rugged and durable ; CNC machined cap with Engraved craftsmanship, anodized treatment.
