ALLOYWORKS 4 Row Core Aluminum Radiator+Shroud Fan+Relay For 1959-1965 Chevy El Camino/Impala/Biscayne/Bel Air AT/MT, GMC

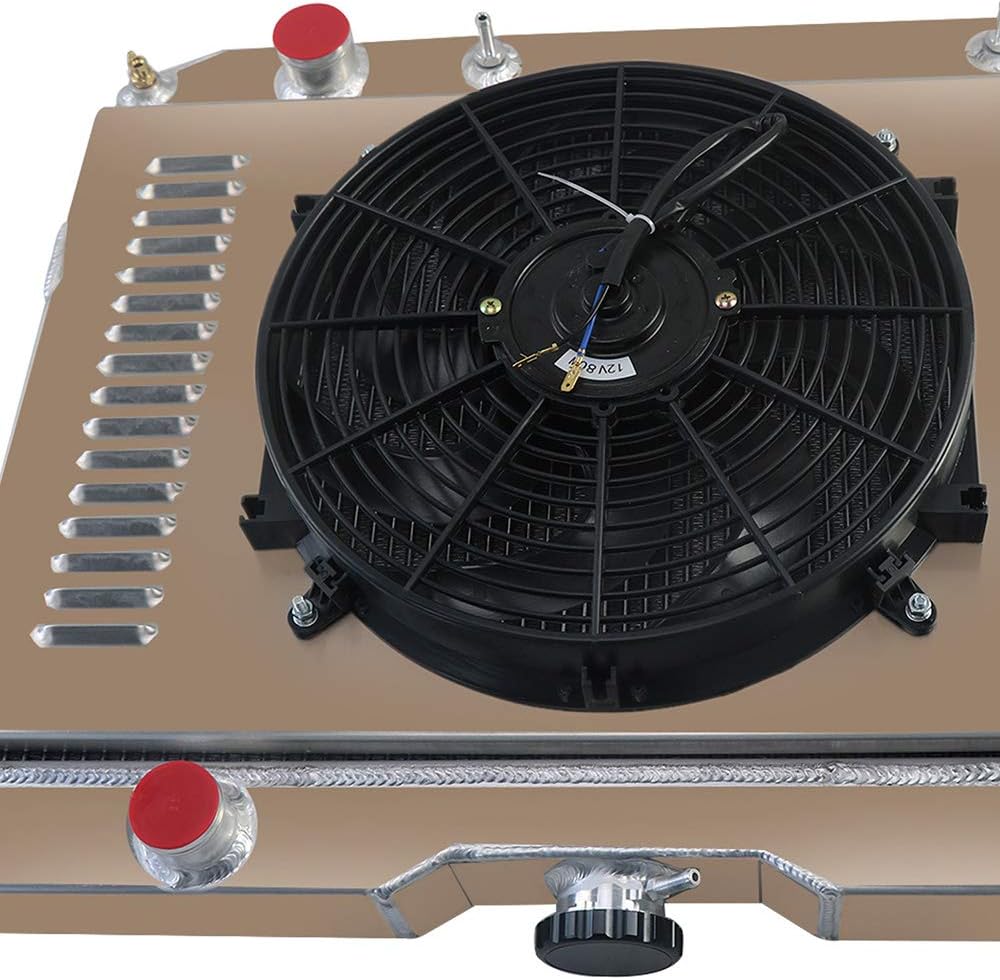

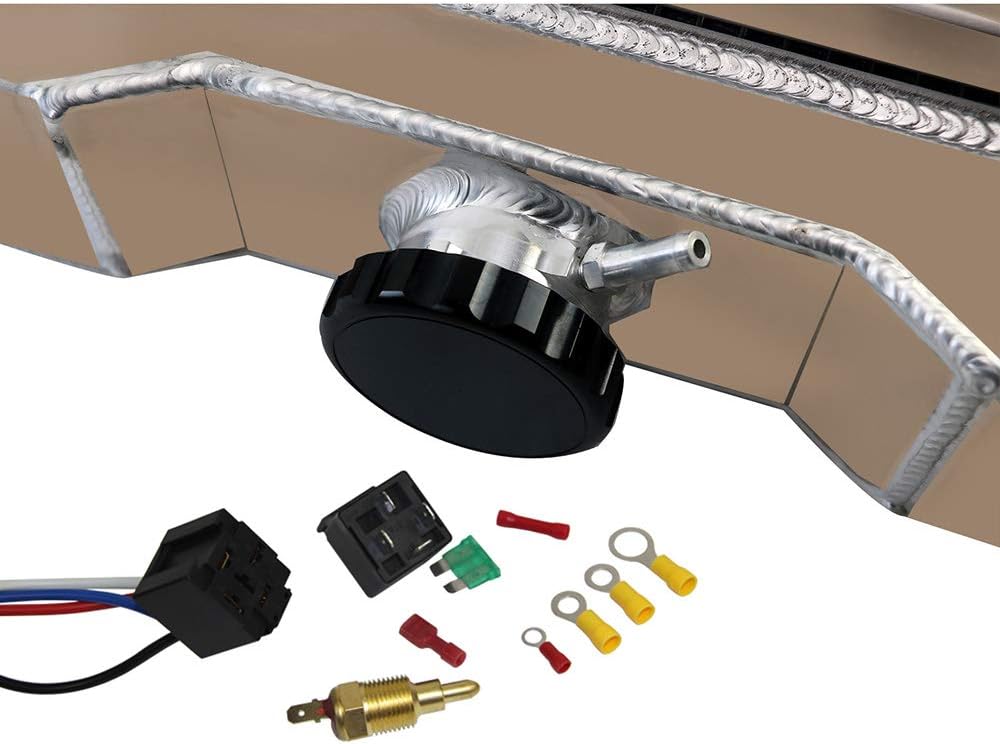

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 14" FAN AND Thermostat Kit! Radiator Size: Row: 4 Row-Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Size: 16 1/2" H x 24 1/2" W Overall Size: 21 3/4" H x 28" W Inlet: 1 1/2" located on passenger side. Outlet: 1 3/4" located on passenger side. Tanks: 2 3/4" T Mounting Type: Flanges Mounted Transmission: Automatic and Manual. Vehicle Fitment: For 1959-1963 Chevy Impala/Bel Air / Biscayne 60-65 For 60-65 Chevy Biscayne/59-63 Chevy Impala For 1959-1963 Impala- Chevelle El Camino For 1959-1963 Chevy Impala GM Cars FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050” Thickness (in): 2.500” Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold. Interchange Part Number: CC281,AE281,EC281,MC281,DPI281,CUC281 Part Numbers: 0281AA,281,433281,8010281,SPTCU281 Other Part Number: DPI281, CU281, 0281AA, 8010281, 25707

• ◆ For 1959-1965 Chevy El Camino/Impala/Biscayne/Bel Air AT/MT
• ◆ Improves cooling by 35% to 45% temperature
• ◆ Made of high quality full T-6061 aluminum construction
• ◆ Stronger and higher capacity for coolant than stock units
• ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
