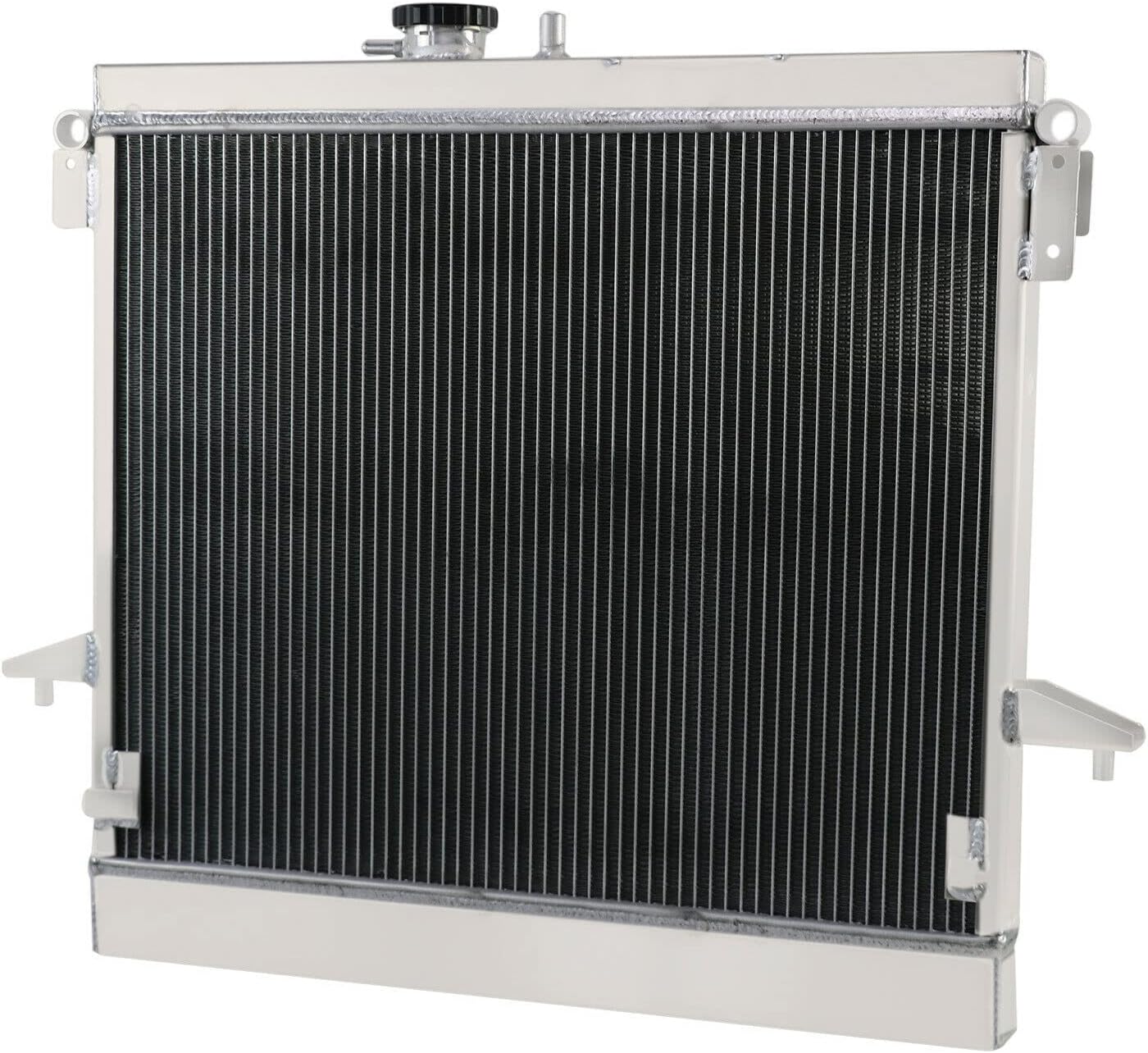

2 Row Radiator for 2006-2012 Chevy Colorado Hummer H3 H3T GMC Canyon V8 Radiators, 36MM All Aluminum with Shroud 16" Fan Relay

This Radiator Compatible With For Hummer H3 2006 2007 2008 2009 2010 All Engine For Hummer H3T 2009 2010 All Engine For GMC Canyon 2009 2010 2011 2012 V8 5.3L For Chevrolet Colorado 2009 2010 2011 2012 V8 5.3L Engine 2 Core Radiator Size 2-Row of tubes Core Racing Design Core Size: 18 2/3" x 23 1/7" Overall Size: 24" x 29 5/7" Core Thickness: 1 3/7" Inlet Connection: 1 5/16" Outlet Connection: 1 9/16" Engine Oil Cooler: No Transmission Oil Cooler: φ26*305*M14*1.5(P) Mounting Type: SADDLE 16” Fan Details 16" Fan Voltage: DC 12 Volts Maximum Fan CFM: 2000±200 Wattage: 120 Wattage Thickness (in): 2.500" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Amp Draw: 10 amps Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. Why Choose Cubauto Radiator? 1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package

• ★Core Size: 18 2/3" x 23 1/7"; Overall Size: 24" x 29 5/7"; Core Thickness: 1 3/7"; Inlet Connection: 1 5/16"; Outlet Connection: 1 9/16"; Engine Oil Cooler: No; Transmission Oil Cooler: φ26*305*M14*1.5(P)
• ★Performance: Made of high quality Aircraft AA5052 grade aluminum Construction. At least 35% more efficient than stock one.
• ★Apply to: For GMC Canyon 2009-2012 5.3L V8; For HUMMER H3 2006-2010 3.5L 3.7L 5.3L; For HUMMER H3T 2009-2010 3.7L 5.3L; For Chevrolet Colorado 2009-2012 5.3L V8
• ★Package Include: 1 X 2-Row AA5052 Aluminum Radiator; 1 X CNC Machined Radiator Cap; 1 X AA5052 Aluminum Shroud; 1 X 16" Fans (Includes mounting kits); 1 X Thermostat Relay Kit
• ★Light Weight Direct Bolt-On OE Fitment or Replacement. Warranty : 1 Year ; If you have any questions, please feel free to contact us, Cubauto will try our best to help you.
