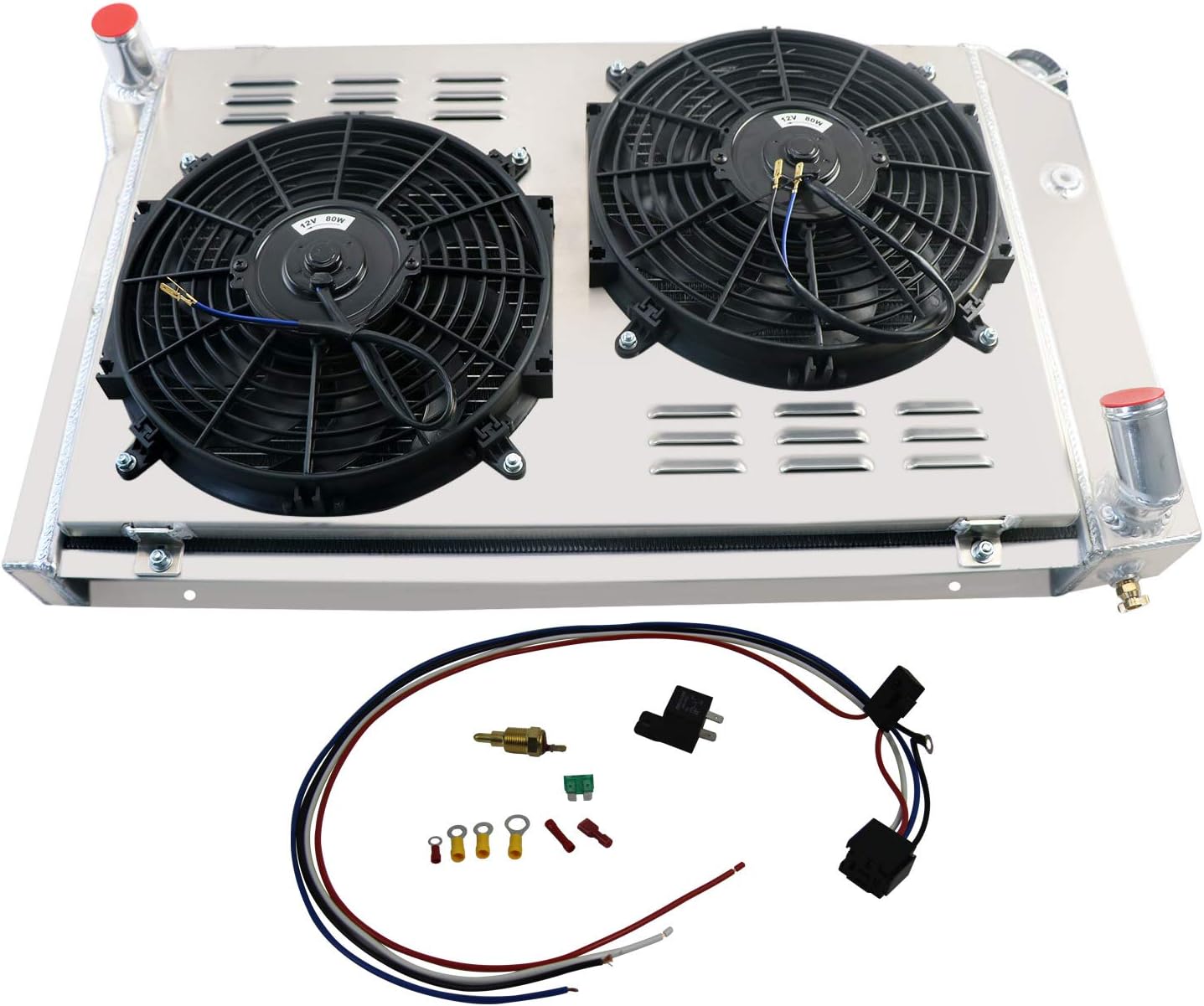

4 Row All Aluminum Radiator+2X12" Fans Shroud+Thermostat Kits For 1977-1982 Chevy Corvette C3 350 305 V8

THIS LISTING INCLUDING THE RADIATOR + SHROUD + 2X12" FANS + THERMOSTAT KITS! Radiator Size: Row: 4 Row-Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Core Dimensions: 16-1/2" High x 26-1/2" Wide Overall Dimensions: 18-3/4" High x 32-1/4" Wide Upper Inlet: 1-3/8" located on the Driver side. Lower Outlet: 1-1/2" located on the Passenger side. Transmission Cooler: Included Saddle Mount Transmission: Automatic and Manual. Vehicle Fitment: FOR 77-82 CHEVROLET CHEVY CORVETTE V8 For 77-82 CHEVY CORVETTE 5.0/5.7 V8 For Chevy Corvette C3 350/305 5.7/5.0 V8 77-82 FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• ◆ Radiator Replacement For 1977-1982 Chevy Corvette C3 350 305 V8
• ◆ Improves cooling by 35% to 45% temperature
• ◆ Made of high quality full T-6061 aluminum construction
• ◆ Stronger and higher capacity for coolant than stock units
• ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
