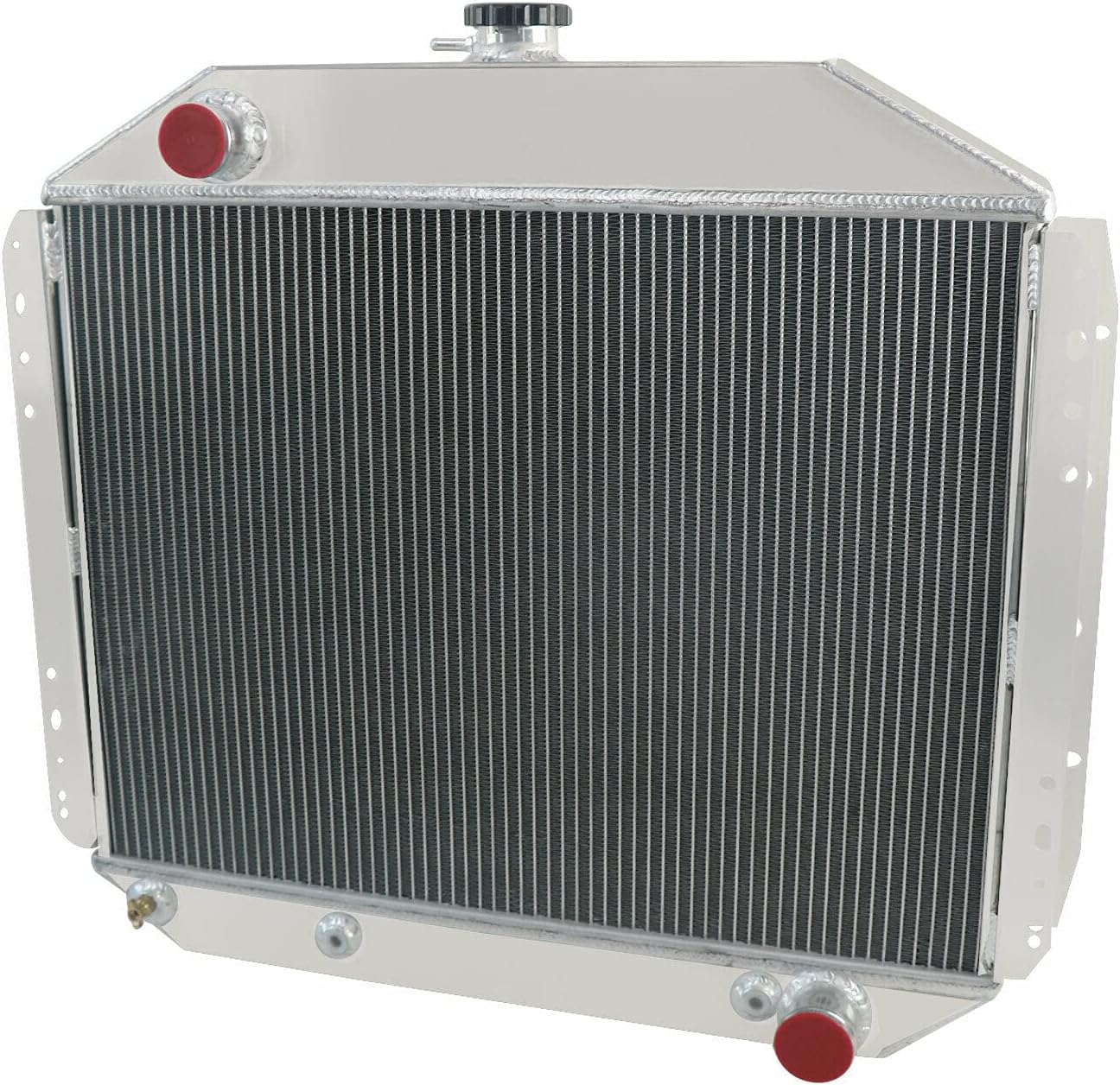

ALLOYWORKS 4 Row Core Aluminum Radiator Replacement for 1966-1979 Ford F-100 F-100 F-150 F-250 F-350 1978-1979 Ford Bronco Radiators With Shroud Fan Thermostat Relay Kit, L6 V8 Chevy Engines Only

OEM Part Number: 833,CC833,MC833,AE833,EC833Vehicle Fitment:For 1966-1979 Ford F-Series & Bronco Truck Chevy EngineFor 1966-1979 Ford F100 F150 F250 F350 Bronco Truck Chevy EngineFit Chevy Engine Only!Radiator Details:Row: 4 Row Core;Material: Full AluminiumRadiator Cap: includedCore and Tank: All AluminumHigh Performance Racing Spec.Radiator Flow: DOWN FLOWCore Size: 18 8/9''H X 25 1/2''WOverall Size: 26 1/6''H X 29 1/3''WUpper Inlet 1 1/2" located on the Driver sideLower Outlet 1 3/4" located on the Passenger sideTransmission Oil Cooler: IncludedTransmission Oil Cooler Fitting Type: φ26*305*1/4NPT(T)Mounting Type: BRACKETTransmission: Automatic and Manual.Material: Full AluminiumCore and Tank: All AluminumHigh Performance Racing Spec.Radiator style: DownflowMounting Style: Screw-OnFit type: Vehicle SpecificCrafts: 100% Tig weldedDelivery: Local DeliveryFitment Type: Direct ReplacementPerformance: Up to 30%~45% more coolingPlacement on Vehicle: Engine CompartmentSurface Finish: Aircraft Grade Raw AluminumPetock Drain: OEM style brass petcock drainRadiator Cap: CNC machined filler neck and capAluminum Shourd & Fan Specification:Blade Material: PlasticCooling Method: WaterVolt:12vMaximum Fan CFM: 1730 cfmWattage: 90 WattageFan Diameter (in): 12.050”Thickness (in): 2.500”Number of Blades: 10 S-Type bladeMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat Kit Installation:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.Probe typically threads into radiator, water outlet or manifold.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Gentle Hint:Parameters Meticulous Prior to Ordering.Pls compare the overall width with your original radiator.Professional installation is highly recommended! No Fitting Instructions Supplied!Please contact us for installation video or other any problem.

• ◆ [Applications] For 1966-1979 Ford F-Series Pickup Truck Chevy Engines; For 1966-1979 Ford Bronco F150 F250 F350 Pickup L6 V8 Chevy Engines;

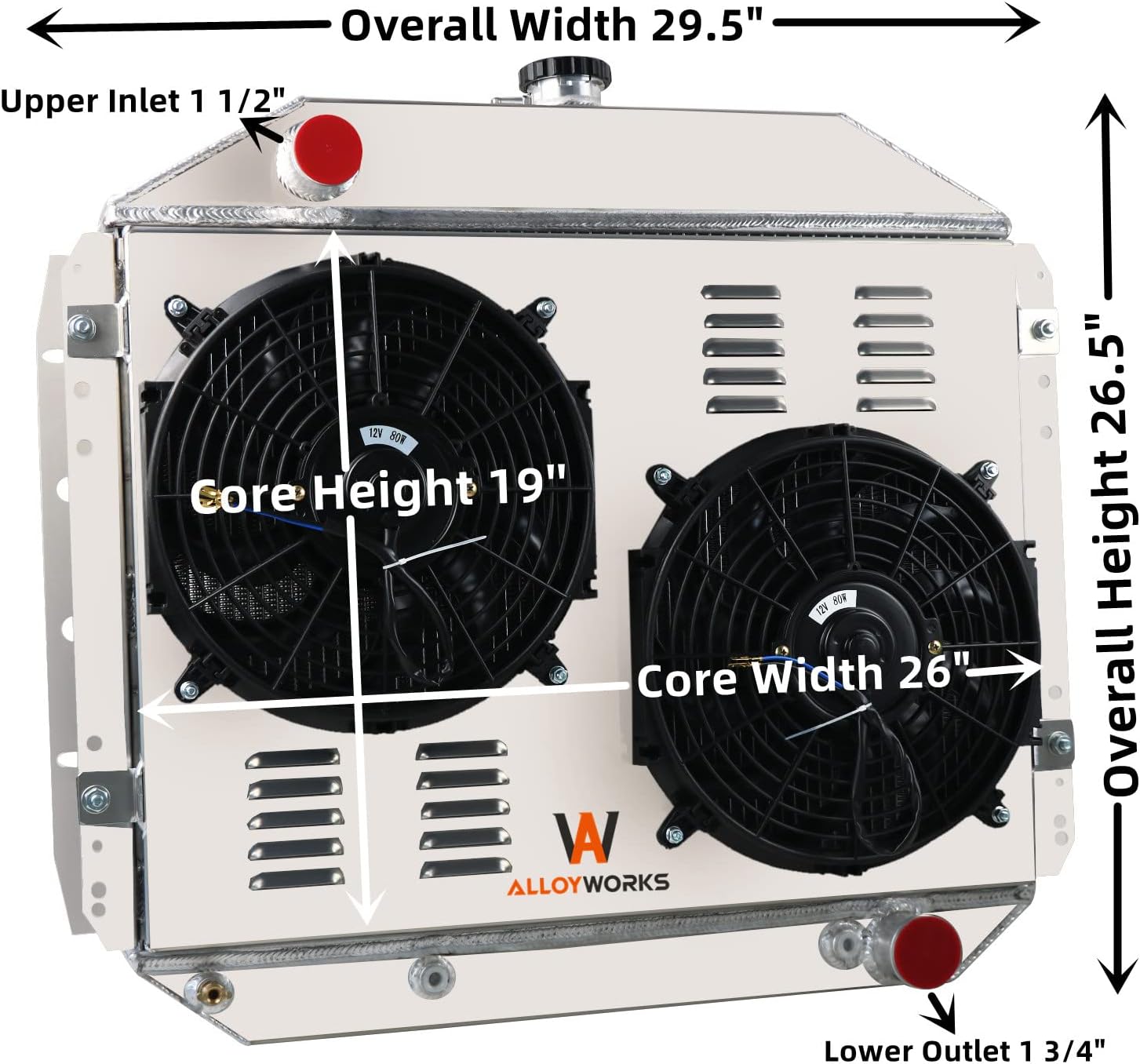

• ◆ [Specification] Core Size: 18 8/9''H X 25 1/2''W; Overall Size: 26 1/6''H X 29 1/3''W; Upper Inlet 1 1/2" located on the Driver side; Lower Outlet 1 3/4" located on the Passenger side; Transmission Oil Cooler: Included; Transmission Oil Cooler Fitting Type: φ26*305*1/4NPT(T);
• ◆ [Premium Quality] Constructed with Aircraft AA5052 aluminum, this radiator is 100% welded and features brazed core technology with no epoxy. The high-quality aluminum core makes it a direct fit and built to last long. Before delivery, each radiator undergoes five checks in the production process and is pressure tested to ensure no leakage.
• ◆ [Higher Density Core] Cooling rows are spaced 3/8 inches apart, giving you 25% more rows within the core compared with most of the other radiators. Also, 14-16 cooling fins per inch give you approximately 1500 more cooling fins and provides 30% more cooling capacity than an usual aluminum radiator.
• ◆ [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption.
