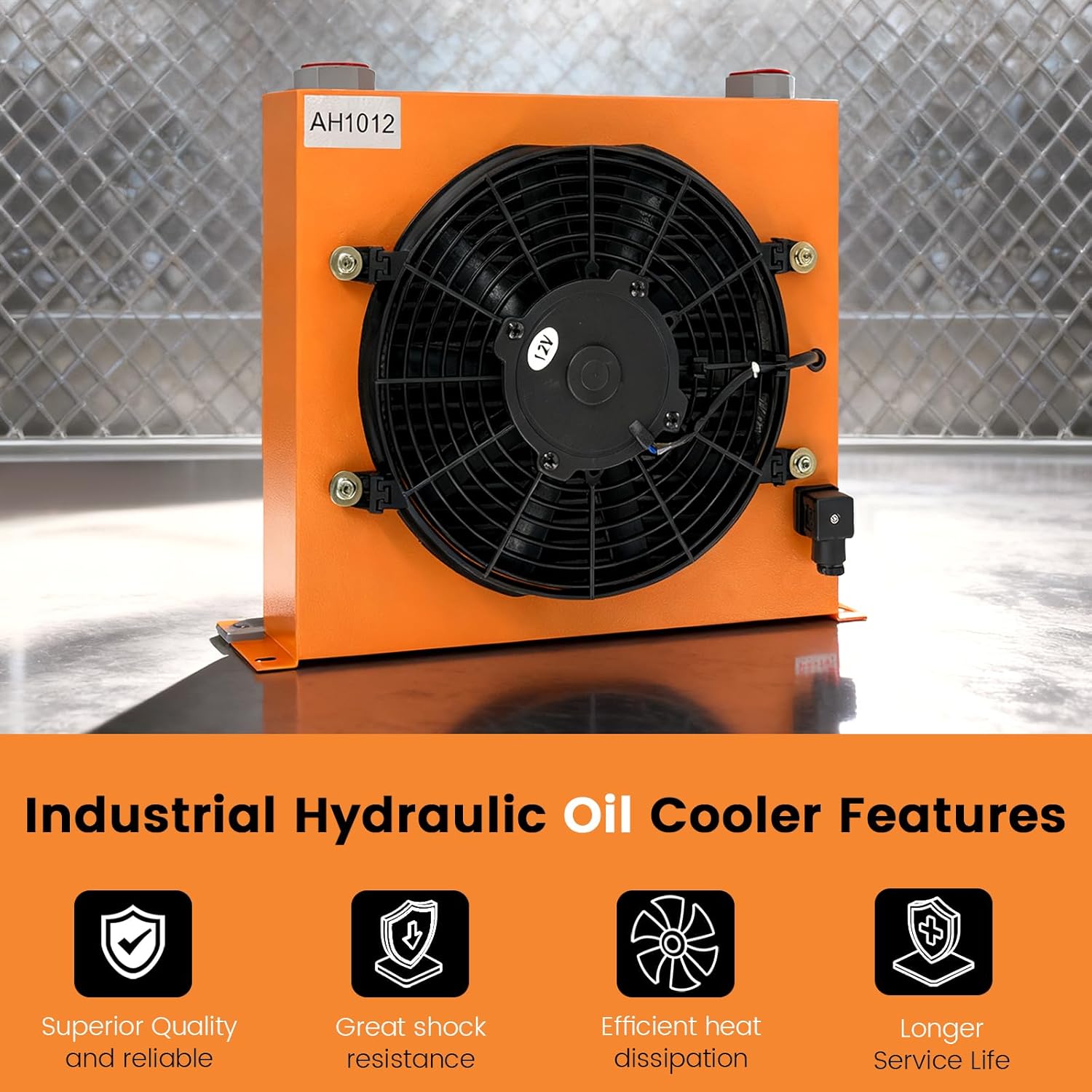

AH1012T-CA Industrial Hydraulic Oil Cooler 12VDC 100L/min 120W Air Cooled Oil Radiator with Precise Welding & Efficient Fan Replace # AH1012T
4.1 (91 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214048749 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 214048749 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Replacement Part Number】AH1012T-CA, AH1012T

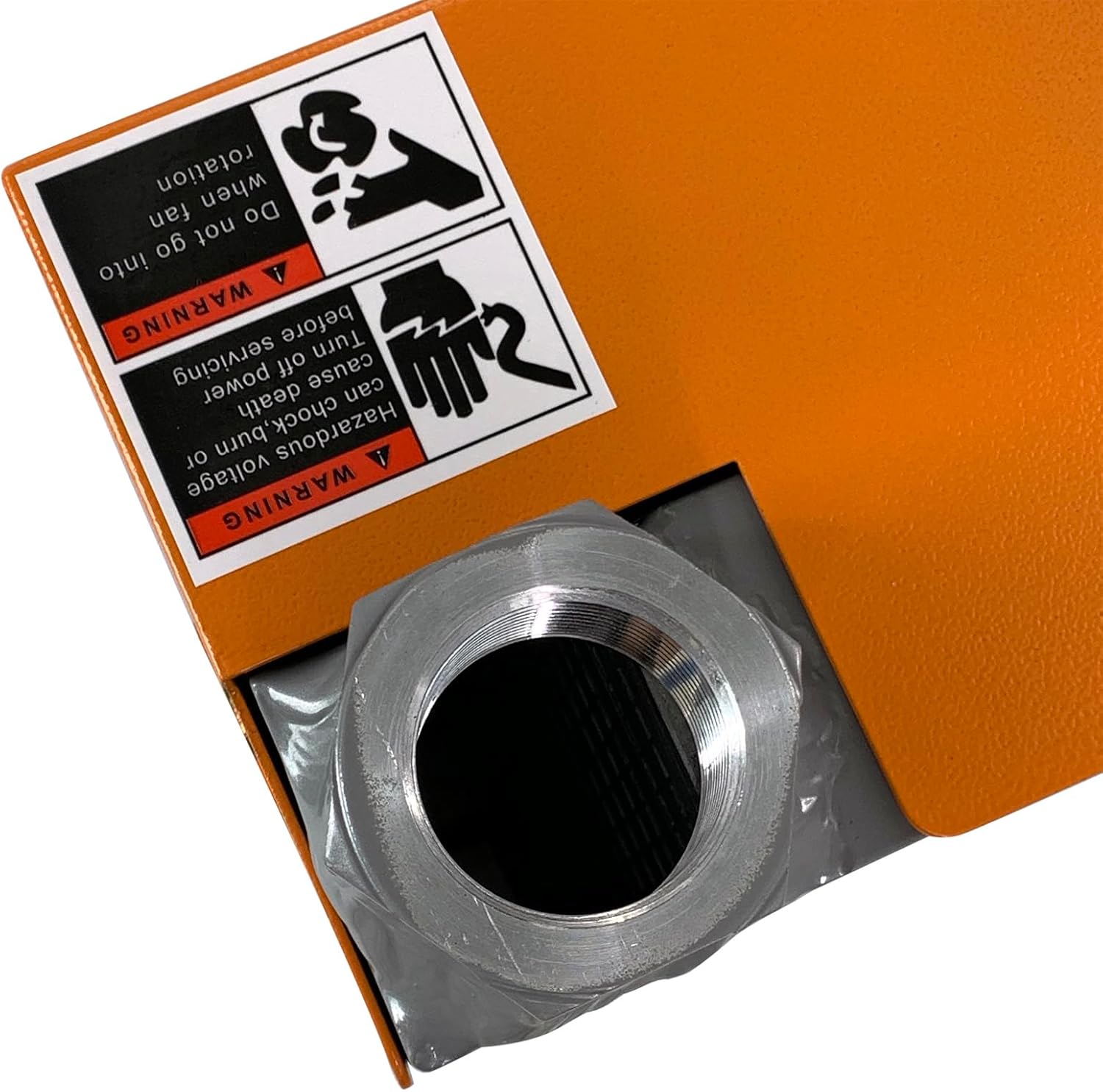

- 【Wide Application】For excavators around 2-3 tons, ah1012t oil air cooler broadly applicable to engineering construction machinery, including concrete mixer trucks and other heavy-duty site equipment. Cranes and lifting equipment, oil pressure systems. 【Note: Connection Type: 1" BSPT Female (Rc 1") Fits standard 1" BSPT male fittings. If using NPT, an adapter is required.】
- 【High Flow Capacity】 With a 100L/min 26GPM flow rate, this oil radiator efficiently handles high-volume hydraulic systems, ensuring optimal performance in industrial machinery and preventing overheating during demanding operations.
- 【Superior Heat Dissipation】This air cooled oil radiator features a large heat dissipation area and high heat exchange efficiency, delivering rapid cooling while withstanding working pressures up to 20bar (2mpa) for enhanced system reliability

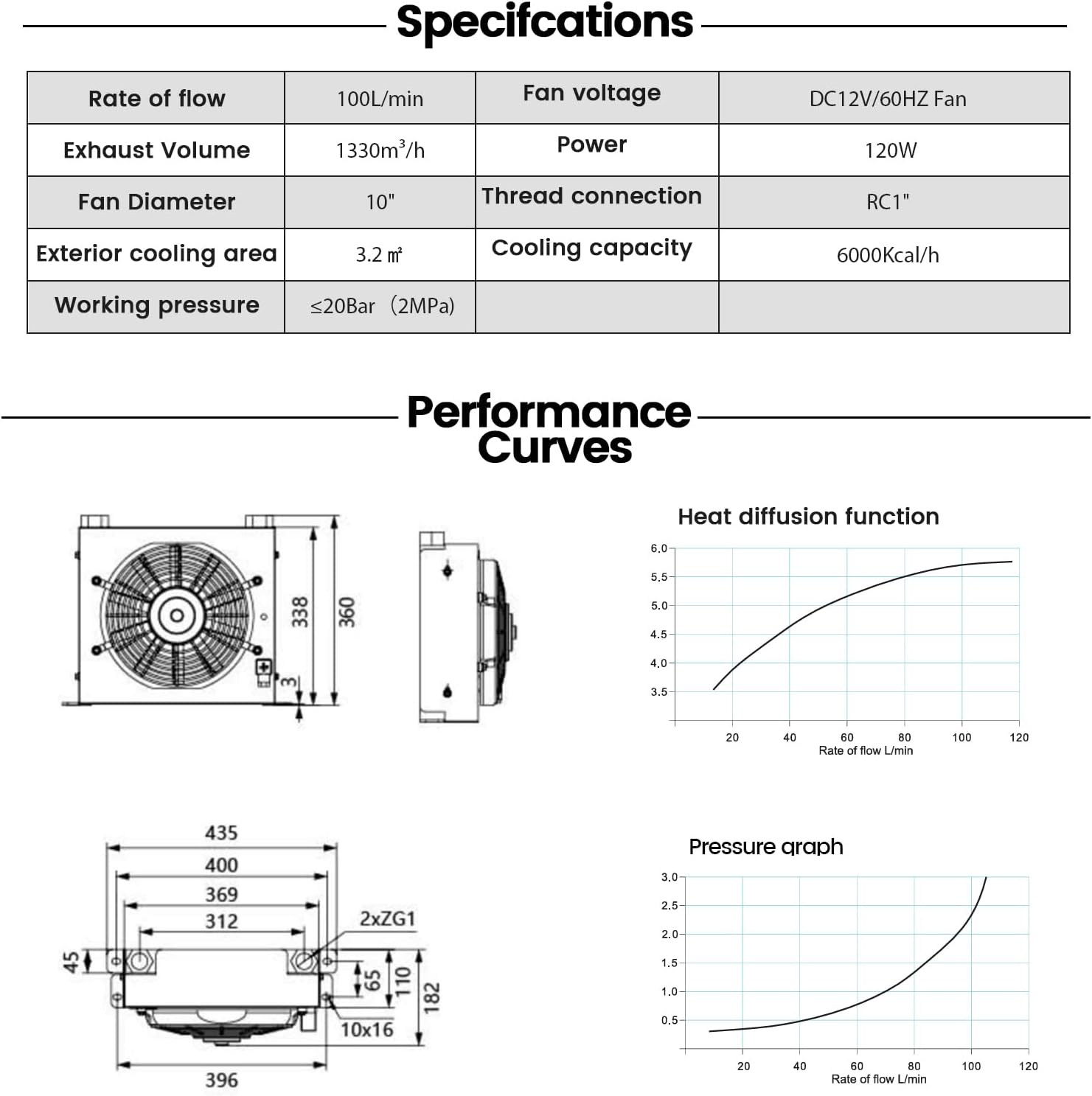

- 【Specifications】 Rate of flow:100L/min (26GPM); Exhaust Volume:1330m³/h; Fan Diameter: 10"; Exterior cooling area: 3.2㎡; Working pressure: ≤20Bar（2MPa); Fan voltage: DC12V/60HZ Fan; Power: 120W; Thread connection: RC1"; Cooling capacity: 6000Kcal/h oil cooler
| Brand | JIUGANG |
|---|---|
| Model | Hydraulic Oil Cooler |
| Exterior | Machined |
| Item Weight | 18.32 pounds |
| Manufacturer | JIUGANG |
| OEM Part Number | AH1012T-CA AH1012T |
| Item model number | AH1012T-CA AH1012T |
| Product Dimensions | 1 x 1 x 1 inches |
| Manufacturer Part Number | AH1012T-CA AH1012T |
Coolers
