Laser Rangefinder Module, 1535nm Eye Safe, 23000m Range, 23km Long Distance 1535nm Eye Safe Compact Rugged Laser Range Finder Module for Drone

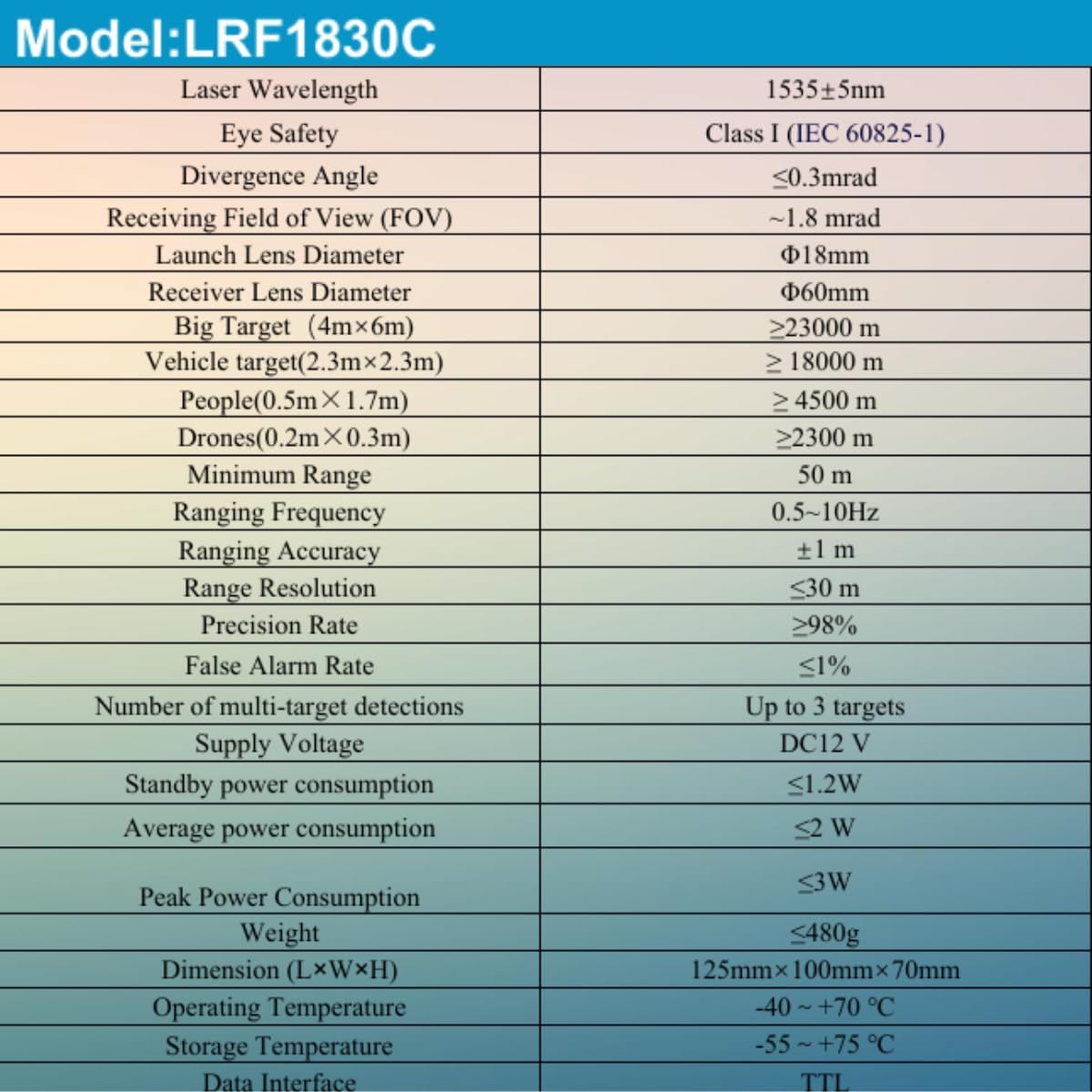

The LRF1830C is a high-precision laser rangefinder module designed for advanced distance measurement applications. Operating at 1535nm wavelength with Class I eye-safe certification, this compact unit offers exceptional range capabilities - detecting large targets up to 23,000 meters away. The device features multi-target detection capability, tracking up to 3 targets simultaneously with 98% precision rate and ±1m accuracy. With its wide operating temperature range from -40°F to 158°F, this robust module maintains reliable performance in diverse conditions. The unit's lightweight design at under 1.1 pounds and compact dimensions (4.9 x 3.9 x 2.8 inches) make it ideal for integration into larger systems. Powered by 12V DC, it maintains efficient operation with low power consumption - just 2W average and 3W peak. The module includes both an 18mm launch lens and a 60mm receiver lens for optimal performance, while maintaining a minimal false alarm rate of ≤1%.

• ADVANCED OPTICS: Features a 1535nm Class I eye-safe laser system with 60mm receiver lens diameter and 18mm launch lens for precise target detection
• EXCEPTIONAL RANGE: Capable of detecting large targets up to 23000m away, vehicles up to 18000m, and smaller objects like drones at 2300m with ±1m accuracy
• MULTI-TARGET CAPABILITY: Simultaneously tracks up to 3 targets with 98% precision rate and less than 1% false alarm rate at 0.5-10Hz ranging frequency
• COMPACT DESIGN: Lightweight at under 480g with dimensions of 125mm×100mm×70mm, featuring DC12V operation with low power consumption of 2W average
• PERFORMANCE SPECS: Operates in temperatures from -40° to +70°F with <0.3mrad divergence angle and 1.8mrad receiving field of view for optimal performance
