12 Gang Switch Panel, DC 12-24V IP66 RGB Auto Dimmable Marine Switch Panel, Automotive Rocker with Multiple Color Options for Car Truck Boat Ship RV ATV UTV

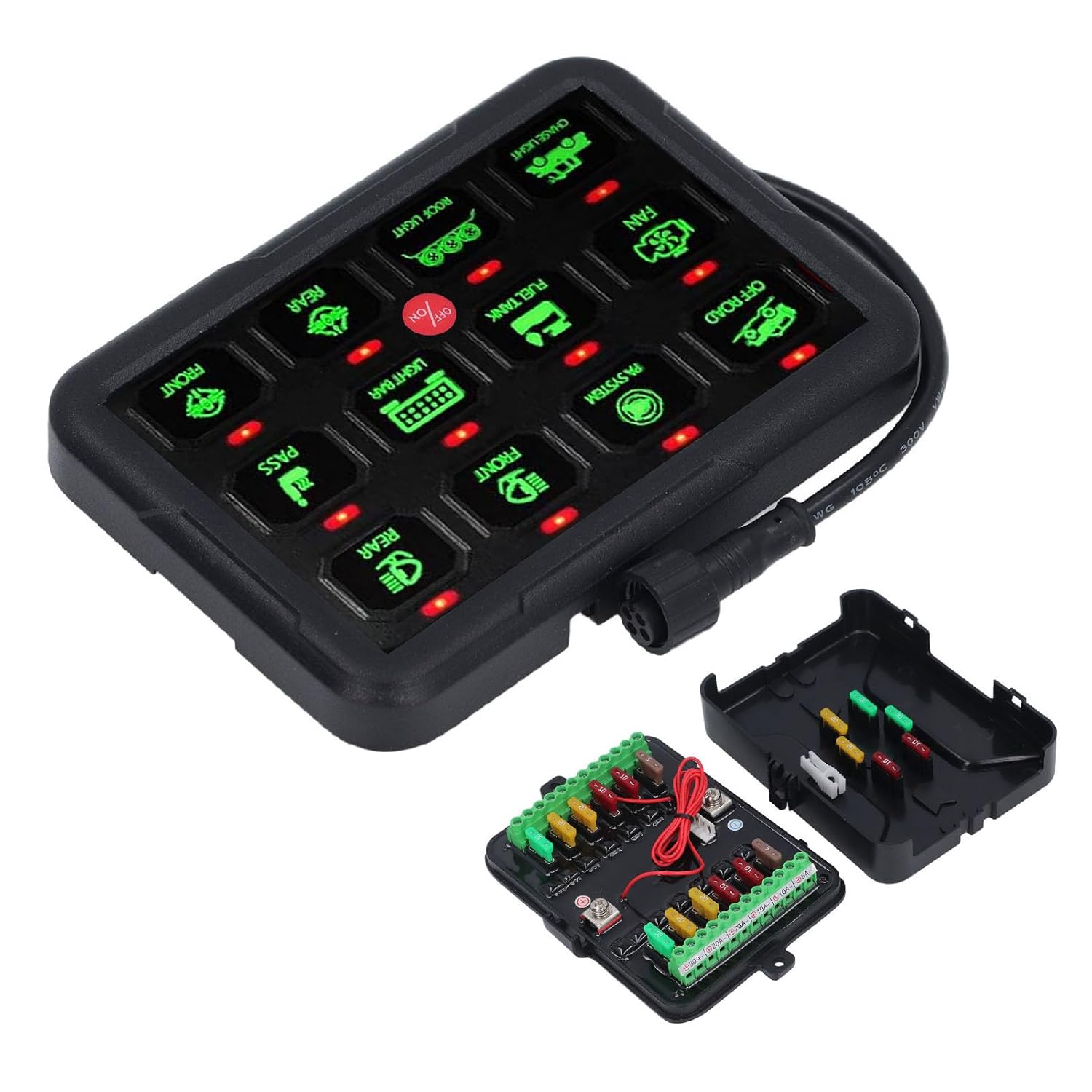

1. Working Parameters: 12 gang switch panel, the working voltage is DC 12‑24V, maximum current is 80A, rated power is 1000‑1500W, working temperature is ‑40℃‑85℃, with IP66 rating, to provide reliable performance. 2. Multiple Light Modes: The RGB switch panel has multiple color options to match the vehicle and your mood. Support 8 single colors (red, orange, yellow, green, cyan, blue, purple, white) switching, long press to switch gradient, , and breath. Automatic backlight brightness adjustment for comfortable . 3. Multiple Protections: The switch panel is has built in solid state relay, providing overvoltage, reverse connection, overcurrent, and overheat guard. Adopting ABS Cover and sturdy stainless steel bracket, for high current and greater stability, ensuring secure use. 4. Wide Application: This switch panel can control up to 12 different LED lights or electrical devices, including LED fog lights, LED light strips, off road lights, fans, etc. Suitable for 12‑24V vehicles, trucks, DC ships, ATVs, UTVs, yachts, etc. 5. Convenient Use: This kit includes a 12 gang switch panel, circuit control box, and 80A circuit breaker to meet various electrical control needs. Equipped with wiring harnesses, fasteners, mounting brackets, and cable ties, easy to install and use. Specification: Item Type: 12 Gang Switch Panel Material: ABS, Stainless Steel Voltage: 12-24VDC Power: 1000-1500W Maximum Current: 80A Working Temperature: -40℃-85℃ Switch Panel Size: Approx. 127 x 90 x 15mm / 5 x 3.5 x 0.6in Circuit Control Box Size: Approx. 165 x 125 x 38mm / 6.5 x 4.9 x 1.5in Hole Installation Size: Approx. 177mm / 7in 12 Circuit Box Circuit 1 Circuit 2 Circuit 3 Circuit 4 Circuit 5 Circuit 6 30A 20A 20A 10A 10A 5A Circuit 7 Circuit 8 Circuit 9 Circuit 10 Circuit 11 Circuit 12 30A 20A 20A 10A 10A 5A How to Use: Follow the instructions in the manual to learn how to use. Package List: 1 x 12 Gang Switch Panel 1 x Circuit Control Box (with Cover) 1 x 80A Circuit Breaker 5 x Wiring Harness 17 x Screws (Allowable Error ±1) 4 x Nuts 2 x Washers 1 x Wrench 4 x Mounting Brackets 10 x Cable Ties 1 x Label Sticker (80 Kinds) 1 x User Manual

• [Reliable Performance] Features DC 12-24V voltage range, 80A maximum current, 1000-1500W rated power, and IP66 rating ensuring stable operation in extreme temperatures from -40℃ to 85℃ for trucks, boats, and RVs without failure during adventures or marine use
• [Customizable RGB Lighting] Offers 8 selectable single colors including red, blue, green, and white with gradient transition and breathing effects plus automatic backlight dimming to match vehicle interiors or personal preferences while driving at night for enhanced visibility and style
• [Advanced Safety Protections] Built-in solid state relay provides overvoltage, reverse connection, overcurrent, and overheat safeguards combined with durable ABS Cover and stainless steel mounting bracket to handle high current demands securely across all 12 circuits without overheating risks
• [Versatile Multi-Device Control] Manages up to 12 separate electrical components like LED fog lights, light bars, fans, or lighting systems simultaneously on 12-24V vehicles including ATVs, UTVs, yachts, and commercial trucks for complete customization of your setup

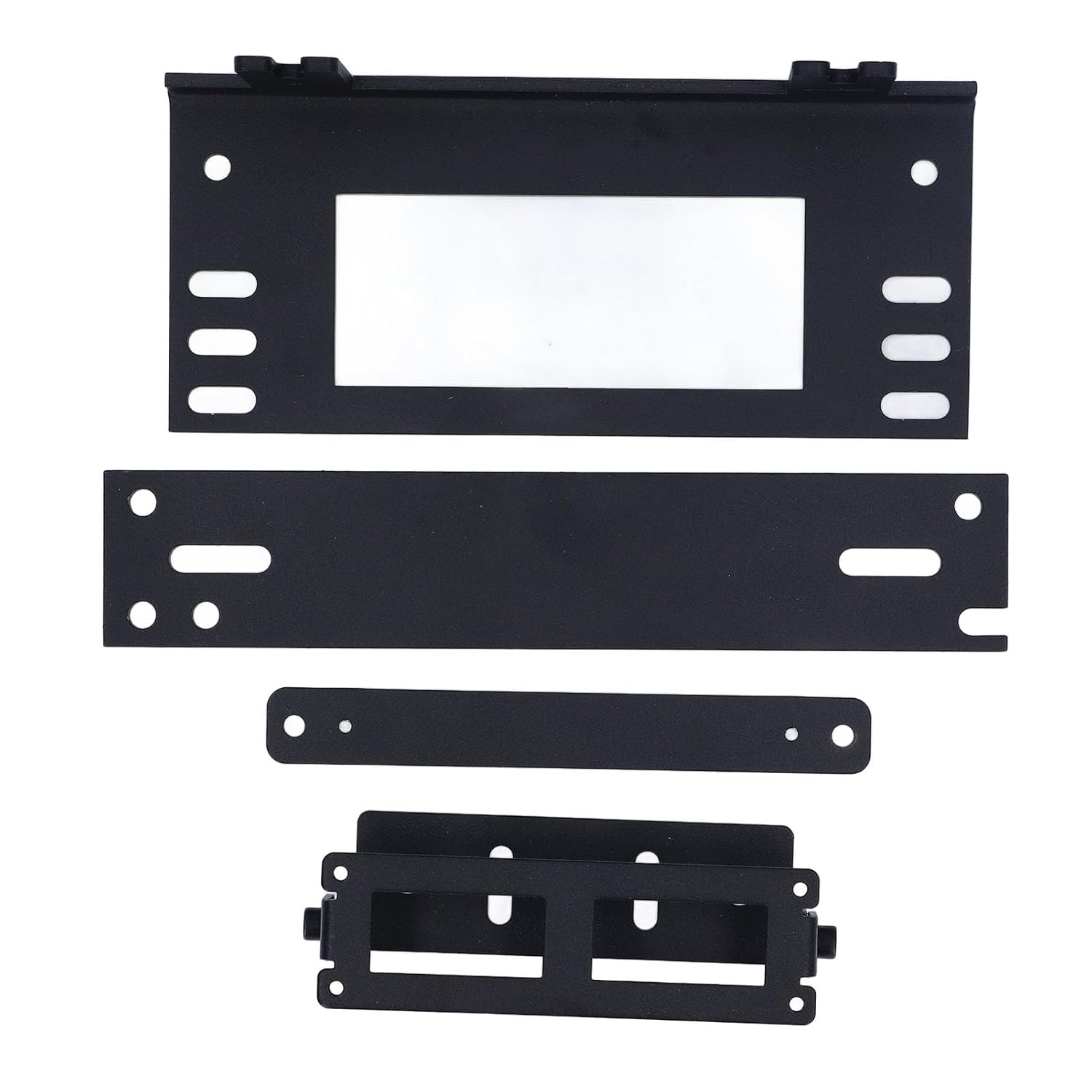

• [Complete Installation Kit] Includes circuit control box, 80A circuit breaker, multiple wiring harnesses, mounting brackets, cable ties, and user manual for straightforward setup without extra tools or components saving time during installation on any vehicle or marine application
