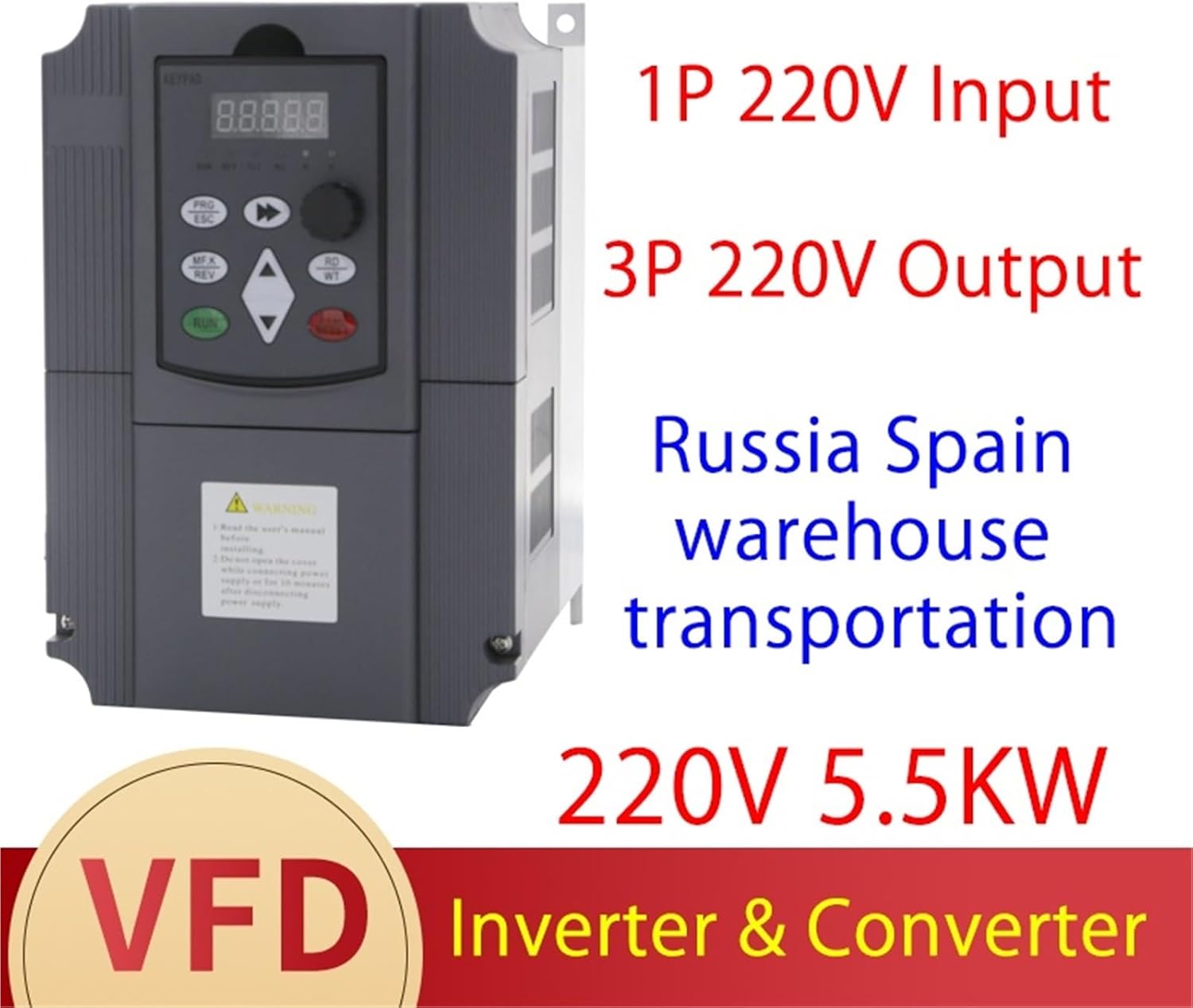

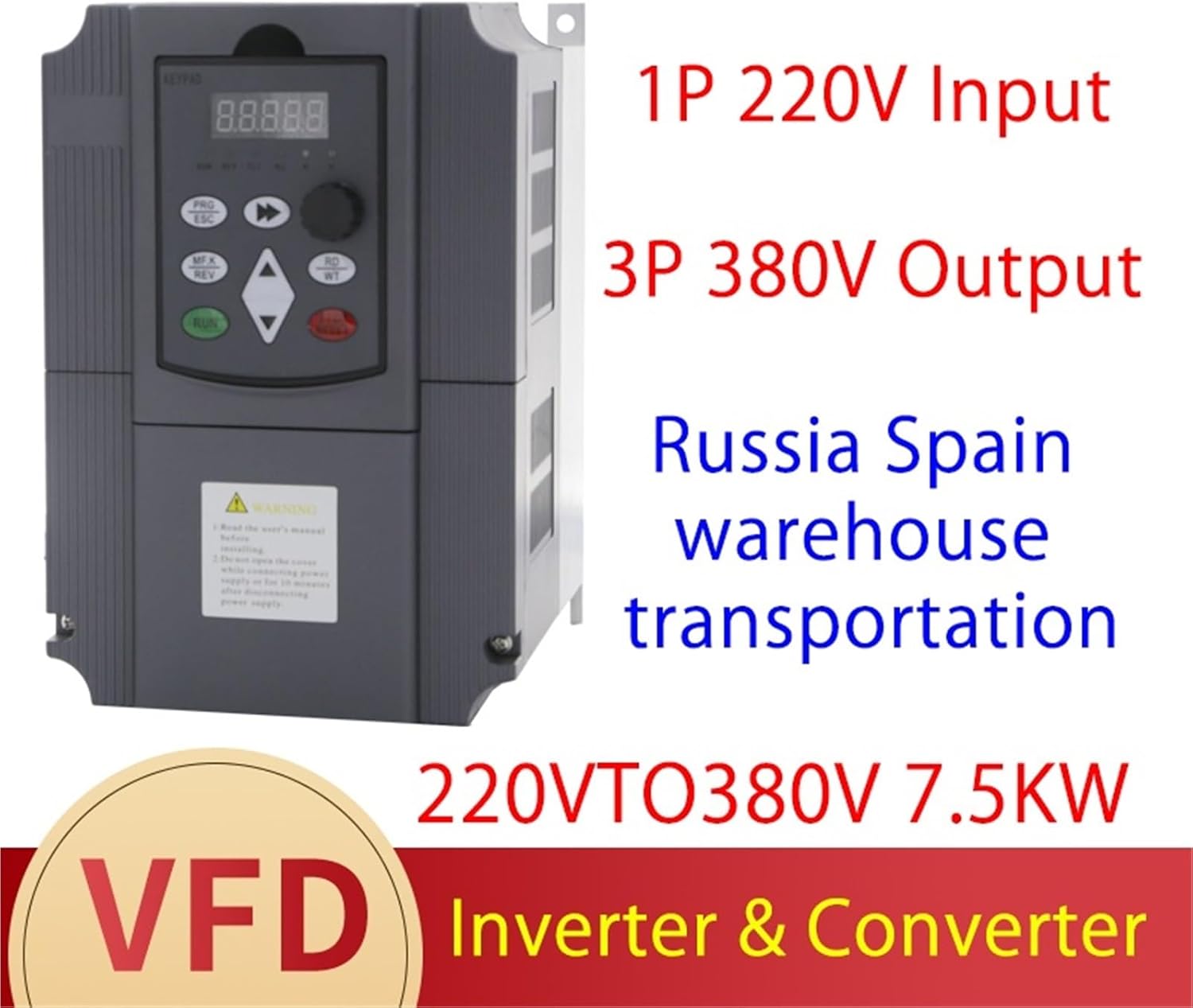

220V to 380V or 220V 7.5KW 11KW 3 Phase Output Frequency Converter/Adjustable Speed Drive/Frequency Inverter Input Voltage Single Phase 220V(5.5kw-8HP,Three-Phase 380V)

Inverters220V to 380V or 220V 7.5KW 11KW 3 Phase Output Frequency Converter / Adjustable Speed Drive / Frequency InverterProduct detailsOur product technologyA.Terminal wiring diagram of our products1.This Serial model has 4-20ma or 0-10V analog Input Functio.2.Support Pump 220V 3-Phases Motor, can connect pressure sensor for constant pressure control.3 Support Motor;you can set P0-10=P0-12=P0-08=P1-04=400HZ ,Set P0-15=9 Carrier Frequency set High level parameter.4 Support Replay Output (inside Relay)5 Support PID function (Constant Pressure 3-Phass Pump Motor)Our products have powerful functions.A. Current limiting function-Avoiding Frequent Over-current Alarm of Frequency Converter.B.Power dip ride through-Instantaneous power outage time converter will not shut down.C.Simple Programming-It can achieve up to 16-segment speed operation.D.Multiple Protection of Motor-Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.wiring diagram 220V 0.75KW-2.2KW220V 0.75KW220V 1.5KW220V 2.2KWModel NO.WK-0007-M1TWK-0015-M1TWK-0022-M1TInput voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-220V 0-650HzPower0.75KW/1HP1.5KW/2HP2.2KW/3HPRated current3.7A7A10AShape size155*82*135 mmpacking size220*150*130 mmWeight1.2KGwiring diagram 220V 4KW220V 4KWModel NO.WK-0040-G1TInput voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-220V 0-650HzPower4KW/5HPRated current16AShape size170*130*160 mmpacking size225*190*230 mmWeight2KGwiring diagram 220V 5.5KW-7.5KW220V 5.5KW220V 7.5KWModel NO.WK600-0055-G1TWK600-0075-G1TInput voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-220V 0-650HzPower5.5KW/8HP7.5KW/10HPRated current20A30AShape size220*152*179 mmpacking size280*205*245 mmWeight3.3KGTYPE SELECTION TABLE220V to 380V/0.75KW220V to 380V/1.5KW220V to 380V/2.2KWModel NO.WK600D-0007-G1T3WK600D-0015-G1T3WK600D-0022-G1T3Input voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-380V 0-650HzPower0.75KW/1HP1.5KW/2HP2.2KW/3HPRated current2.5A3.7A5AShape size155*82*135(145)mmpacking size220*150*130 mmWeight1.2KG220V to 380V/4KW220V to 380V/5.5KWModel NO.WK600D-0040-G1T3WK600D-0055-G1T3Input voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-380V 0-650HzPower4KW/5HP5.5KW/7.5HPRated current8.5A13AShape size170*130*160packing size225*190*230Weight2.2KG220V to 380V/7.5KW220V to 380V/11KWModel NO.WK600D-0075-G1T3WK600D-0110-G1T3Input voltageSingle phase 220V±15% 50Hz/60HzOutput voltageThree phase 0-380V 0-650HzPower7.5KW/10HP11KW/15HPRated current16A25AShape size220*148*170packing size280*205*245Weight3.3KGis_customized : YesOutput Current : 2.5A/4A/7A/10A/16A/20A/30AOutput Frequency : 0-600HzModel Number : WK600/WK600DOutput Power : 0.4kw/0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kwType : DC/AC InvertersWeight : 2KGSize : 160*80*135Output Type : TripleInput Voltage : Single phase 220VOutput Voltage : Three-phase 220V/Three-phase 380VControl Mode : Open loop vector control(SVC) V/F control24V Output Voltage : Yes10V Output Voltage : YesRelay output : Normally open and normally close
