Soil Free Swelling Rate Tester, Neckless Funnel Soil Measuring Tool, Adjustable Height, with Soil Measuring Cup & Stirrer, for Determining Cohesive Soil Moisture Content

Specifications: Name: Soil Swelling Rate Tester Soil Measuring Cup Volume: 10mL Soil Measuring Cup Inner Diameter: 20mm Function Funnel Diameter: Upper opening 51mm / Lower opening 4.5mm Application: Primarily used to determine the volume expansion of cohesive soil during immersion and the moisture content after swelling stabilizes. Packaging List: 1 x Soil Swelling Rate Tester

• PRECISE MEASUREMENT:The Soil Free Swelling Rate Tester professionally measures the volumetric swelling rate and swelling stability water content of clayey soils during immersion, providing reliable soil analysis data.
• HIGH-QUALITY ACCESSORIES:Include an 8-hole pure steel mixing head, an adjustable cast iron leveling base, and a high-hardness measuring cup. Only wiping and cleaning are required after use, eliminating complex maintenance procedures.

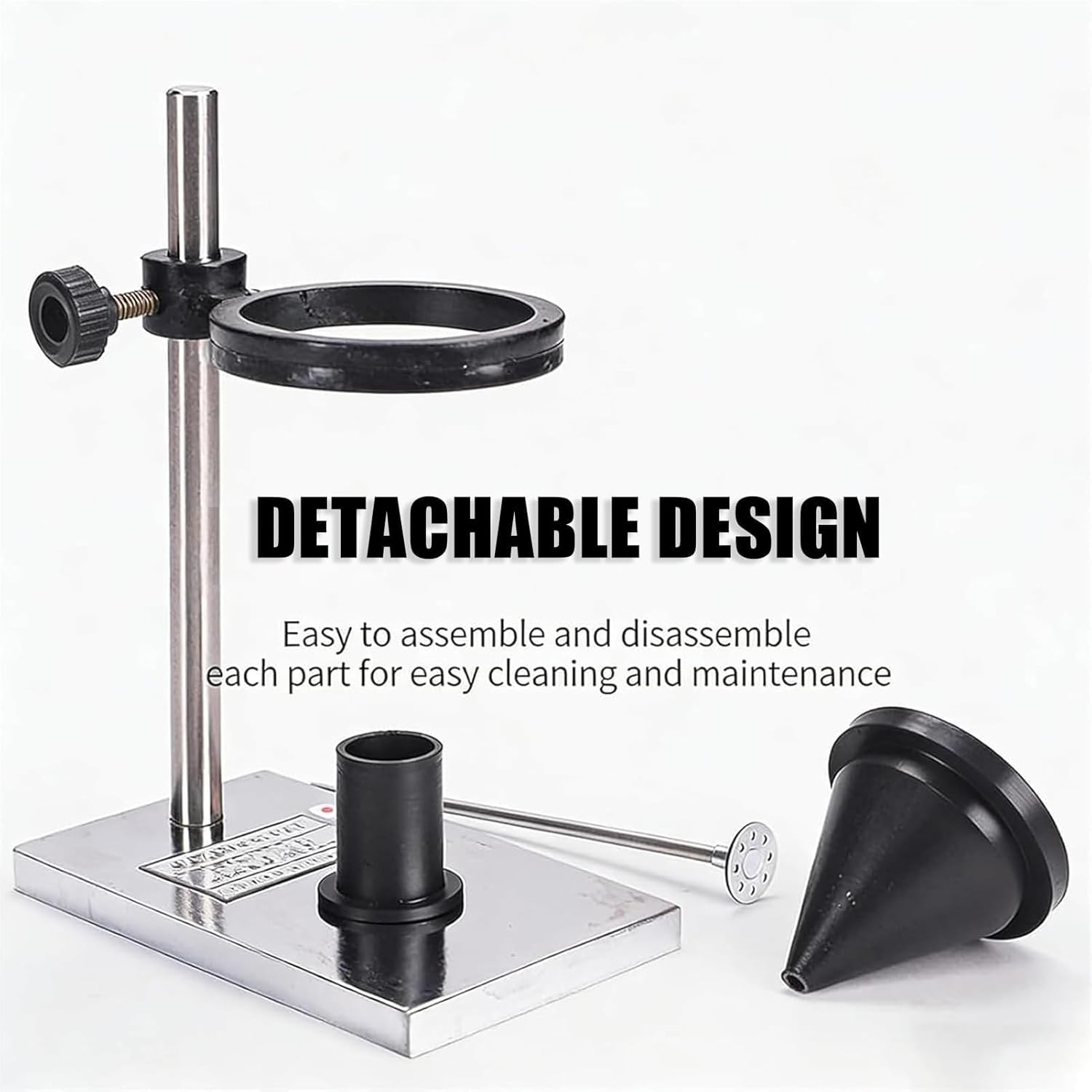

• DETACHABLE STRUCTURE:All componen0ts are detachable, with a fixed combination of measuring cup and funnel, balancing testing stability and operational adaptability, and improving test repeatability.
• HIGH PRECISION TESTING:Equipped with a bottom-mounted mixer, it fully disperses soil particles to avoid agglomeration, ensuring accurate and reliable test results.
• ENGINEERING APPLICABILITY:Complies with highway/railway/geological engineering standards, includes a 10mL measuring cup (20mm inner diameter) and a 5 1/4.5mm funnel, specifically designed for clay swelling rate determination.
