Y&H 5000W Solar Inverter DC 48V to AC 110V/220V Low-Frequency Hybrid Inverter, with 120A MPPT Controllers,Pure Sine Wave 15000W Surge Power, Solar & AC Dual Input, Off-Grid Home System
5.0 (47 items)
Limited Time Sale$359.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214765109 | Release Date | 2026/04/12 | List Price | $240.00 | Model Number | 214765109 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Professional-Grade Power Output】 This 48V 5KVA split-phase low-frequency pure sine wave inverter features integrated 120A MPPT and 42A AC Charger, supporting Utility and Solar charging. Key specs: 6400W(48V) Max PV Input (150V VOC), 60A Max PV Output Current, 5000W Continuous AC Output, 15000W Peak Power. With >98% efficiency and <8ms transfer time, it reliably powers household appliances and tools, ensuring stable waveform output.
- 【Advanced Battery Management】 Compatible with AGM/GEL/LiFePO4 batteries (40-58.4V range). Features 42A max charging current via 3-stage charging (Bulk 56.8V/Float 54V). Includes adjustable low-voltage protection (40V cutoff for 48V systems) and battery temperature monitoring.

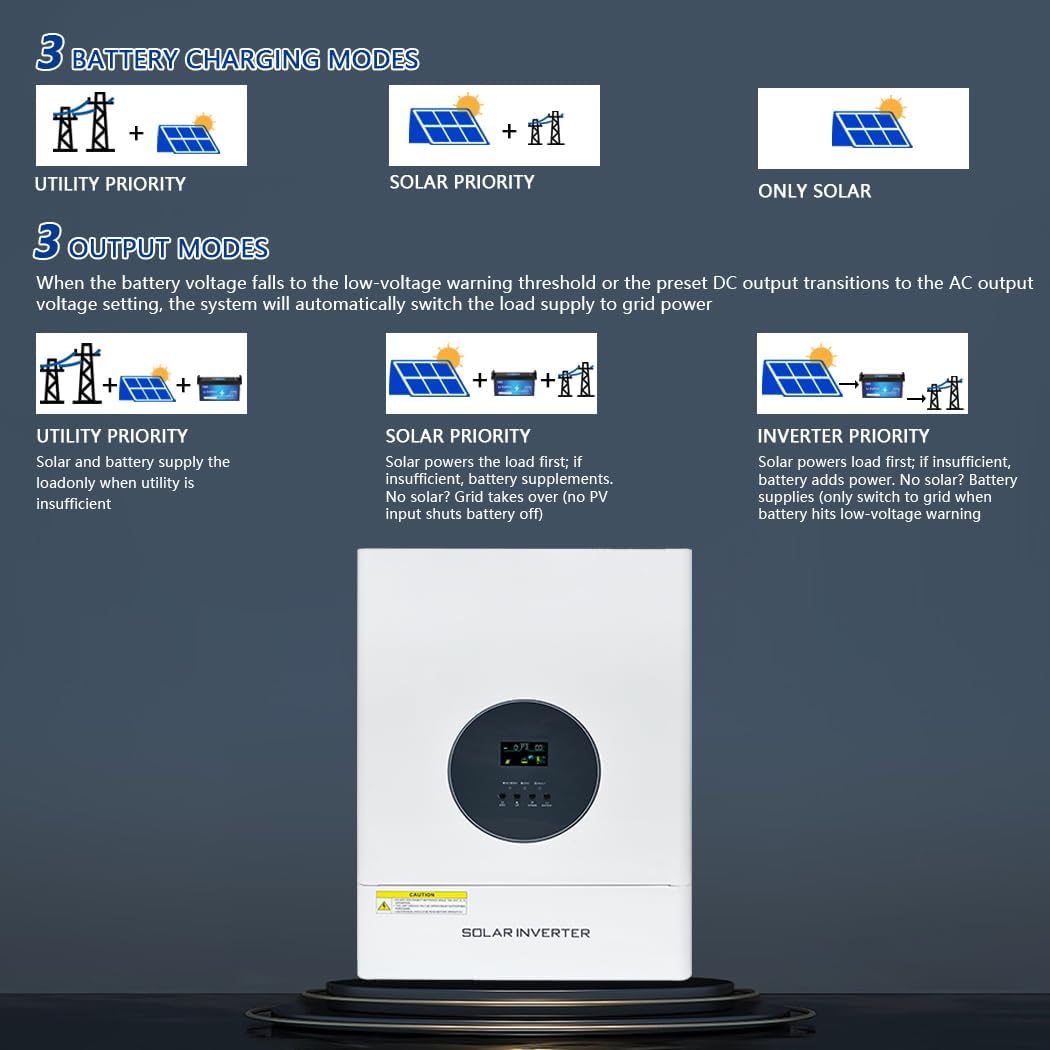

- 【Tri-Mode Smart Operation】 Seamless transition between power sources with 8ms transfer time. Offers three programmable modes: UTI (Utility Priority), SOL (Solar Priority), and SBU (Battery Priority). Maintains stable 220V±10% 50/60Hz output with automatic frequency sensing (40-70Hz range).

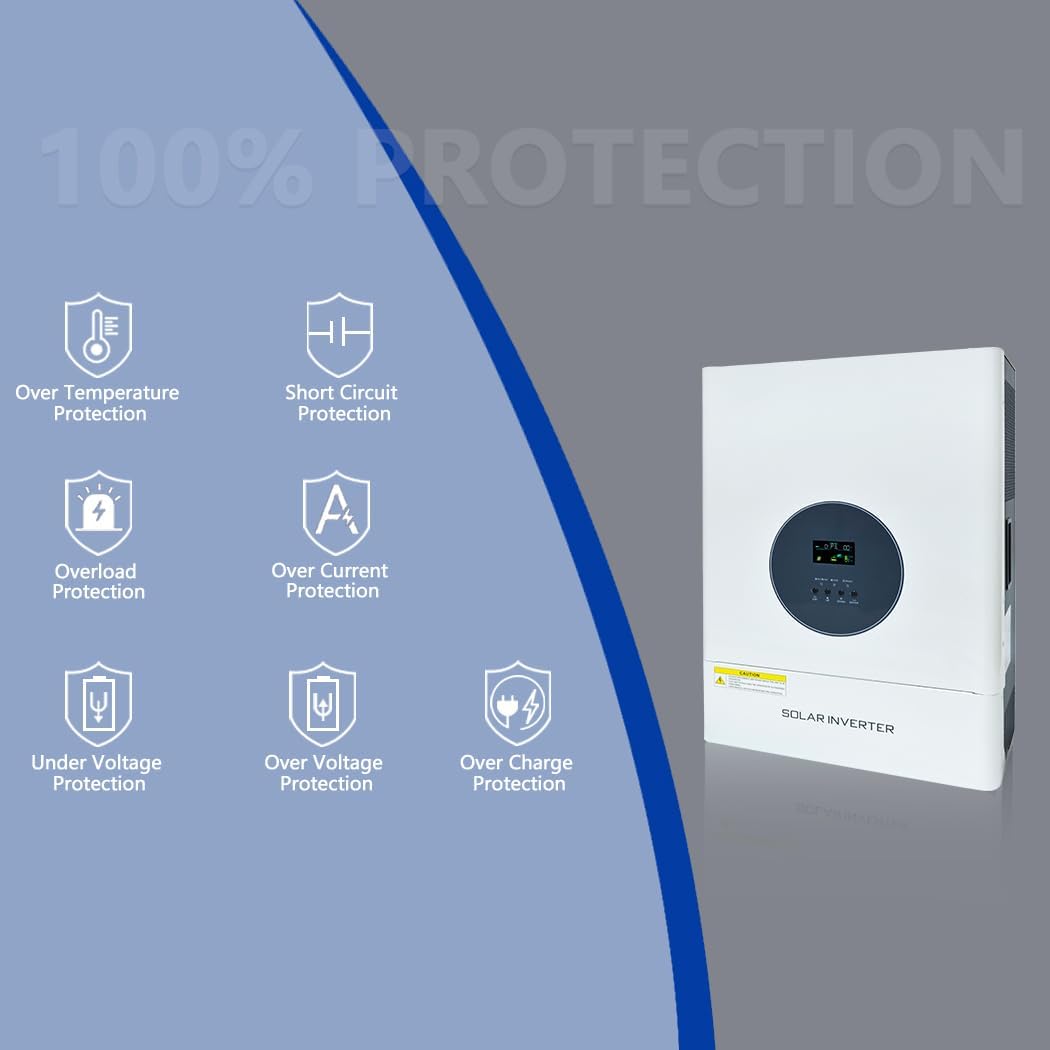

- 【Comprehensive Protection System】 Built-in safeguards including overload (120%), short-circuit, over-temperature (>50℃ shutdown), reverse polarity, and DC over-voltage protection (62.4V alarm). Features IP20 enclosure with dual-fan cooling (-10℃ to 50℃ operating range) and <45dB noise level.
- 【High-Efficiency Design】 Optimized circuitry achieves >98% conversion efficiency in bypass mode. Supports parallel battery connection (4-16 batteries for 48V system) and includes RS232/RS485 communication ports for monitoring. Simplified maintenance with accessible DC fuse location under right fan.
- 【Low-Frequency Inverter Core Advantages】 Unlike high-frequency models, this 5KW low-frequency inverter offers unparalleled reliability and stability, thanks to its robust ring transformer design. It ensures seamless, uninterrupted power through grid fluctuations and load changes. Lower EMI makes it ideal for sensitive applications. Simplified design and fewer components lead to extended lifespan and easier.
| UPC | 704334627161 |
|---|---|
| Brand | Y&H |
| Voltage | 48 Volts |
| Wattage | 5000 watts |
| Frequency | 60 Hz |
| Model Name | UD6348-5000W-48V |
| Item Weight | 66 Pounds |
| Manufacturer | Y&H |
| Model Number | UD6348-5000W-48V |
| Output Power | 5000 Watts |
| Power Source | Solar and Battery Powered |
| BuiltIn Media | Low-Frequency solar inverter |
| Input Voltage | 48 Volts (DC) |
| Mfr Part Number | Temank-10000W-48V |
| Antenna Location | Home, Office, Vehicle |
| Battery Capacity | 200 Amp Hours |
| Warranty Description | Free replace within 30 days, free repair and replacement of parts within 1 year, and the shipping cost incurred needs to be borne by oneself. |
| Standby Power Shutoff | High |
| Peak Output Power Watts | 30000 |
| Inverter Capacity VoltAmp | 12500 |
| Electrical Output Waveform | Pure Sine Wave |
