Stainless Steel Optical Rain Gauge RS485 Weather Station Dual-Channel Pulse Rainfall Sensor IP65 Precipitation Monitoring（Pulse Output）

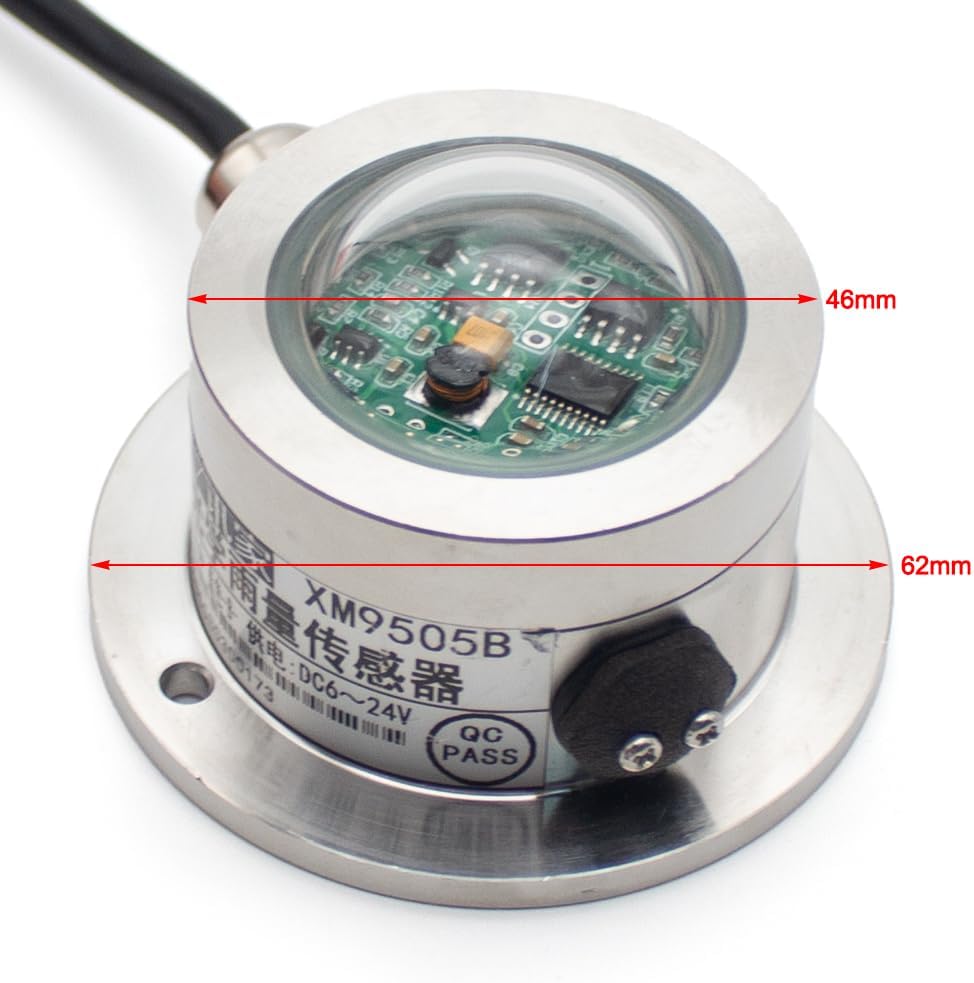

Stainless Steel Optical Rain Gauge RS485 Weather Station Dual-Channel Pulse Rainfall Sensor IP65 Precipitation MonitoringDescription: The XM9505 Series is a cutting-edge stainless steel optical rain gauge designed for professional meteorological monitoring. Featuring a dual-channel infrared optical sensing system and upgraded stainless steel housing, it delivers exceptional durability and accuracy in harsh environments. With RS485 and pulse output options, this sensor is ideal for weather stations, agricultural systems, smart city projects, and traffic management. Specification: Model: XM9505B (RS485) / XM9505P (Pulse) Output: RS485 (Modbus) / Pulse Power Supply: DC 5-24V (XM9505B) / DC 12-24V (XM9505P) Power Consumption: 0.3W (@12V, 20mA) Resolution:0.1mm Accuracy: ±5% (@25℃) Max Rainfall Rate: 14.5mm/min Sensing Diameter: 3.5cm Operating Temperature: -40°C ~ 60°C Humidity Range: 0~99% RH (Non-condensing) Pressure Range: Standard Atmospheric Pressure ±10% Ingress Protection: IP65 Cable Length: 1 meter (standard) Mounting Method: Flange Mounting Application: Meteorological monitoring stations Smart agriculture irrigation systems Flood warning systems Highway/railway weather monitoring Urban hydrological networks Package included: 1 x Optical Rain Gauge

• .Stainless Steel Housing - Corrosion-resistant, IP65 waterproof, suitable for extreme temperatures (-40°C to 60°C).
• Dual-Channel Infrared Optics - Ensures reliable detection with 3.5cm rain-sensitive diameter and 0.1mm resolution.
• Dual Output Modes - RS485 (Modbus protocol) or pulse signal for flexible integration with data loggers/controllers.
• High Precision - ±5% accuracy at 25°C, capable of measuring up to 14.5mm/min rainfall intensity.
• Low Power Consumption - Only 0.3W@12V, compatible with DC 5-24V wide voltage input.
