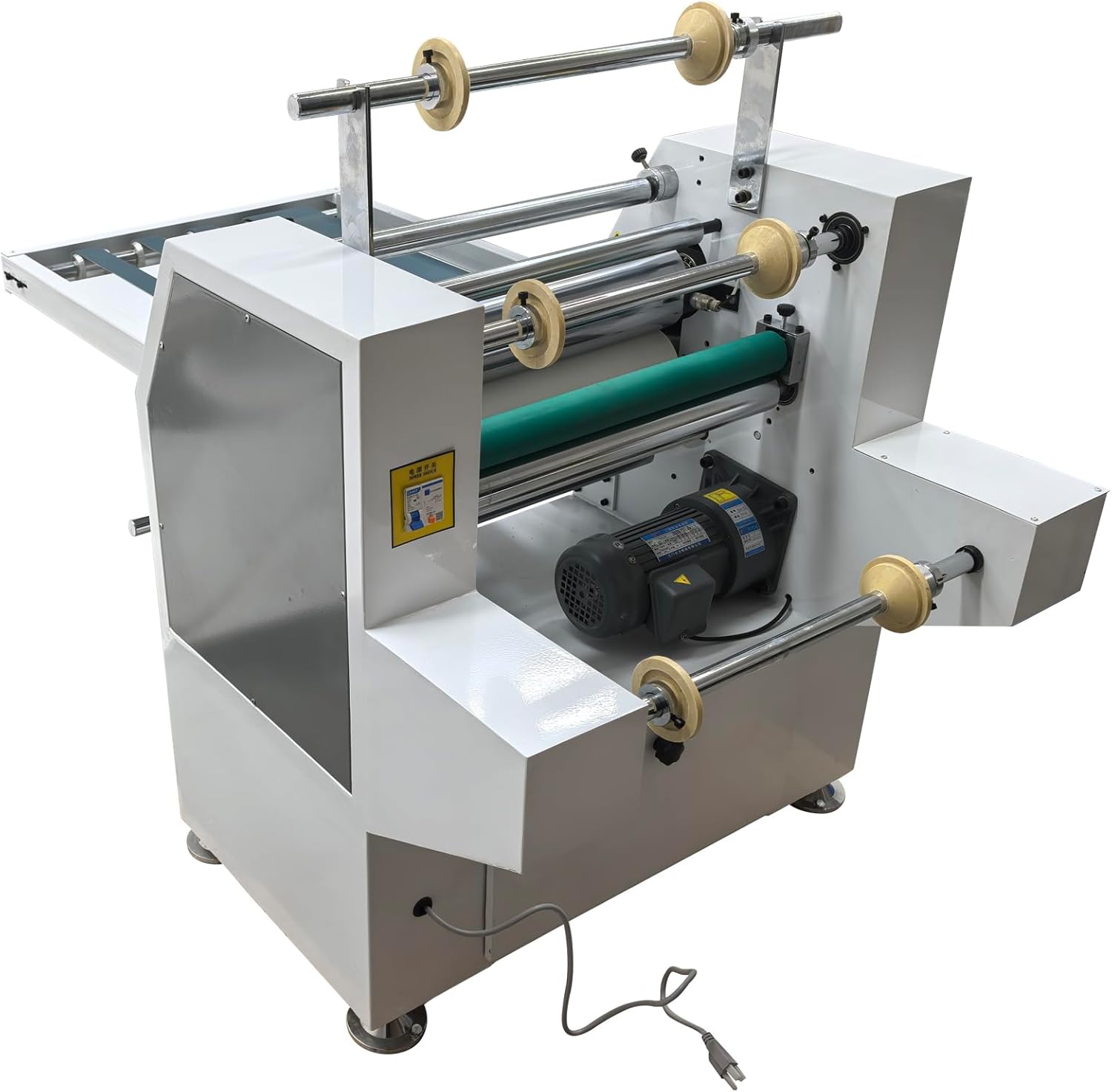

450mm/17.72in Steel Roller Thermal Laminator with Conveyor Belt and Winding Mechanism, Electric Commercial Hot/Cold Laminating Machine for BOPP Film, Paper Poster Pre-Coating Film

Parameters Model ZXFM-520J Maximum laminating width 450mm (17.72in) Applicable material ≤8mm (0.31in) in thickness Laminating speed 0~15m/min (0~49.21ft/min) Stepless variable-frequency speed regulation Laminating temperature range 0~140˚C Pressure range Cam Spring type Pressurization Heating mode Electric heating built-in mirror tube Feeding frame Conveyor belt type automatic feeding frame Collecting and unwinding frame Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding Voltage 110V Total power 2Kw Machine size 90*142*110cm (35.43*55.91*43.31 inches) Net weight 159KG (350.53LBs) Item Included (120130): 1 x Steel Roller Thermal Laminator 110V

• Professional Roll-To-Roll Lamination： Features a steel roller thermal laminating system designed for continuous roll-to-roll and single-sided lamination. Compatible with BOPP film, pre-coating film, and protective film, it enhances printed materials with smooth surfaces, vibrant colors, and improved durability against water and wear. Ideal for printing shops and packaging facilities seeking consistent, high-quality finishes on paper, cartons, and non-woven fabrics.

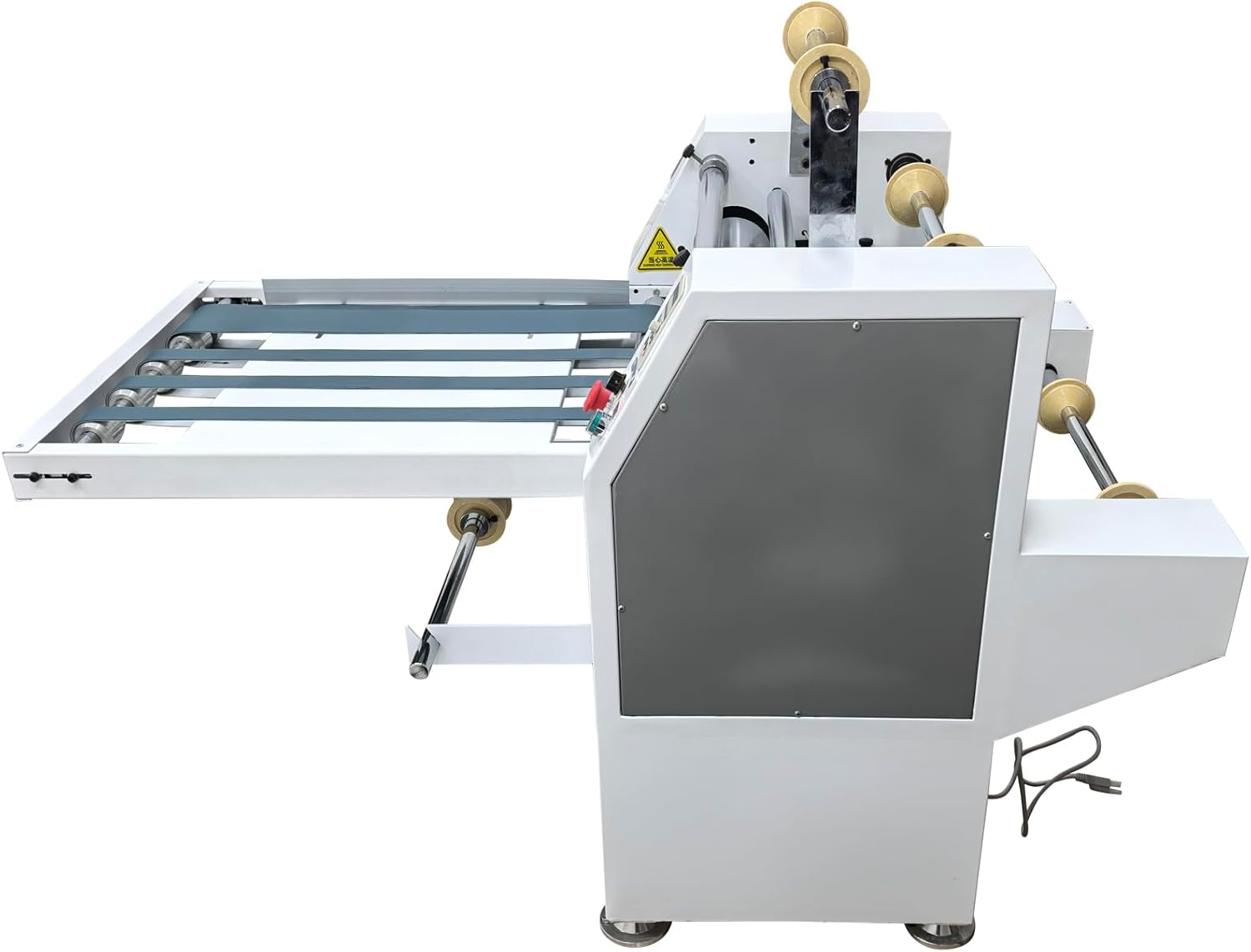

• Automated Conveyor Feeding System： Includes an extended conveyor belt feeding frame with side-guiding baffles to ensure stable, deviation-free material transport. The automatic feeding mechanism supports seamless processing of substrates up to 8mm thick, reducing manual handling and increasing operational efficiency. This design minimizes jams and misalignments, making it suitable for prolonged production runs in diverse environments.

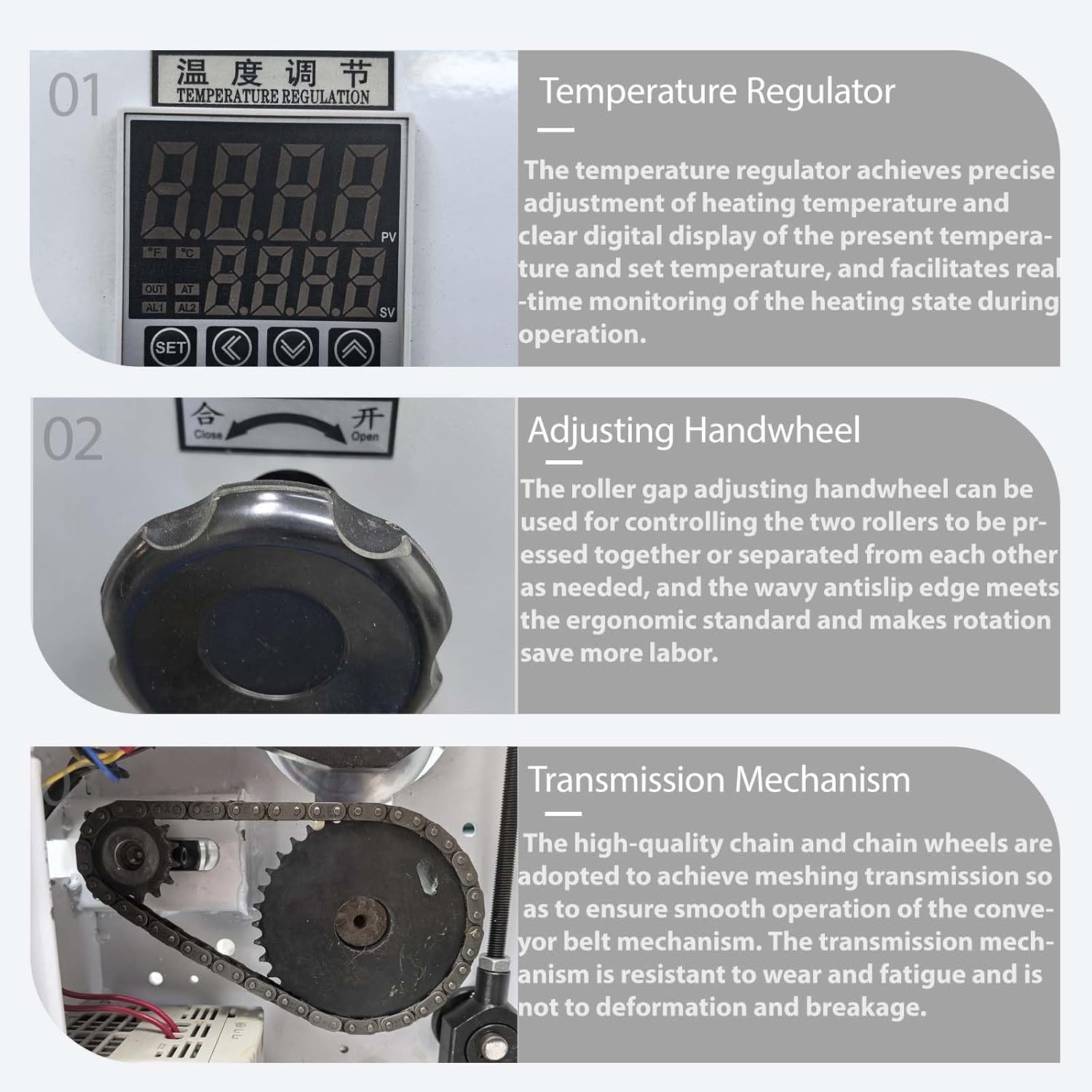

• Precise Temperature And Speed Control： Equipped with a digital temperature regulator (0–140°C) and stepless variable-frequency speed controller (0–15m/min). Users can monitor real-time heating status and adjust laminating parameters with high precision via clear LED displays. The electric heating system with built-in mirror tubes ensures uniform heat distribution, preventing film wrinkling or delamination during high-speed operations.
• Durable Steel Roller Construction： Utilizes mirror-polished, chrome-plated steel rollers that provide even pressure and consistent adhesion across the entire laminating width (450mm). Resistant to high temperatures and deformation, these rollers ensure reliable performance over extended use. The cam spring pressurization system allows quick gap adjustments via an ergonomic handwheel, accommodating various material thicknesses effortlessly.
• Integrated Tension And Winding Management： Incorporates a manual deviation-correction unwinding frame and tension-adjusting mechanism for balanced film rollout and neat rewinding. The winding force adjusting wheel enables fine-tuned control to prevent slack or over-tightening, ensuring uniform lamination results. Designed for 110V operation with 2kW power, this compact unit offers stable performance while occupying minimal workshop space.
