Heavy-Duty 110V Steel Roller Thermal Laminator with Conveyor Belt, 17.72in Width, Automatic Feeding & Winding Mechanism, Hot Roller Laminating Machine for BOPP Film, Pre-Coating Film, Paper

Package included: (120130) 1set Industrial 110V Steel Roller Thermal Laminator with Conveyor Belt Product Parameters Model: ZXFM-520J Max laminating width: 450mm (17.72in) Applicable material: ≤8mm (0.31in) in thickness Laminating speed: 0~15m/min (0~49.21ft/min), Stepless variable-frequency speed regulation Laminating temperature range: 0~140˚C Pressure range: Cam Spring type Pressurization Heating mode: Electric heating built-in mirror tube Feeding frame: Conveyor belt type automatic feeding frame Collecting and unwinding frame: Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding Voltage: 110V Total power: 2Kw Size of the Thermal Laminator: about 35.43x55.91x43.31 inches Net weight: about 350.53LBs Operation Method 1. Assemble the machine correctly, and install the film roll, the backing paper winding roll and the finished product winding roll appropriately. 2. Connect the machine to the 110V power supply with reliable grounding. 3. Turn on the power switch, set the heating temperature as needed, and the machine starts heating. 4. After the laminating temperature reaches the set temperature, turn on the start button, and the machine starts running. 5. Place the paper to be laminated on the conveying platform, and the paper is automatically fed into the machine and subjected to laminating operation. 6. In the laminating process, the backing paper can be automatically wound, and the finished product is also automatically wound. 7. After accomplishing the laminating operation, press the stop button, disconnect the power supply, use the adjusting handwheel to separate the rollers to avoid roller deformation, and clean the machine thoroughly.

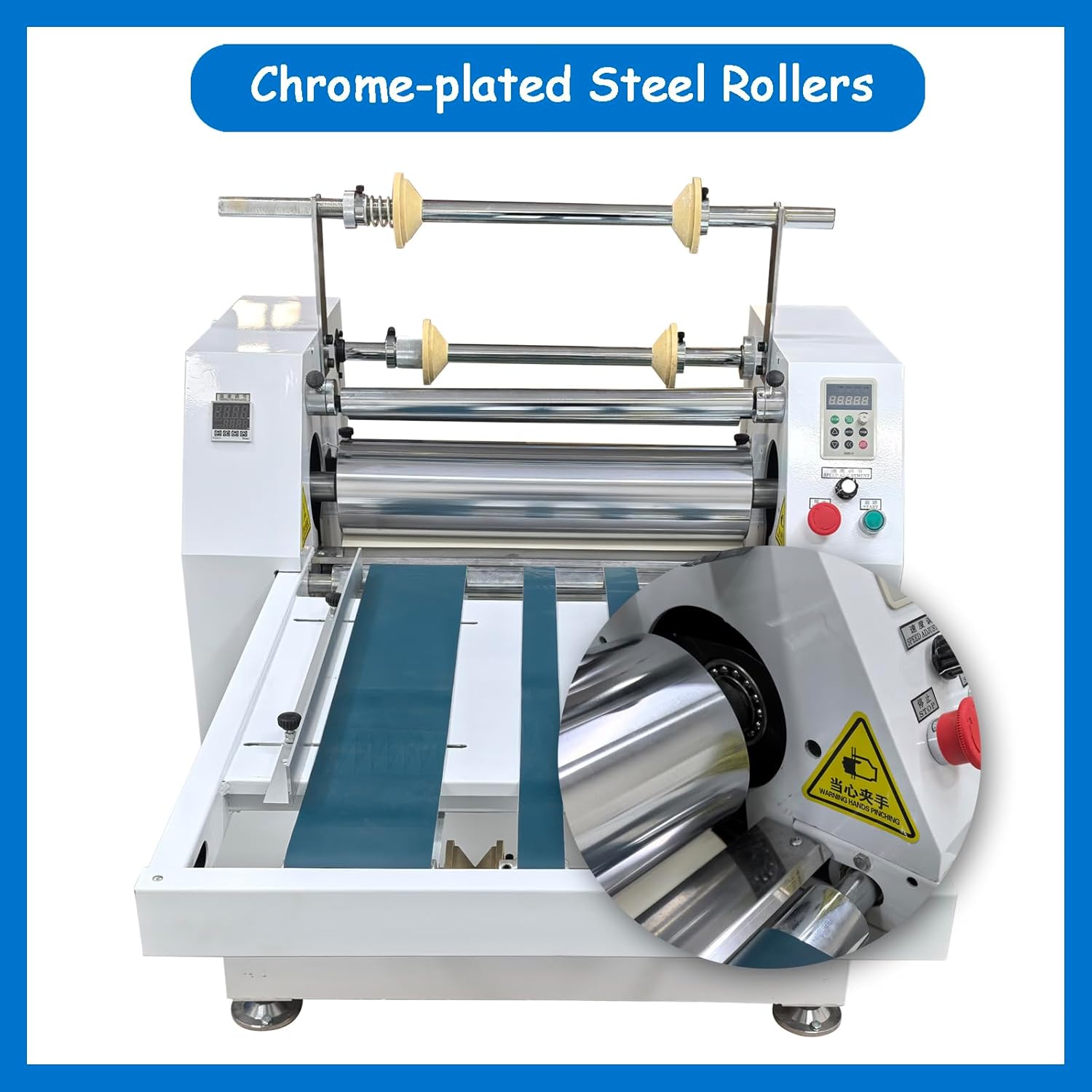

• Steel Roller Construction & Precise Heat Control: This thermal laminator is built with high-durability chrome-plated steel rollers that ensure complete film-to-material adhesion, uniform temperature distribution, and resistance to high-temperature operation. The digital temperature regulator provides precise heating adjustments with a clear dual display for set and current temperatures, supporting a range of 0–140°C for BOPP film, pre-coating film and protective film applications.

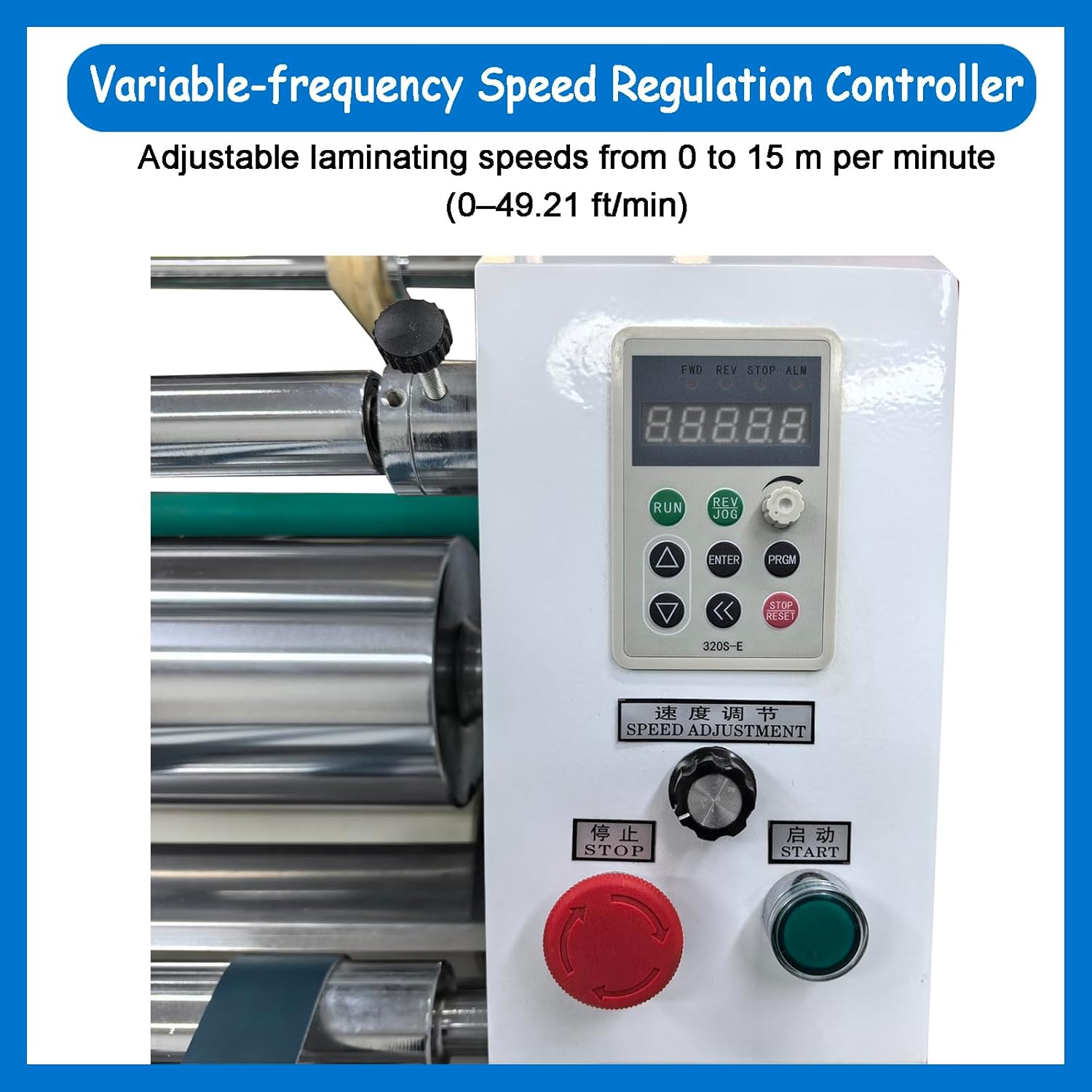

• Automatic Feeding System & Stepless Speed Control: Features a lengthened conveyor belt mechanism with side-leaning baffle design that ensures smooth, stable, and accurate automatic paper feeding. This stepless variable-frequency speed regulation system allows adjustable laminating speeds from 0 to 49.21 ft/min, making it ideal for continuous production in printing shops and packaging factories.

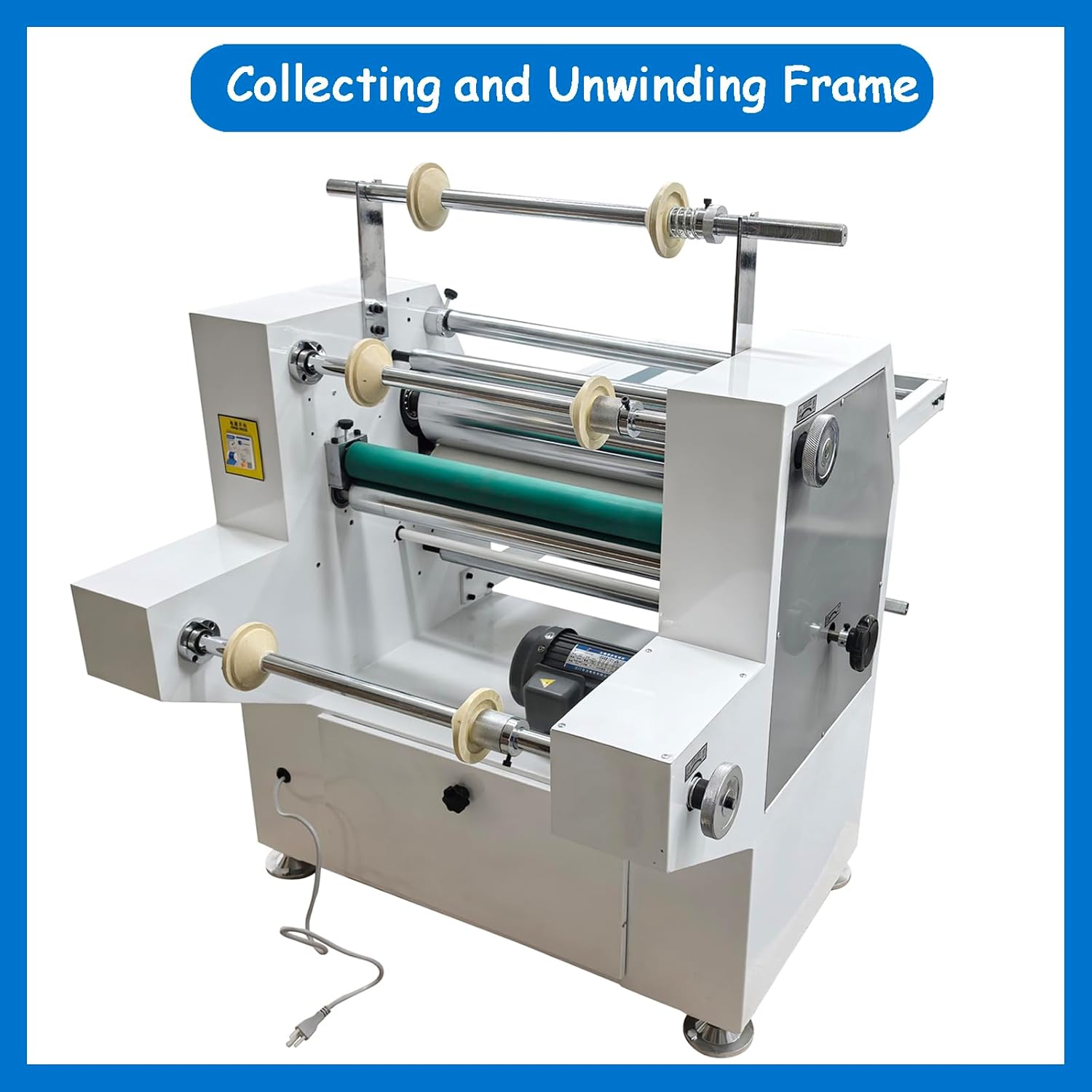

• Winding Mechanism with Tension Control: Our hot roller laminating machine features manual deviation correction film unwinding frame, backing paper winding and discharged material winding for roll-to-roll functionality. The tension adjusting mechanism automatically compensates for tension fluctuation to maintain uniform film lamination, while the winding force adjusting wheel ensures materials are wound evenly and properly without wrinkles.
• Dual Lamination Modes: Supports single-sided lamination and roll-to-roll combination, accommodating a wide range of substrates, such as paper, packaging cartons, ABS coils and non-woven materials with Max thickness of 0.31in and laminating width up to 17.72in. The cam spring pressurization system and adjustable roller gap handwheel provide precise pressure control and easy roller separation for quick setup changes.
• User-friendly Design: This steel roller laminator use high-quality chain and sprocket meshing transmission components that resist wear and deformation for reliable operation. The compact structure features a anti-slip roller gap adjusting handwheel designed to meet ergonomic standards for labor-saving, combined with speed controller knob for precise adjustments, ensuring stable in professional places.
