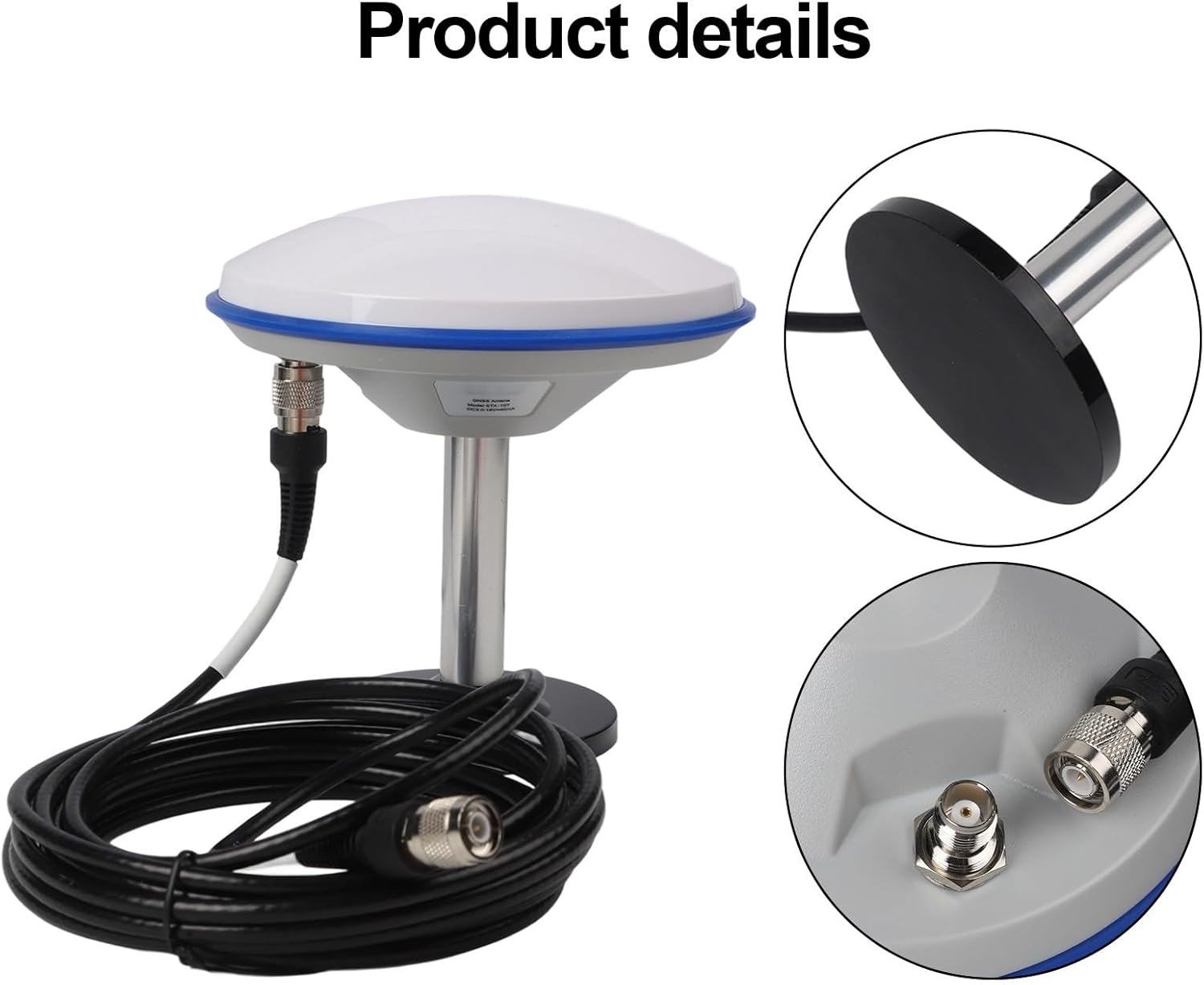

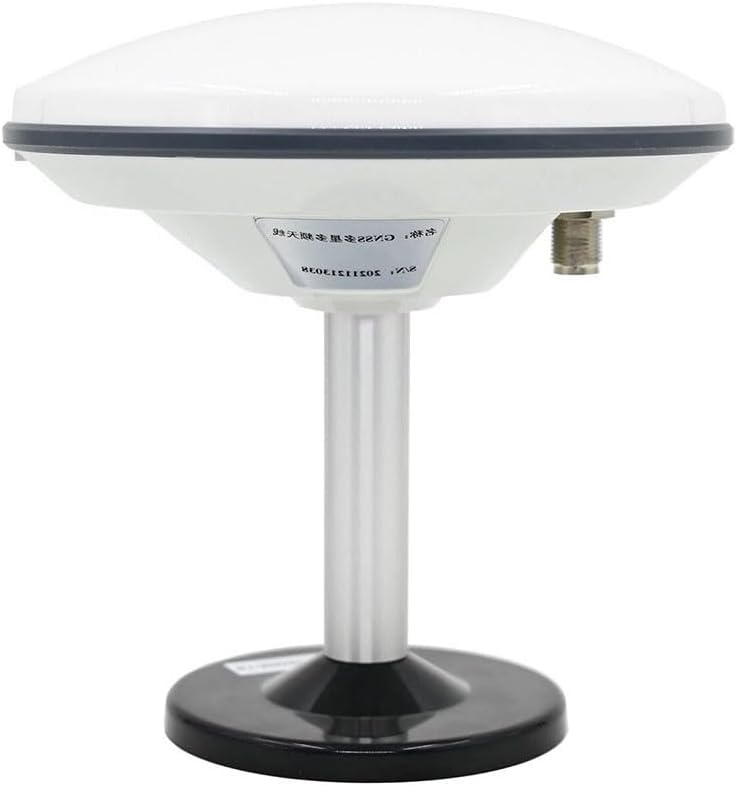

GNSS GPS GLONASS BDS for Galileo High-Gain Antenna L1 L2 Multi-Band RHCP IPX67 Waterproof ABS Construction Magnetic Base 5m Signal Cable Compatible with AG15 AG25 (TNC-TNC)

Features:* A high-precision GNSS antenna that supports the four major global navigation satellite systems of GPS, GLONASS, BDS and for Galileo, and supports GPSL1, L2, GLONASS, G1, G2, Beidou B1, B2, B3 and for Galileo E1, E5b. The antenna has the characteristics of high gain, good gain at low elevation angles, large circular polarization angle, and stable phase center. It is suitable for high-precision mapping and is widely used in automated agriculture, geodesy, road construction, surveying, dock container operations and other occasions. The new GO100 adopts high-strength ABS shell and waterproof design, which can greatly extend the service life of the antenna.* The antenna part adopts a multi-feed point design to for ensure that the phase center coincides with the geometric center, minimizing the measurement error of the antenna;* The antenna unit has high gain, wide beam pattern, good signal reception at low elevation angles, and can still search for satellites normally under strong obstruction;* High and low temperature resistance, waterproof and dustproof, and anti-obstruction design provide for protection for the antenna to work long-term in the field.Specifications:Part name: GNSS antennaMaterial: engineering plastic + anti-Uv + metalInterface: TNC-SMA, TNC-TNC, TNC-BNC (optional)Color: as shown in the figureWorking frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 for GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna gain: ≤3dBPhase center error: ≤2mmLow noise specifications；For LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+15VWorking current: ≤45mAAntenna size (mm): Ф150mm×63.7mmWeight (g): 680gWorking environment；Working temperature (℃): -40℃ ~+70℃Storage temperature (℃): -55℃ ~+85℃Waterproof level: IPX67Package contents:1 x GNSS antenna1 x magnetic base1 x 5m signal cable

• [COMPREHENSIVE GNSS SUPPORT] This high-precision GNSS antenna supports GPS, GLONASS, BDS, and systems, ensuring accurate positioning across various applications such as automated agriculture, surveying, and geodesy.
• [ROBUST DESIGN] Constructed from ABS material with a waterproof design, this antenna is built to withstand harsh environmental conditions while extending its service life.
• [MINIMIZED MEASUREMENT ERRORS] The multi-feed point design aligns the phase center with the geometric center, significantly reducing measurement errors for precise data collection.
• [EFFICIENT SIGNAL RECEPTION] With a wide beam pattern and excellent signal reception even at low elevation angles, this antenna maintains performance in challenging conditions.
• [SIZING REMINDER] Please compatibility by checking your specifications before purchasing.
