Multi-Band GNSS Antenna GPS Glonass BDS for Galileo AG-35H High for Precision for Receiver(TNC-SMA)

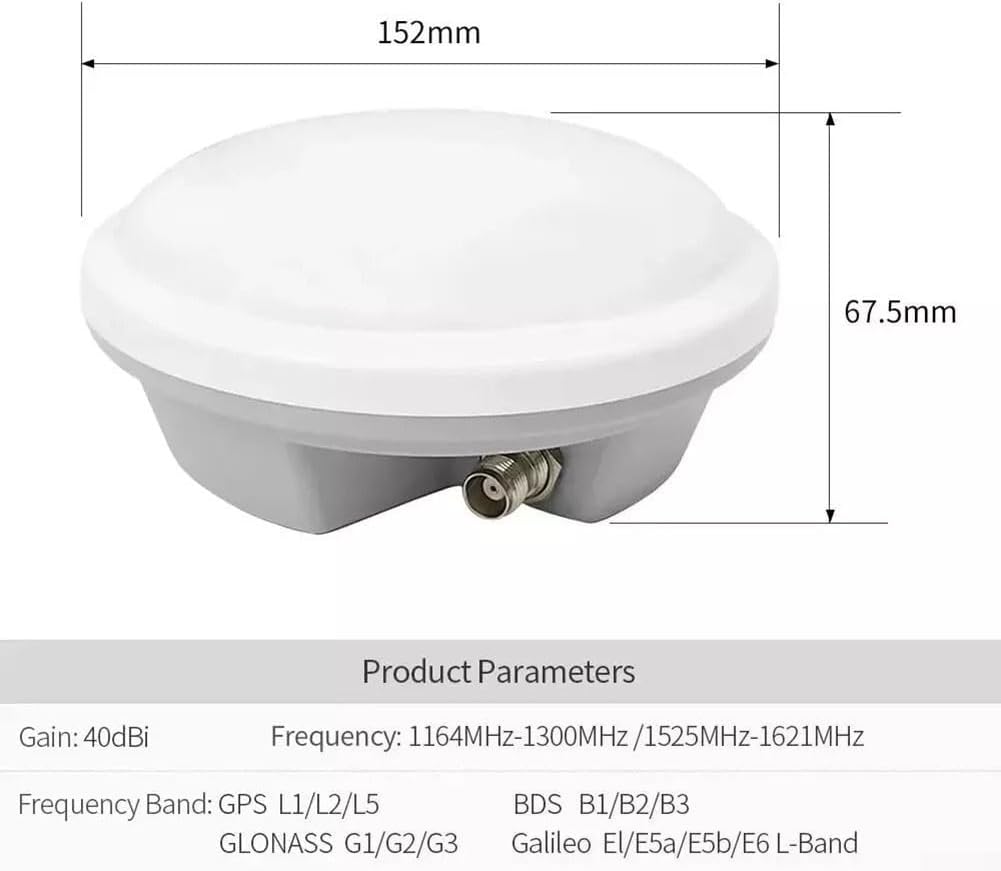

Features:* Manufactured and tested under strict quality control standards.* Stable performance and high reliability.* AG-35H GNSS Antenna Magnet GPS L1 L2 L5 for Galileo Glonass BDs Car Roof for Agricultural Mapping AG35.* Four-star full-frequency GNSS measurement antenna side outlet.Specifications:Part name: Full-frequency measurement antennaConnecting wire (optional): TNC-TNC，TNC-SMAMaterial: ABS, metalColor: whiteSize: 152mm*67.5mmAntenna structure: Four feed points, double-layer superposition structureSupported satellite signals: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L-BandMaximum gain: >5.0dBi@FCPolarization: Right-hand circular polarization (RHCP)Antenna axis ratio @ : <1.5dBHorizontal coverage angle: 360°Characteristic impedance: 50 ohmPhase center error: ≤2.0mmPhase center repeatability: ≤1.0mmWorking frequency: 1164MHZ~1300MHZ;1525MHZ~1621MHZLow noise gain: 40+2.0dB (Typ. @25°C)Installation : 5/8-11 and magnetic suction cupPackage contents:1 x full-frequency measurement antenna1 x connecting cable

• [FULL FREQUENCY GNSS ANTENNA] This AG-35H GNSS antenna features a four-star full frequency measurement capability, supporting GPS, GLONASS, BDS, and signals for precise navigation and mapping tasks.
• [STABLE PERFORMANCE] Manufactured under strict control standards, this antenna s stable performance and high reliability in various environmental conditions, making it an essential tool for professionals.
• [ CONSTRUCTION] Built with ABS and metal materials, the robust design of this antenna guarantees longevity and durability, suitable for both indoor and outdoor applications.
• [EASY CONNECTION OPTIONS] Available with optional TNC to TNC or TNC to connecting wires, offering flexibility in installation to meet diverse connectivity needs.
• [SIZING REMINDER] Please compatibility with your equipment by checking the specifications; dimensions are 152mm x 5mm.
