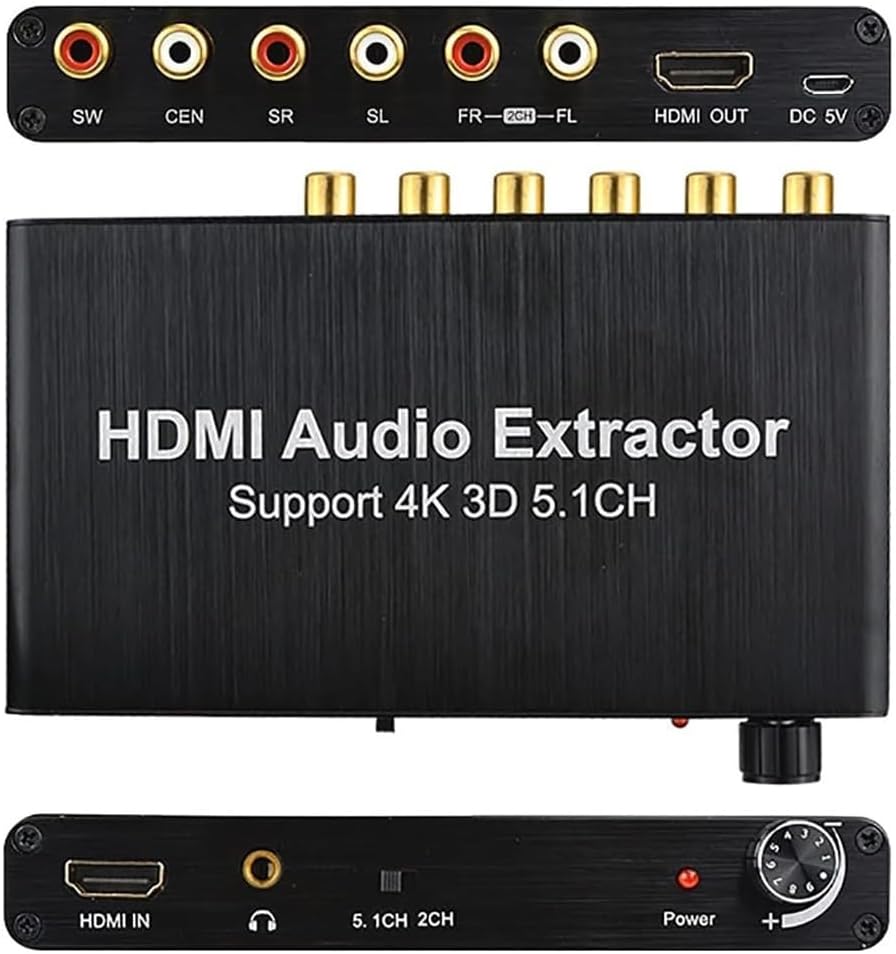

HDMI 5.1 Audio Decoder, 4K Audio Digital to Analog Converter, 3.5mm Headphone Output, Support Network Player, HDTV, Blu-ray DVD, DVD, PS3, DM500S, DM800HD, Etc

Product Description -Build-in high performance RTOS operating system and audio decoder chip; support DTS/AC-3. -Super fast start time about 3 seconds. -Input: HDMI, Output:HDMI;SW,CEN,SR,SL,FR,FL; 3.5mm Headphone Port -HDMI Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz. -Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action Specification: HDMIResolution:2160p@30Hz/ 1080p@50/60Hz/1080i/720p/1576i/480p/480i SupportVideoColorFormat:24bits/deep color 30bit,36bit AudioOutput:2CH/5.1CH Analog Audio MaxBandwidth:340MHz MaxBaudRate:10.2Gbps Input/ Output TMDS signal:0.5-1.5Volts p-p(TTL) Input/ Output DDC signal:5Volts p-p(TTL) SupportAudioFormat:MP3,AC3,DTS,WAV,WMA,AAC,ALAC,FLAC,APE,OGG,M4A Signal Noise Ratio:120db Stereo Isolation:80db(1KHZ) Channel Unbalance:0db Sampling Rate:32~192 KHz Bit Rate:16~24 Bit Response Frequency:20Hz~20KHz+/-0.7db THD:20Hz~20KHz 0.25-0.065% THD+N:1KHz 0.15% Max Power Current:420mA Power adapter format: input:AC(50/60Hz)100V-240V, Output:DC5V/2A Packing list Audio Decoder*1

• ✔ This audio decoder can auto convert HDMI input to 5.1 channel analog audio output, and support decoding Dolby AC-3/DTS(include 5.1 RAW digital audio streaming).
• ✔ HDMI to achieve the synchronization of audio signal decode, There are PASS/2.0CH/5.1CH three kinds of audio mode options, l Supports 6CH volume synchronous adjustment.
• ✔ 4k Image Quality And High-Definition Color, HDMI resolution is up to 3040×2160@ 30Hz, 4096×2160@ 30Hz, supporting 3D makes the stereoscopic image quality jump and vivid.
• ✔ Support Blu-Ray 3d, HDMI device definition through 3D format and resolution, realizes the standardization of 3D system output and input scores, and enjoys the cinema effect.
• ✔ High Compatibility, Suitable for HDMI devices, such as computers, set-top boxes, high-definition players, PS3/PS4 and other devices to connect with real devices and functional audio.
